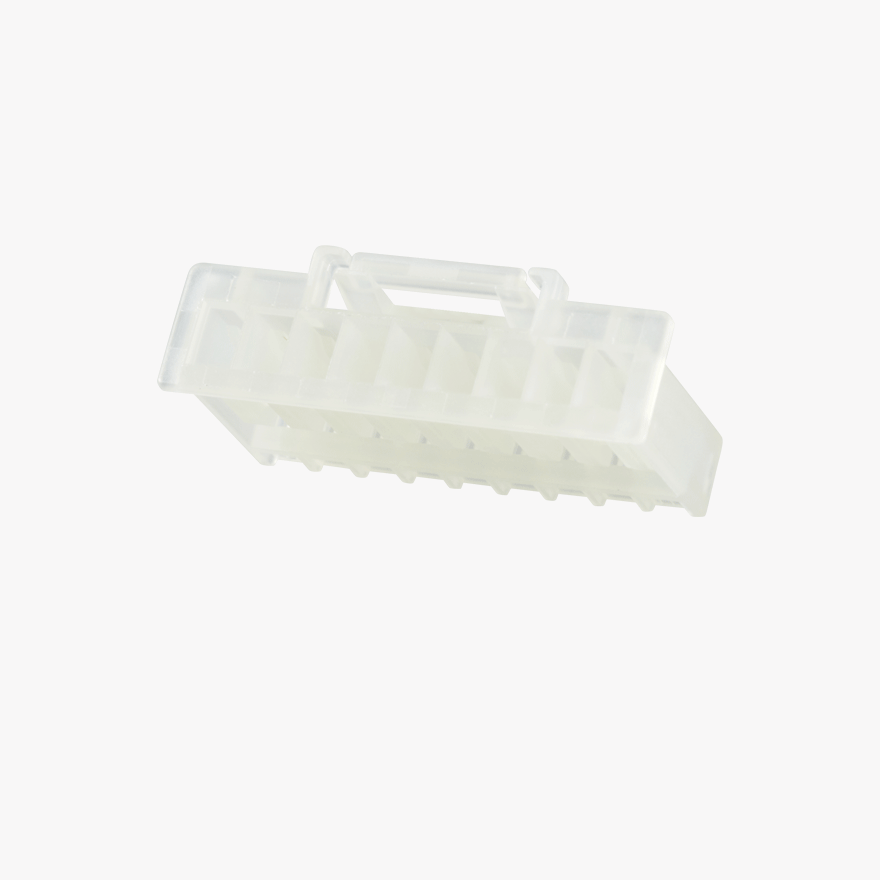

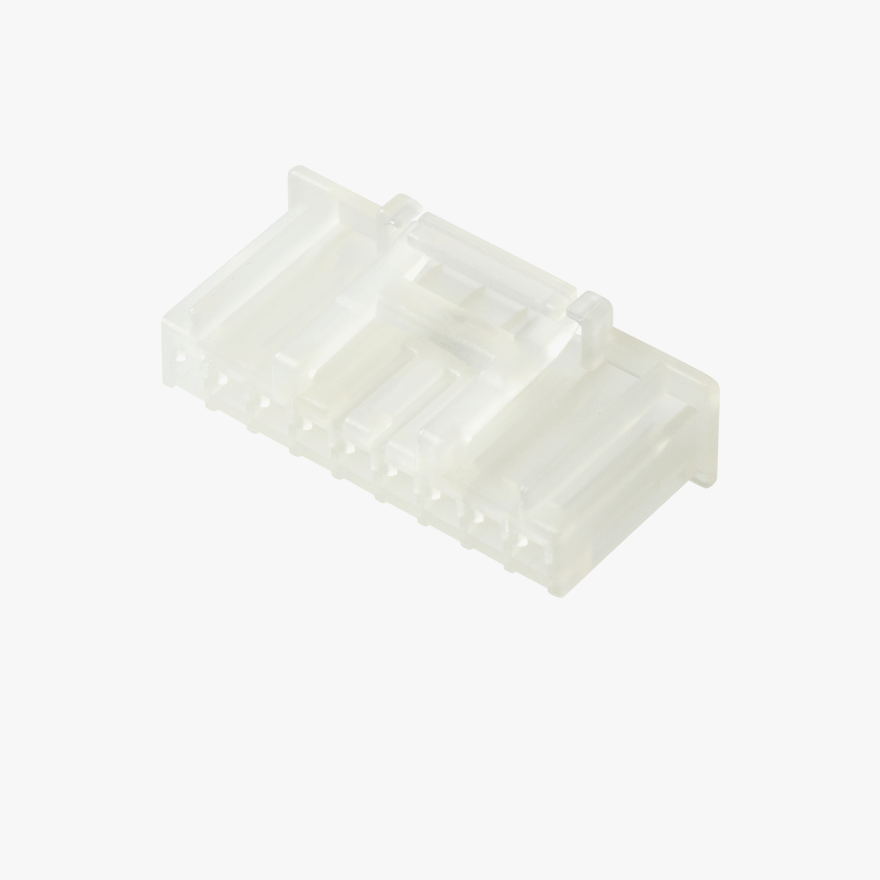

KH1600006-10

020 Small Blistering Less 9Pin Female Connector Natural

PRODUCT DESCRIPTION

  • The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
  • The terminal pitch of this connector is 2.0mm
  • This product is smaller than 020 Series and excellent space utilization
  • Reliability Test Specifications : ES91500-03, GMW3191

Technical Details

  • Pitch(mm) 2.0
  • Gender Female Connectors
  • Connector Style
  • Number of Positions 9
  • Current Rating(A) 3
  • Contact Resistance
    (MΩ (Max.))
    30
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    ES91500-03, GMW3191
  • Housing Material PA66-GF15
  • Housing Colour Natural
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    6.40
  • Connector Size width
    (mm)
    20.00
  • Connector Size length
    (mm)
    9.10
  • Mated Size height
    (mm)
  • Mated Size width
    (mm)
  • Mated Size length
    (mm)
  • FILE NAME EXTENSION UPDATED DATE
  • KH1600006-10_2D PDF 01/2023 Download
  • KH1600006-10_3D STEP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-03_PVT PDF 02/2023 Download
  • GMW3191_PVT PDF 02/2023 Download
