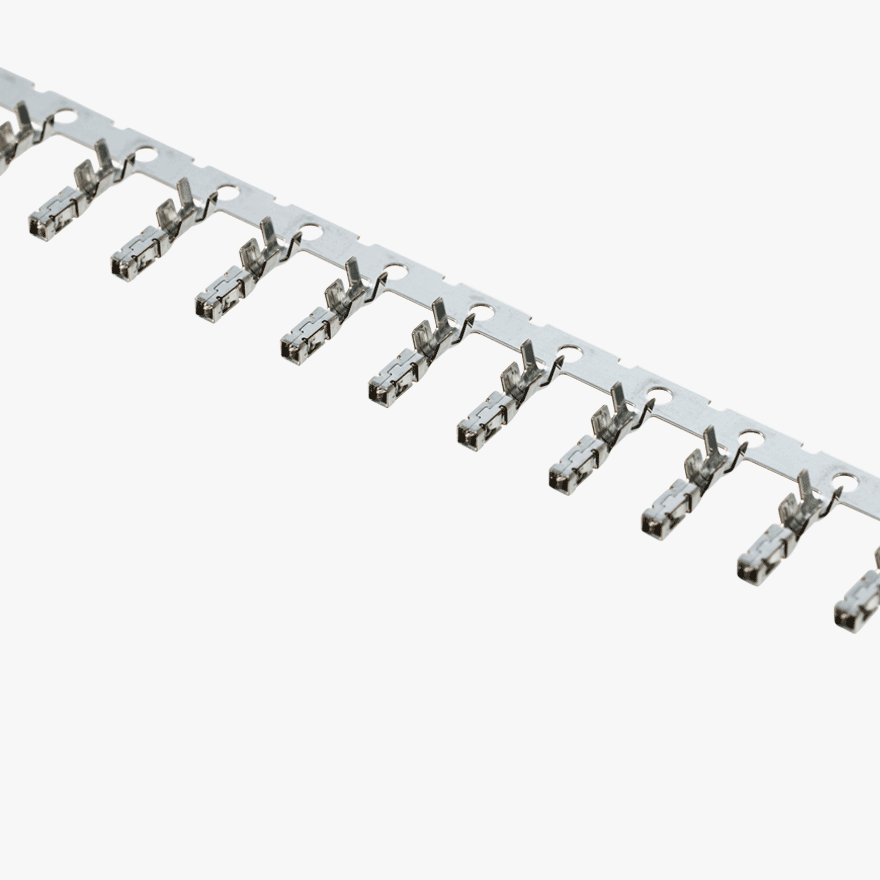

KH1400004-31
020 Small Blistering Less Female AU Terminal
PRODUCT DESCRIPTION
- The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
- The terminal pitch of this connector is 2.0mm
- This product is smaller than 020 Series and excellent space utilization
- Reliability Test Specifications : ES91500-03, GMW3191
Technical Details
-
Pitch
(mm) - Gender Terminal
- Connector Style
- Number of Positions
-
Current Rating
(A) 3 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1,000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-03, GMW3191
- Housing Material
- Housing Colour
- Terminal Material Copper Alloy
-
Housing Material UL
Rating
-
Connector Size height
(mm) 1.90 -
Connector Size width
(mm) 1.50 -
Connector Size length
(mm) 7.80 -
Mated Size height
(mm) 1.9 -
Mated Size width
(mm) 1.5 -
Mated Size length
(mm) 7.8
- FILE NAME EXTENSION UPDATED DATE
- KH1400004-31_2D PDF 01/2023 Download
