BtoB connectors with a New Ez Mating™ Design Technology
INTRODUCTION
UJU solves the challenges of developing compact technologies by researching and offering customized solutions for engineers. This has led to the creation of a 4-Row product that combines technology and meets the demand for lighter and smarter devices in ever tighter design spaces.
FEATURES
& ADVANTAGES
[ Experience the freedom of space with UJU technology ]
– Excellent Space Saving Solution
– Narrower 1.9mm width – 5.3% smaller
– Full Dual-Contact
– Bellows Type Contact Structure
– Power 4.0A/end cap – 4 contact reliability
– Signal 0.3A/pin

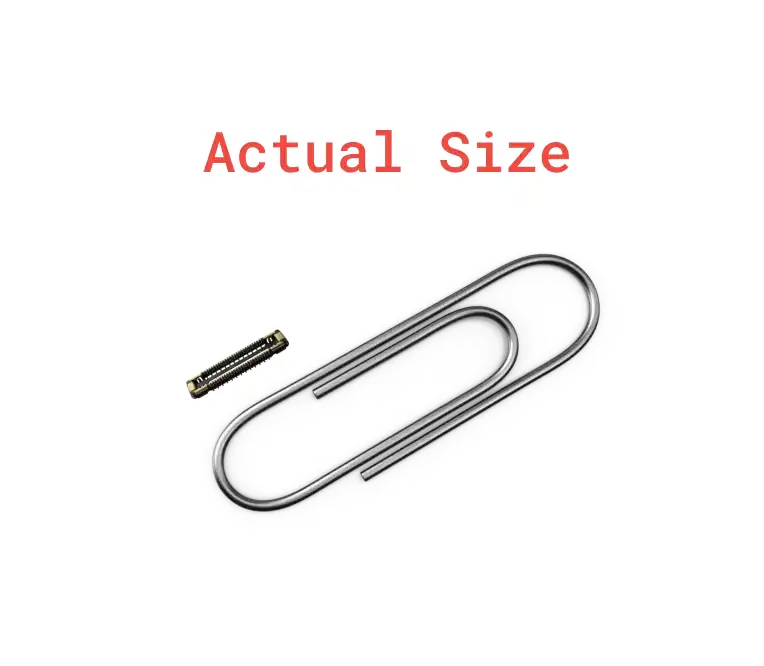

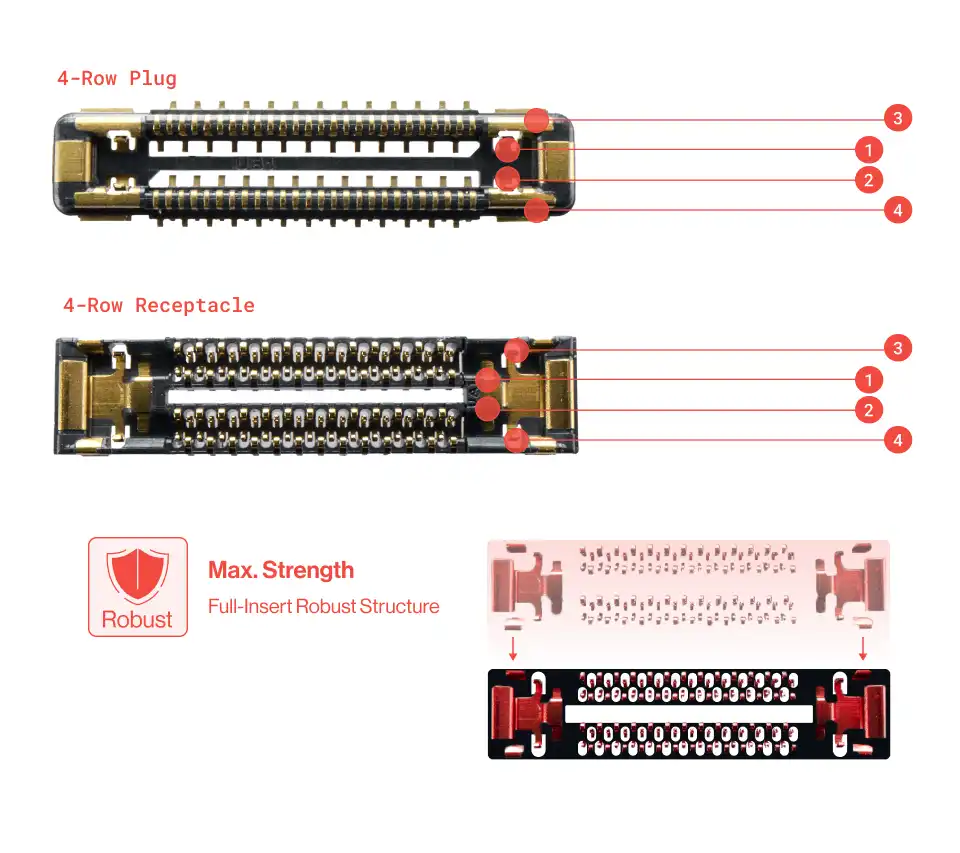

– Full-Insert-molded, Robust Structure
– Easy matching between products.
Pitch Size
0.175mm
High Current
4.0A
Mating Size
Width – 1.90mm
Height – 0.60mm
Pin & Mating Length
80Pin – Length 10.83mm
64pin – Length 9.43mm
52pin – Length 8.38mm
44pin – Length 7.68mm
32pin – Length 6.63mm
SPACE SAVINGS

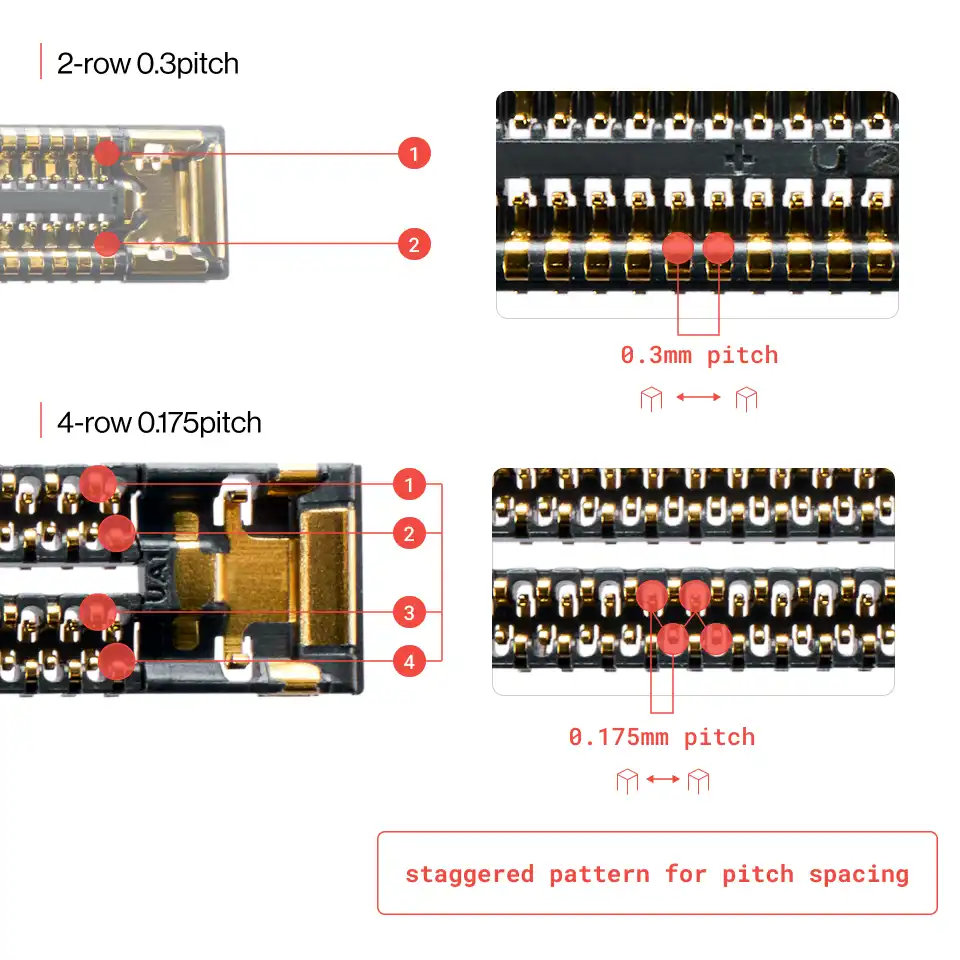

The design of the connector has been transformed into a four-row array. This innovative redesign reduces pitch by more than 40%. A compact connector was developed without compromising performance. Our BtoB connectors are not only more compact but also smarter. The signal contacts in the connector are staggered, reducing the pitch even further to an impressive #0.175 mm pitch. This unique design guarantees excellent connectivity even on the most compact IT devices.
SPACE-CONSCIOUS DESIGN

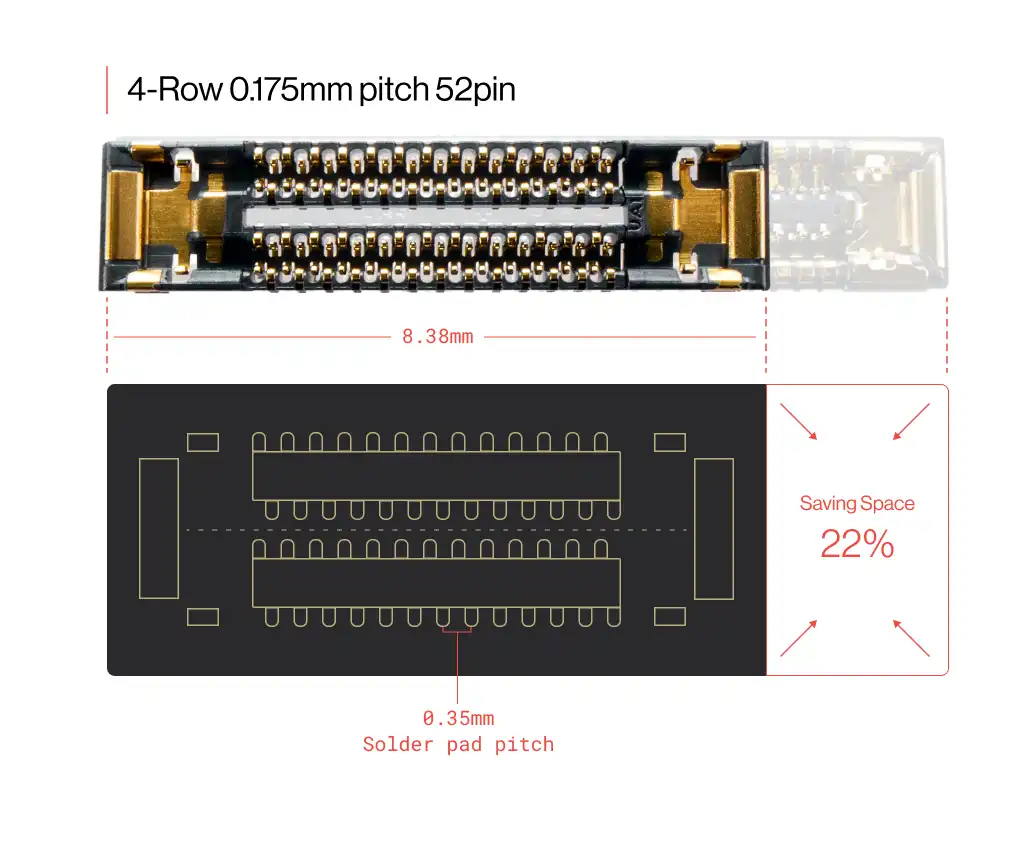

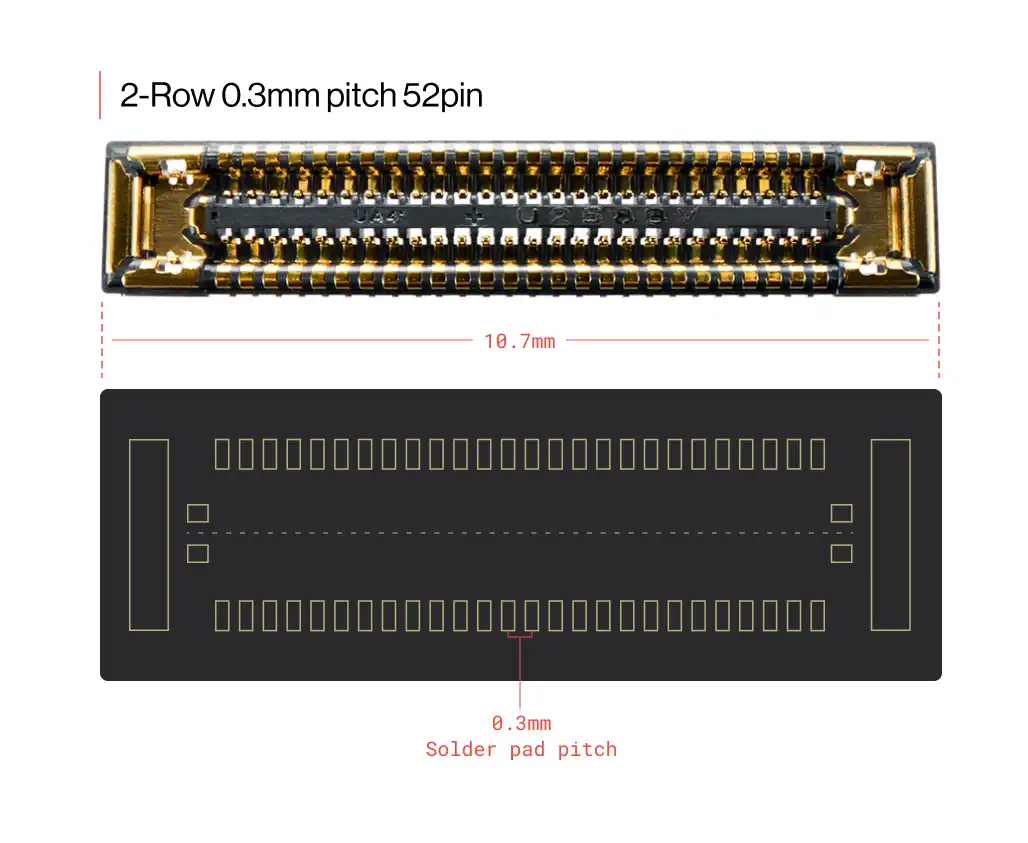

The #4-Row connector reduces the SMT footprint by 22 percent compared to a 0.3 mm pitch product. A reduced footprint also means less wasted space and improves the efficiency of your designs.
IMPROVED WORKABILITY
We have received feedback from customers that it is difficult to match parts when assembling products. In response, UJU developed a new Ez Mating™ design technology for operating efficiency.
EZ Mating™ Contact System
Ez Mating™ design technology brings several benefits that make it a game changer in product assembly
- Increased assembly speed: With parts that naturally fit together, the assembly speed is significantly boosted.
- Reduced error rate: The Ez Mating™ technology reduces the chances of mismatching parts, thereby reducing errors.

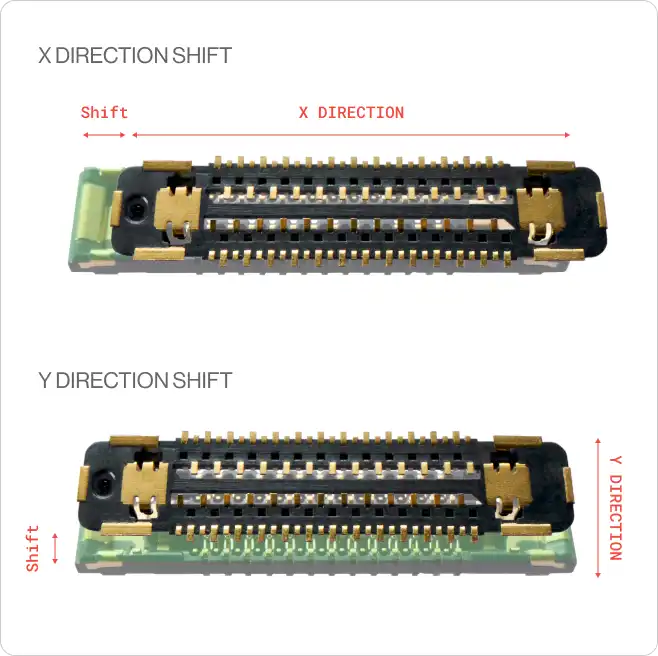

SHIFT MATING
PRODUCT RELIABILITY
& APPLICATION EXPANSION
UJU increases the number of power contacts from two to four to enable more reliable matching. Furthermore, by increasing the output power from 3.0A to 4.0A, this product can be used in more devices. The concept of limited space and complex environments that were previously difficult to implement is now fully possible.
POWER CONTACT

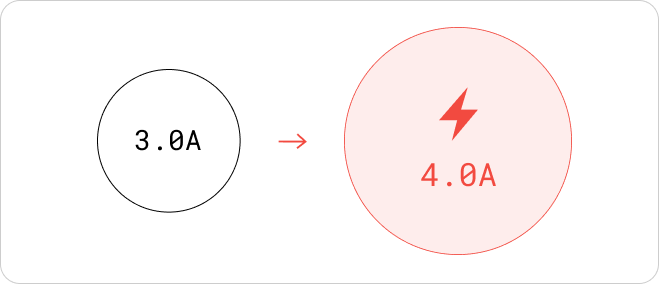

Power 3.0A → 4.0A
