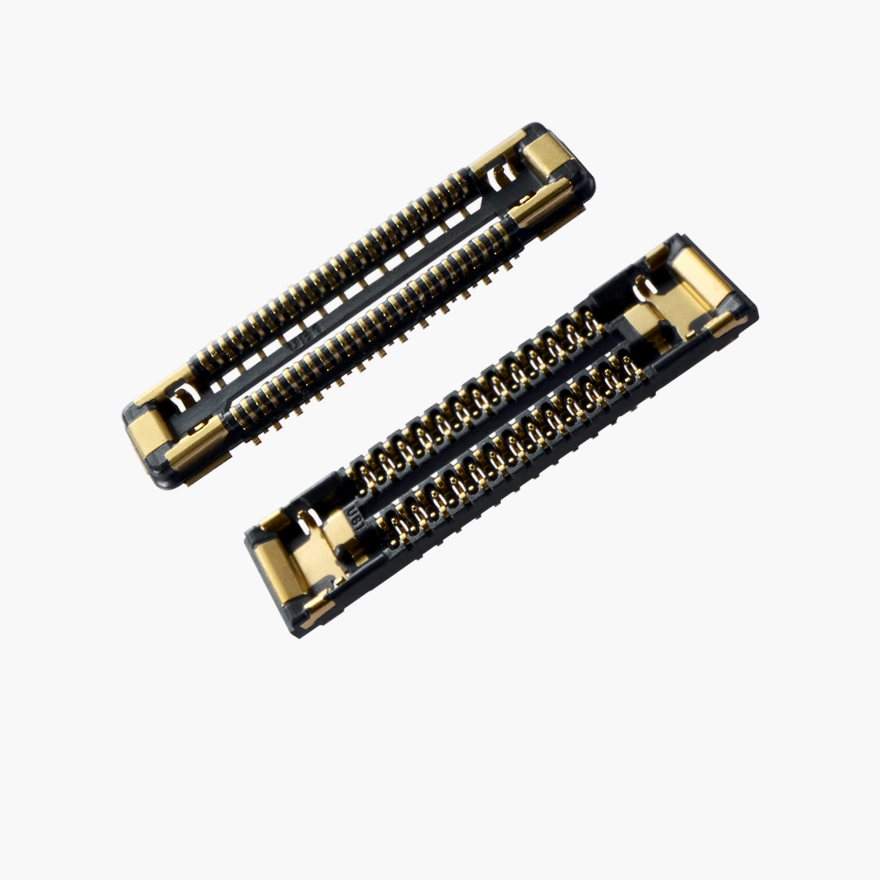

BF017-I52B-C06/BM017-I52B-C06
4-Row – 0.175mm pitch 52pin 0.6Height plug & receptacle

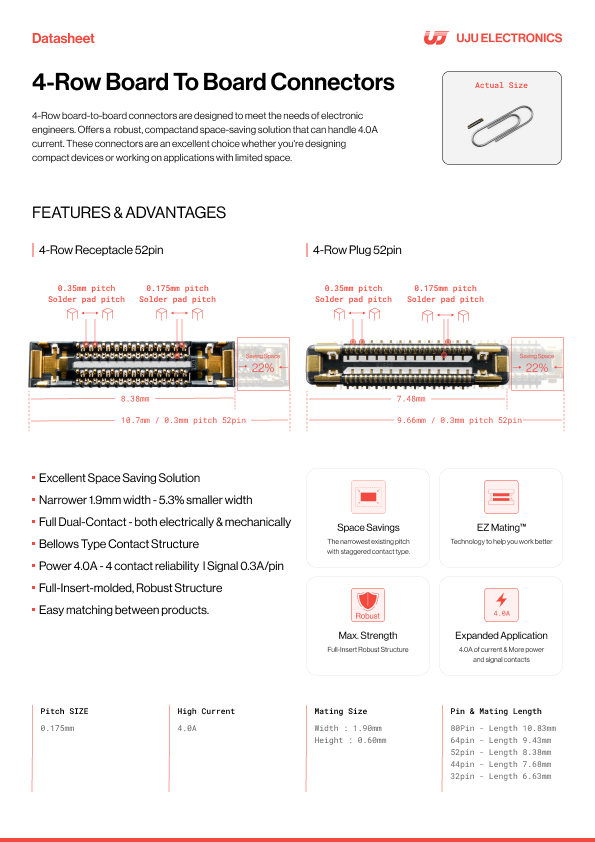

PRODUCT DESCRIPTION
- Excellent Space Saving Solution
- Narrower 1.9mm width – 5.3% smaller width
- Full Dual-Contact – both electrically & mechanically
- Bellows Type Contact Structure
- Power 4.0A/end cap – 4 contact reliability l Signal 0.3A/pin
- Full-Insert-molded, Robust Structure
- Easy matching between products.
Technical Details
-
Pitch
(mm) 0.175 - Gender
- Connector Style
- Number of Positions 52
-
Current Rating
(A) Signal 0.3A/Pin & Fitting nail 4.0A/Pin -
Contact Resistance
(MΩ (Max.)) Signal 50mΩ [Max.] & Fitting nail 30mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 50MΩ [Min.] -
Dielectric Strength
(AC V) 250V AC(RMS) -
Temperature Range
(°C) -35℃ ~ 85℃
- Housing Material LSCP
- Housing Colour BLACK
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 0.60 -
Connector Size width
(mm) 1.90 -
Connector Size length
(mm) 8.38 -
Mated Size height
(mm) 0.60 -
Mated Size width
(mm) 1.90 -
Mated Size length
(mm) 8.38
