KH1900054-21

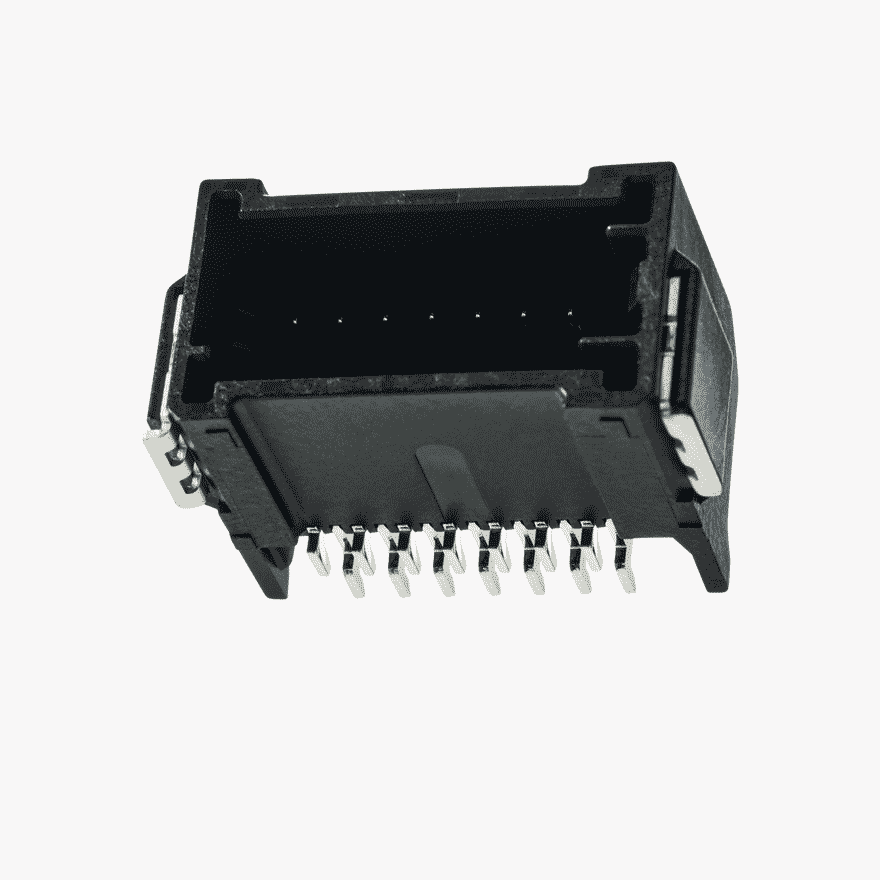

020 Double Lock Two Row 14Pin Male Connector Horizontal Black SMT type

PRODUCT DESCRIPTION

The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
The terminal pitch of this connector is 2.0mm
It has applied the TPA of side type for the assemble workability
Pre-assembled TPA for secondary lock
Reliability Test Specification : ES91500-00, ES91500-03


Technical Details

  • Pitch(mm) 2.0
  • Gender Male Connectors
  • Connector Style Horizontal
  • Number of Positions 14
  • Current Rating(A) 5
  • Contact Resistance
    (MΩ (Max.))
    30
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    ES91500-00, ES91500-03
  • Housing Material PBT-GF10
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    11.95
  • Connector Size width
    (mm)
    23.15
  • Connector Size length
    (mm)
    16.0
  • Mated Size height
    (mm)
    11.95
  • Mated Size width
    (mm)
    23.5
  • Mated Size length
    (mm)
    18.6
  • FILE NAME EXTENSION UPDATED DATE
  • KH1900054-21_2D_pdf PDF 01/2023 Download
  • KH1900054-21_3D_stp STP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-00_PVT PDF 02/2023 Download
  • ES91500-03_PVT PDF 02/2023 Download
