KH1900044-10

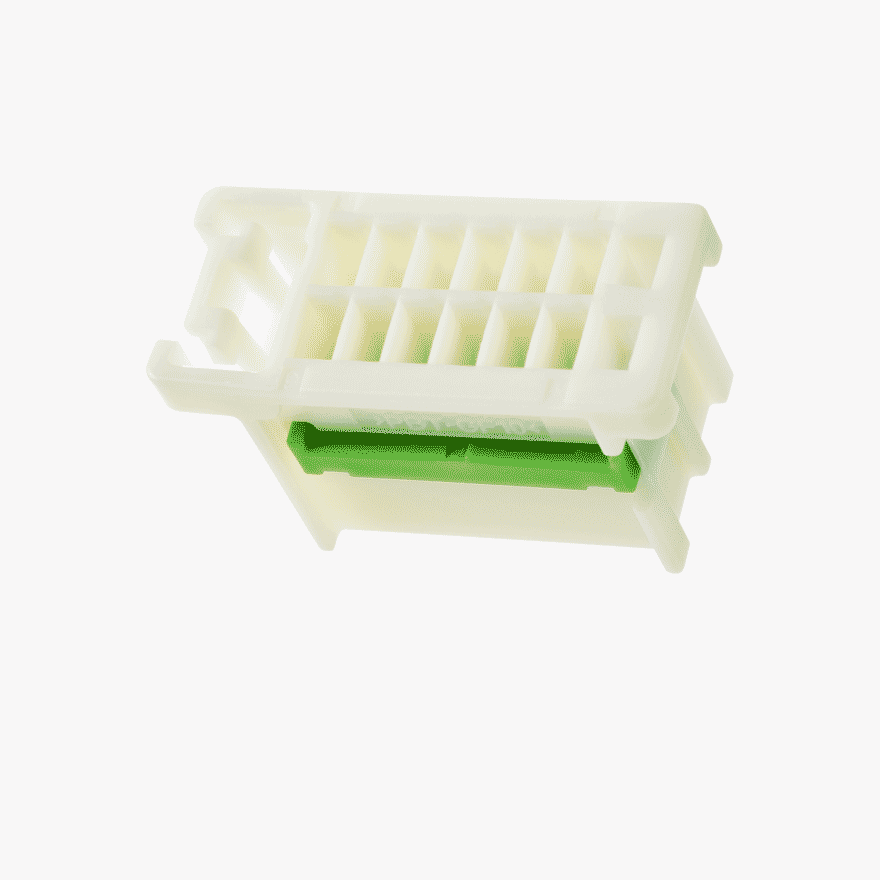

020 Double Lock 12Pin Female Connector Natural
PRODUCT DESCRIPTION
- The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
- The terminal pitch of this connector is 2.0mm
- It has applied the TPA of side type for the assemble workability
- Pre-assembled TPA for secondary lock
- Reliability Test Specification : ES91500-00, ES91500-03
Technical Details
-
Pitch
(mm) 2.0 - Gender Female Connectors
- Connector Style
- Number of Positions 12
-
Current Rating
(A) 5 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-00, ES91500-03
- Housing Material PBT-GF10
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 9.6 -
Connector Size width
(mm) 21.5 -
Connector Size length
(mm) 12.6 -
Mated Size height
(mm) -
Mated Size width
(mm) -
Mated Size length
(mm)
- FILE NAME EXTENSION UPDATED DATE
Automotive Connector / Board to Wire Connectors
020 Double Lock Female M-barrel AU Terminal
KH1700007-32
Automotive Connector / Board to Wire Connectors
020 Double Lock Female M-barrel Tin Terminal
KH1700007-22
Automotive Connector / Board to Wire Connectors
020 Double Lock Female S-barrel AU Terminal
KH1700007-30
Automotive Connector / Board to Wire Connectors
020 Double Lock Female S-barrel Tin Terminal
KH1700007-20
Automotive Connector / Board to Wire Connectors

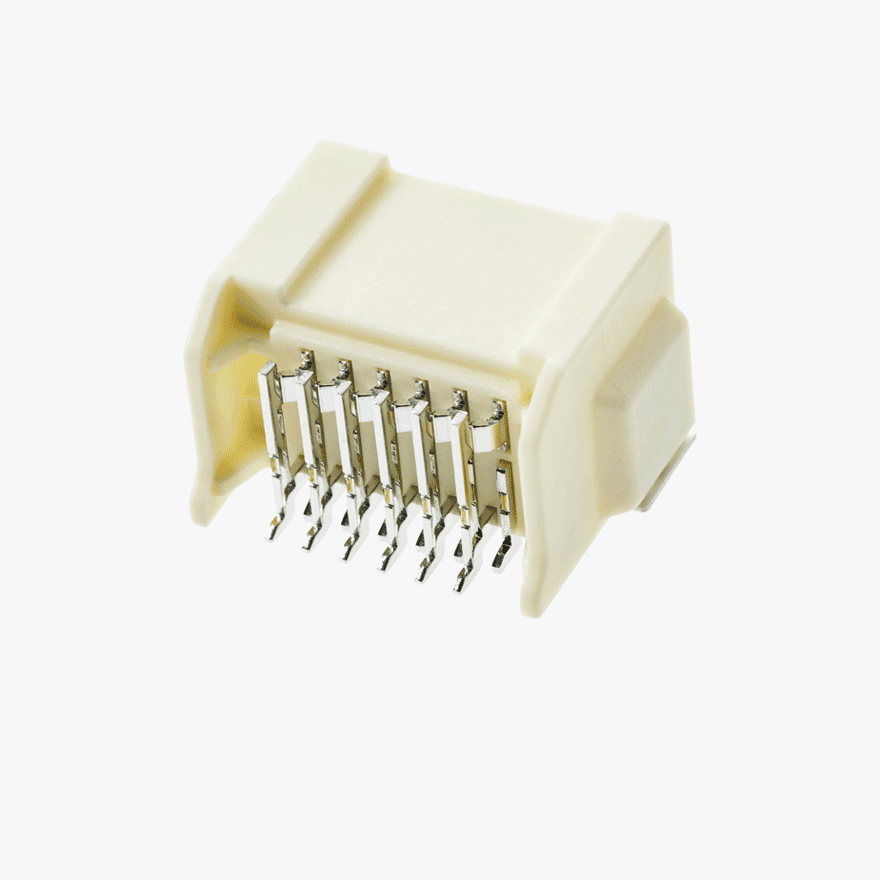

020 Double Lock Two Row 12Pin Male Connector Horizontal Natural SMT type
