KH1700007-22

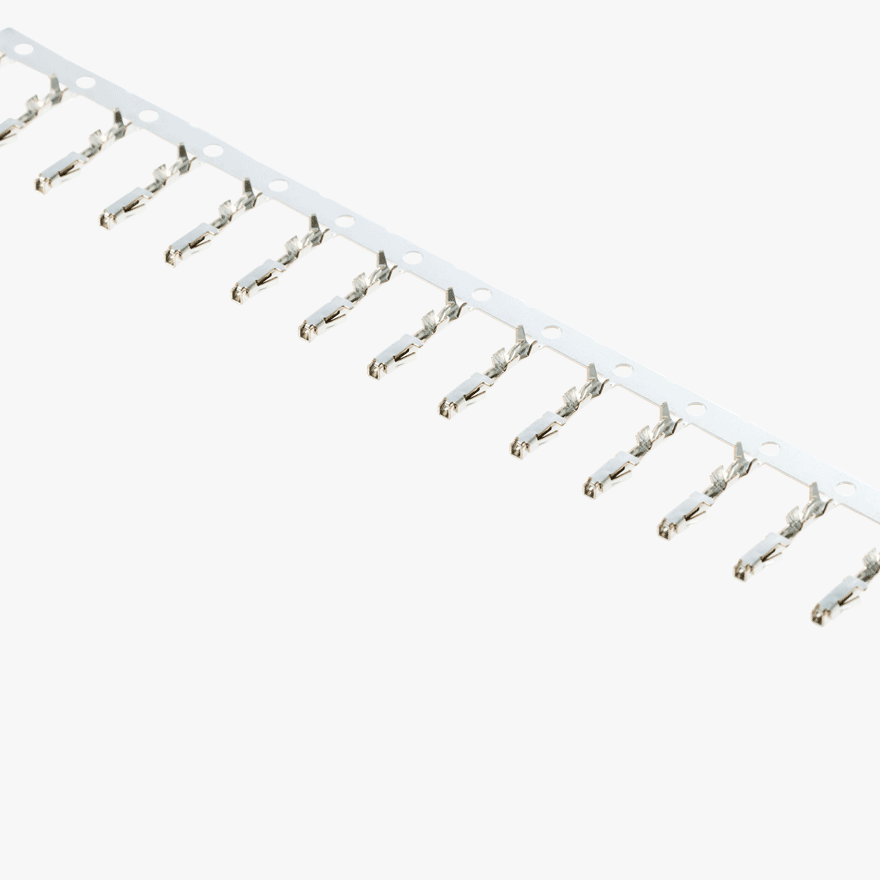

020 Double Lock Female M-barrel Tin Terminal
PRODUCT DESCRIPTION
Technical Details
-
Pitch
(mm) - Gender Terminal
- Connector Style
- Number of Positions
-
Current Rating
(A) 5 -
Contact Resistance
(MΩ (Max.)) 10 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1,000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-00, ES91500-03
- Housing Material
- Housing Colour
- Terminal Material Copper Alloy
-
Housing Material UL
Rating
-
Connector Size height
(mm) 1.50 -
Connector Size width
(mm) 2.10 -
Connector Size length
(mm) 10.50 -
Mated Size height
(mm) -
Mated Size width
(mm) -
Mated Size length
(mm)
- FILE NAME EXTENSION UPDATED DATE
- KH1700007-22_2D_pdf PDF 01/2023 Download
