KH1200019-10

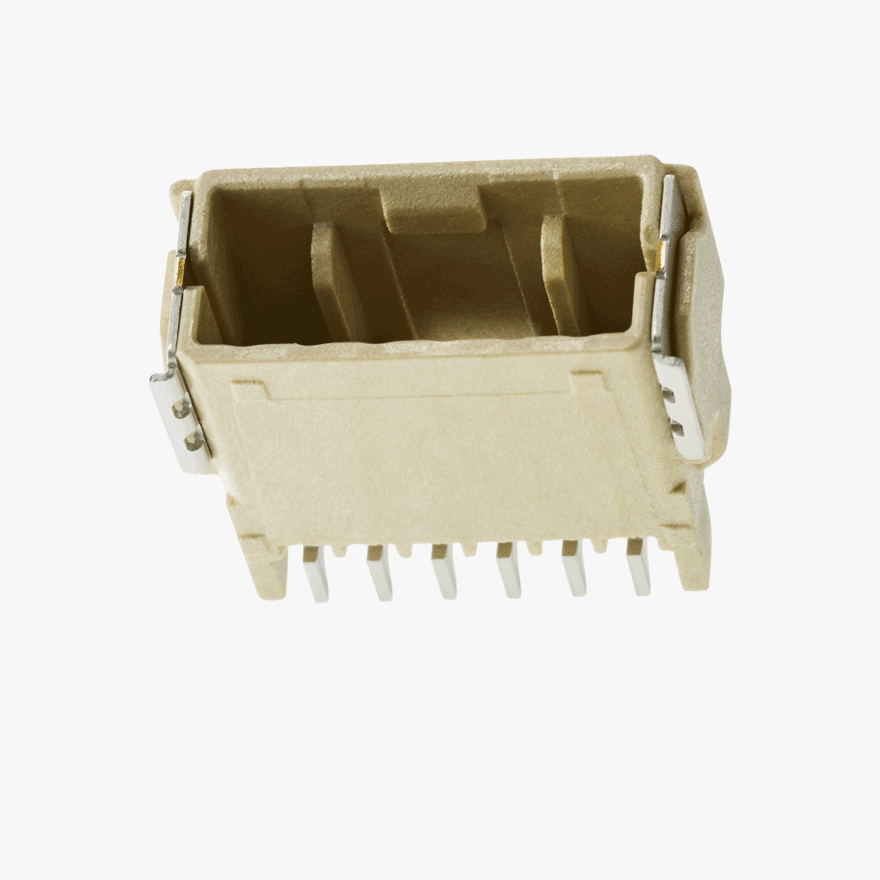

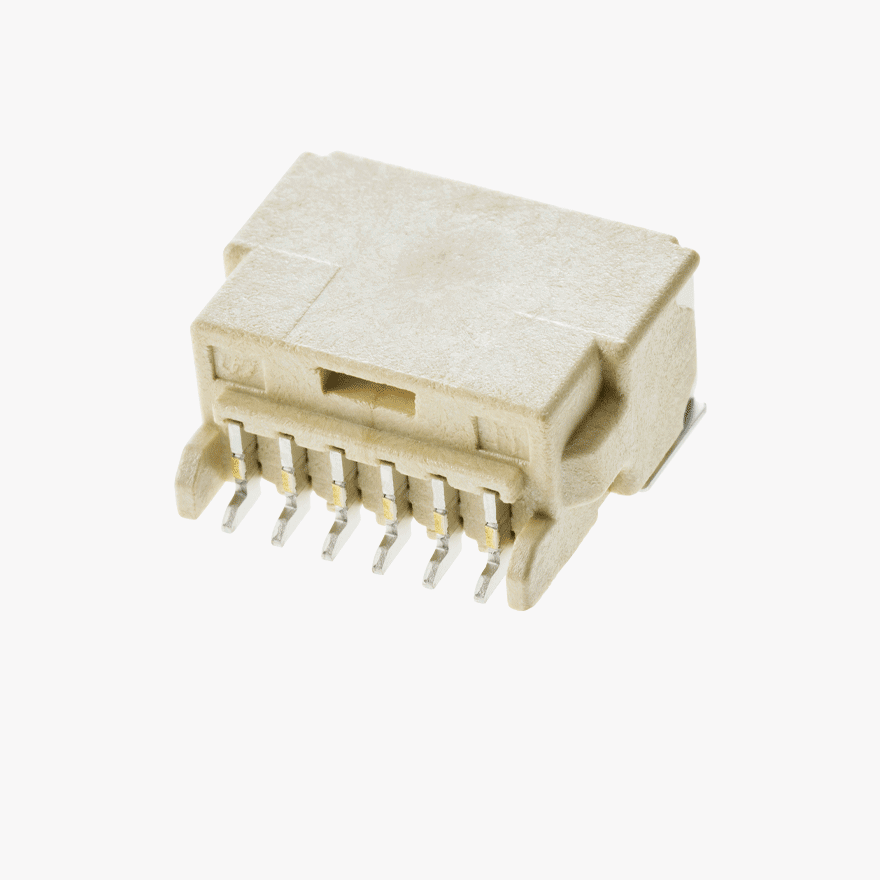

020 6Pin Male Connector Horizontal Natural SMT type

PRODUCT DESCRIPTION

  • The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
  • The terminal pitch of this connector is 2.0mm
  • Reliability Test Specifications : ES91500-03, GMW3191

Technical Details

  • Pitch(mm) 2.0
  • Gender Male Connectors
  • Connector Style Horizontal
  • Number of Positions 6
  • Current Rating(A) 3
  • Contact Resistance
    (MΩ (Max.))
    30
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    ES91500-03, GMW3191
  • Housing Material LCP
  • Housing Colour Natural
  • Terminal Material
  • Housing Material UL
    Rating
    V0
  • Connector Size height
    (mm)
    7.20
  • Connector Size width
    (mm)
    16.00
  • Connector Size length
    (mm)
    13.20
  • Mated Size height
    (mm)
    7.65
  • Mated Size width
    (mm)
    16.00
  • Mated Size length
    (mm)
    16.20
  • FILE NAME EXTENSION UPDATED DATE
  • KH1200019-20_2D_pdf PDF 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-03_PVT PDF 02/2023 Download
  • GMW3191_PVT PDF 02/2023 Download
