KH1200015-10
020 3Pin Female Connector Natural
PRODUCT DESCRIPTION
- The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
- The terminal pitch of this connector is 2.0mm
- Reliability Test Specifications : ES91500-03, GMW3191
Technical Details
-
Pitch
(mm) 2.0 - Gender Female Connectors
- Connector Style
- Number of Positions 3
-
Current Rating
(A) 3 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-03, GMW3191
- Housing Material PBT-GF10
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 7.00 -
Connector Size width
(mm) 9.90 -
Connector Size length
(mm) 12.40 -
Mated Size height
(mm) -
Mated Size width
(mm) -
Mated Size length
(mm)
- FILE NAME EXTENSION UPDATED DATE
Automotive Connector / Board to Wire Connectors
020 3Pin Male Connector Horizontal Natural SMT type
KH1200013-10
Automotive Connector / Board to Wire Connectors

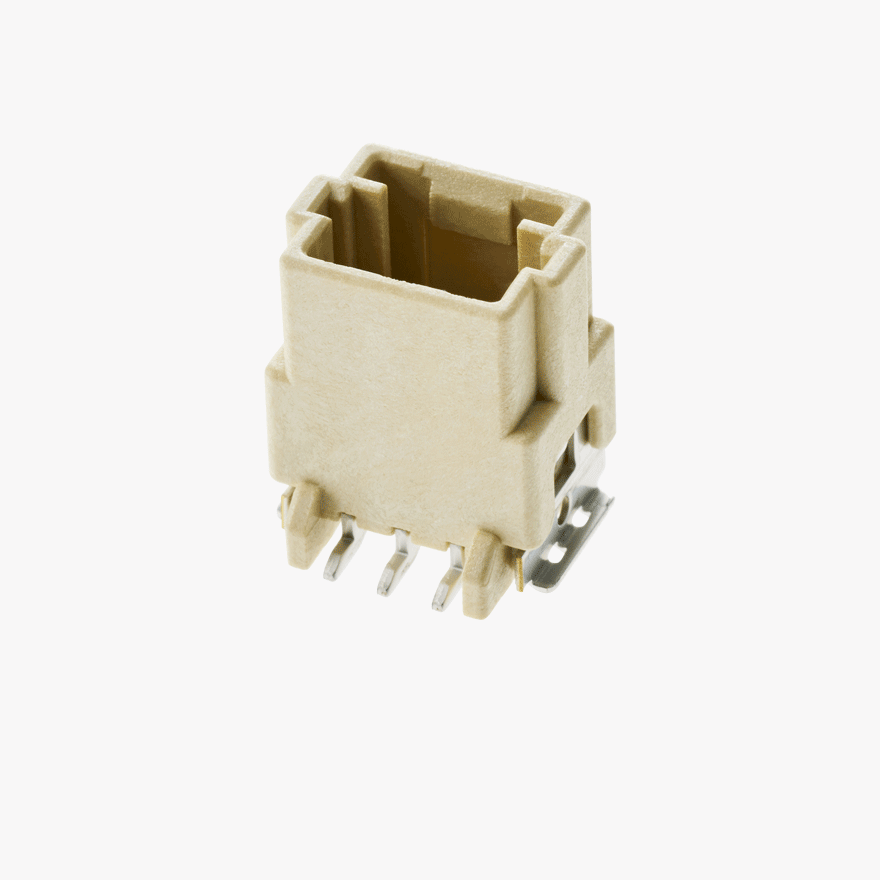

020 3Pin Male Connector Vertical Natural SMT type
