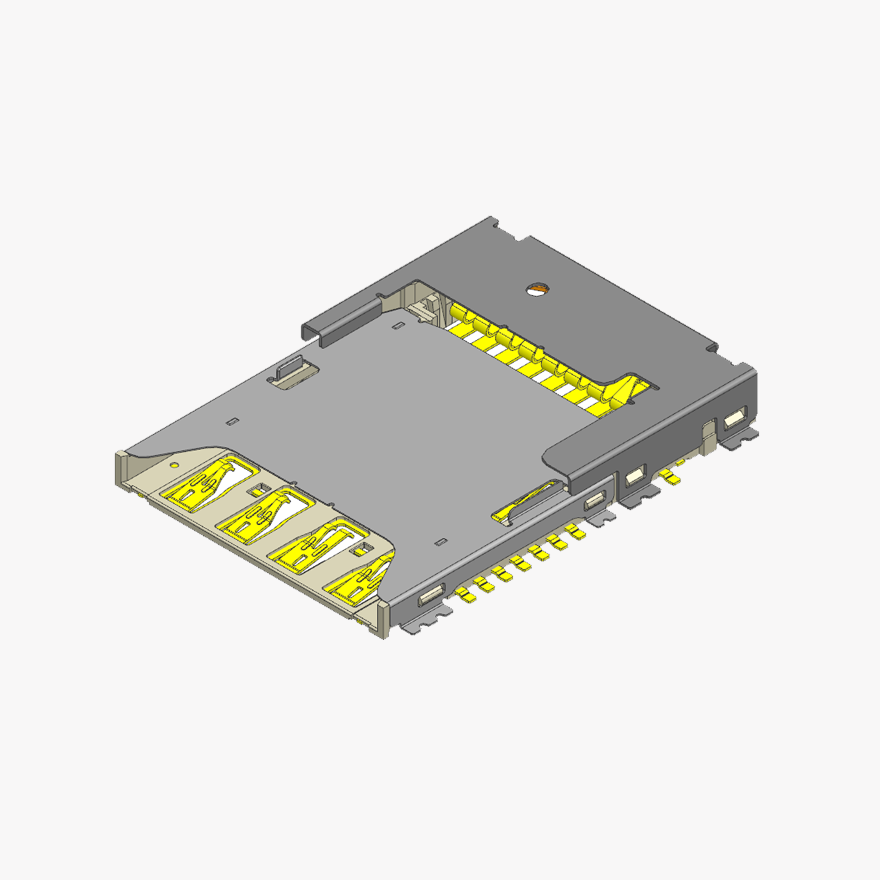

DS110-C17B-C23-A
UCS2 Combo micro SD/SIM
PRODUCT DESCRIPTION
- Micro-SIM / Micro-SD Combo Socket
- SD & SIM Terminal deformation prevention structure
- Switch OFF-ON Structure
Technical Details
-
Pitch
(mm) 1.10 - Gender ETC
- Connector Style
- Number of Positions 17
-
Current Rating
(A) 5A/Pin -
Contact Resistance
(MΩ (Max.)) Micro-SD : 80mΩ [Max.] 2) & Micro-SIM : 80mΩ [Max.] & Switch : 160mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 1,000MΩ [Min.] -
Dielectric Strength
(AC V) Max 10V AC(RMS) or DC -
Temperature Range
(°C) - 40℃ ~ 85 ℃
- Housing Material LCP
- Housing Colour
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 2.28 -
Connector Size width
(mm) 18.27 -
Connector Size length
(mm) 14.10 -
Mated Size height
(mm) 2.28 -
Mated Size width
(mm) 18.27 -
Mated Size length
(mm) 14.10
