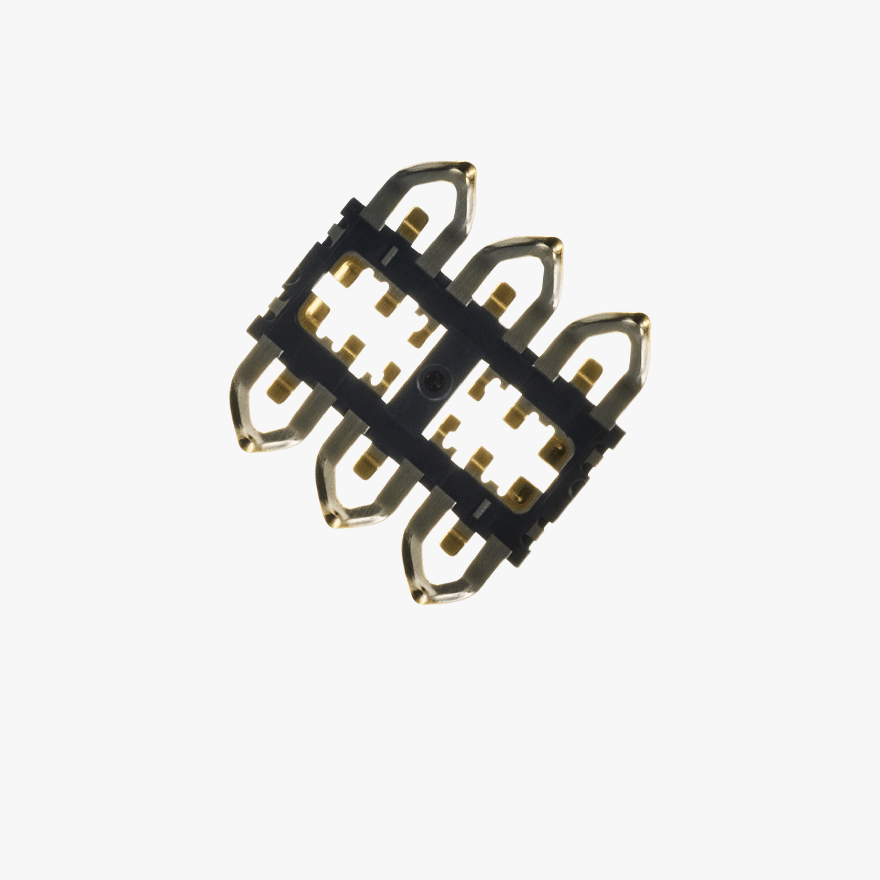

TS254-I20B-C23-B
S07 3in2 2.30Height SIM
PRODUCT DESCRIPTION
- 3in2 Stack Mold Tray Socket
- SD & SIM Terminal deformation prevention structure
- TRAY reverse insertion prevention structure
- Switch ON-OFF Structure
- All-in-one Cover & Latch
Technical Details
-
Pitch
(mm) 2.54 - Gender ETC
- Connector Style
- Number of Positions 20
-
Current Rating
(A) 0.3A/Pin -
Contact Resistance
(MΩ (Max.)) 100mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 1,000MΩ [Min.] -
Dielectric Strength
(AC V) AC 500V -
Temperature Range
(°C) -40℃ ~ 85℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 0.78 -
Connector Size width
(mm) 8.00 -
Connector Size length
(mm) 8.01 -
Mated Size height
(mm) 2.30 -
Mated Size width
(mm) 15.25 -
Mated Size length
(mm) 16.40
