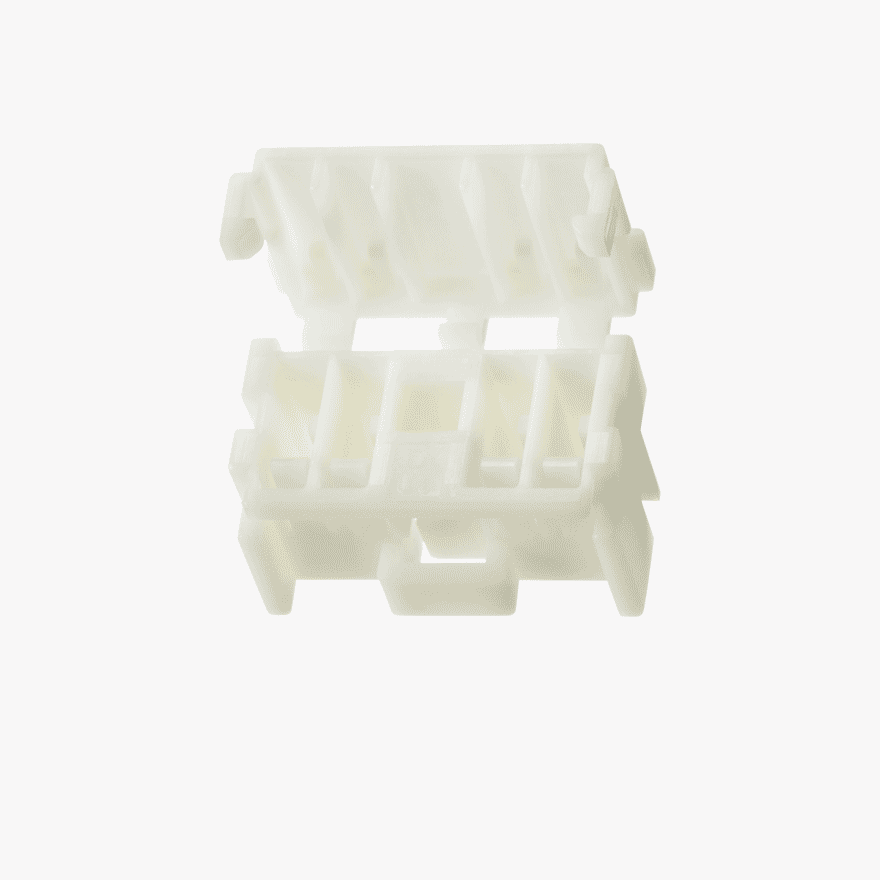

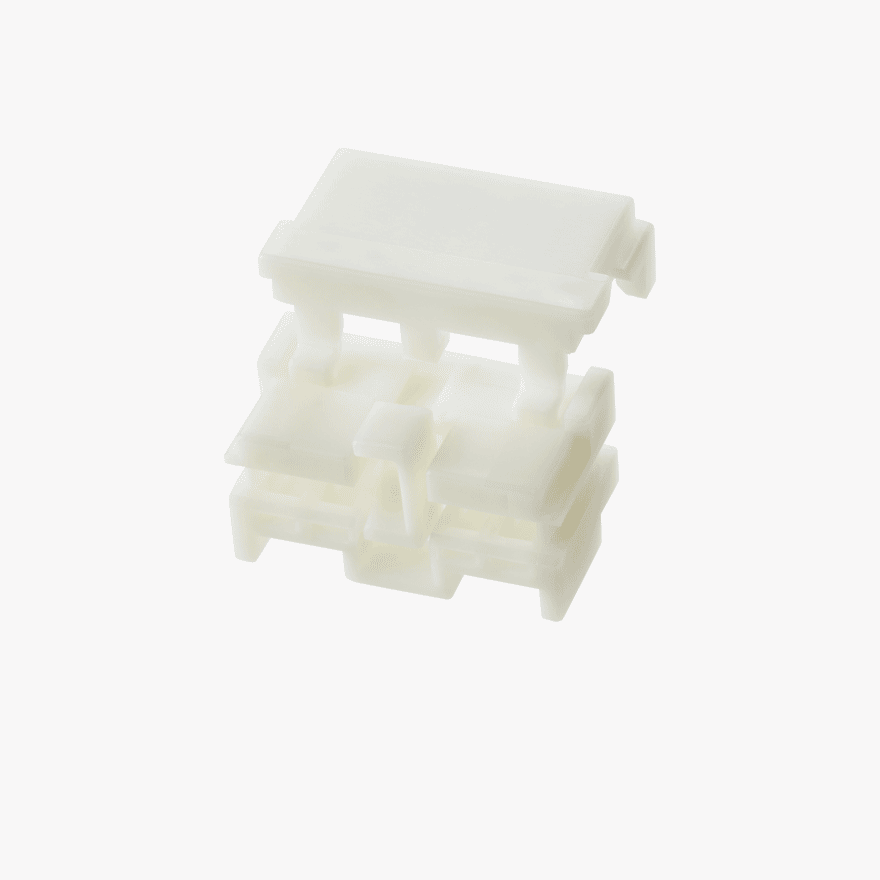

KH2000011-10

PCB Slot 4Pin Female Connector Vertical Natural

PRODUCT DESCRIPTION

  • This is used only female connector without male.
  • It is connecting the wire to board. (Slot Type)
  • The terminal pitch is 2.5mm.
  • Applicable PCB thickness is 1.6mm for Slot area
  • Optional Part for Horizontal : T/CPA
  • Reliability Test Specifications : ES91500-03, GMW3191, LV214, USCAR-2

Technical Details

  • Pitch(mm) 2.5
  • Gender Female Connectors
  • Connector Style Vertical
  • Number of Positions 4
  • Current Rating(A) 3
  • Contact Resistance
    (MΩ (Max.))
    10
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    ES91500-03, GMW3191, LV214, USCAR-2
  • Housing Material PBT
  • Housing Colour Natural
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    8.70
  • Connector Size width
    (mm)
    15.80
  • Connector Size length
    (mm)
    10.80
  • Mated Size height
    (mm)
  • Mated Size width
    (mm)
  • Mated Size length
    (mm)
  • FILE NAME EXTENSION UPDATED DATE
  • KH2000011-10_2D PDF 01/2023 Download
  • KH2000011-10_3D STEP 01/2023 Download
