KH1800053-20

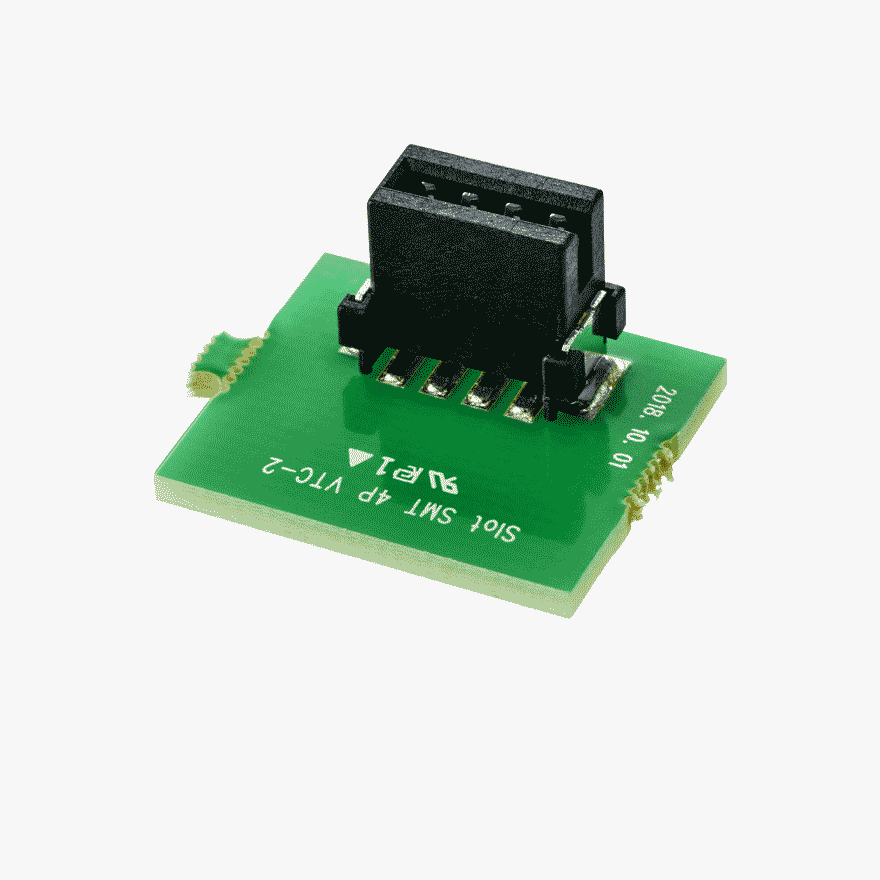

PCB Slot 4Pin Female Connector Vertical Black SMT type
PRODUCT DESCRIPTION
- PCBs can be connected by this product alone
- Applicable PCB thickness is 1.6mm for Slot area
- The terminal pitch is 2.2㎜
- Reliability Test Specifications : ES91500-03, GMW3191
Technical Details
-
Pitch
(mm) 2.2 - Gender Female Connectors
- Connector Style Vertical
- Number of Positions 4
-
Current Rating
(A) 3 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-03, GMW3191
- Housing Material PA9T-GF30
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 9.10 -
Connector Size width
(mm) 12.10 -
Connector Size length
(mm) 6.60 -
Mated Size height
(mm) -
Mated Size width
(mm) -
Mated Size length
(mm)
