PF025-B12B-N07

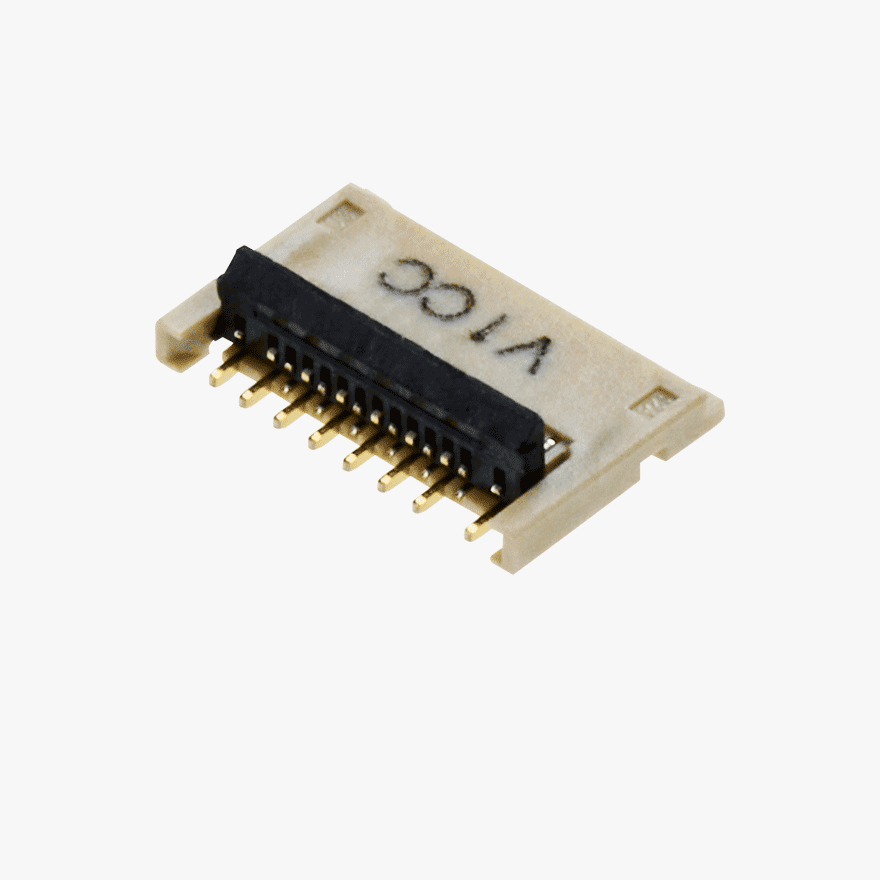

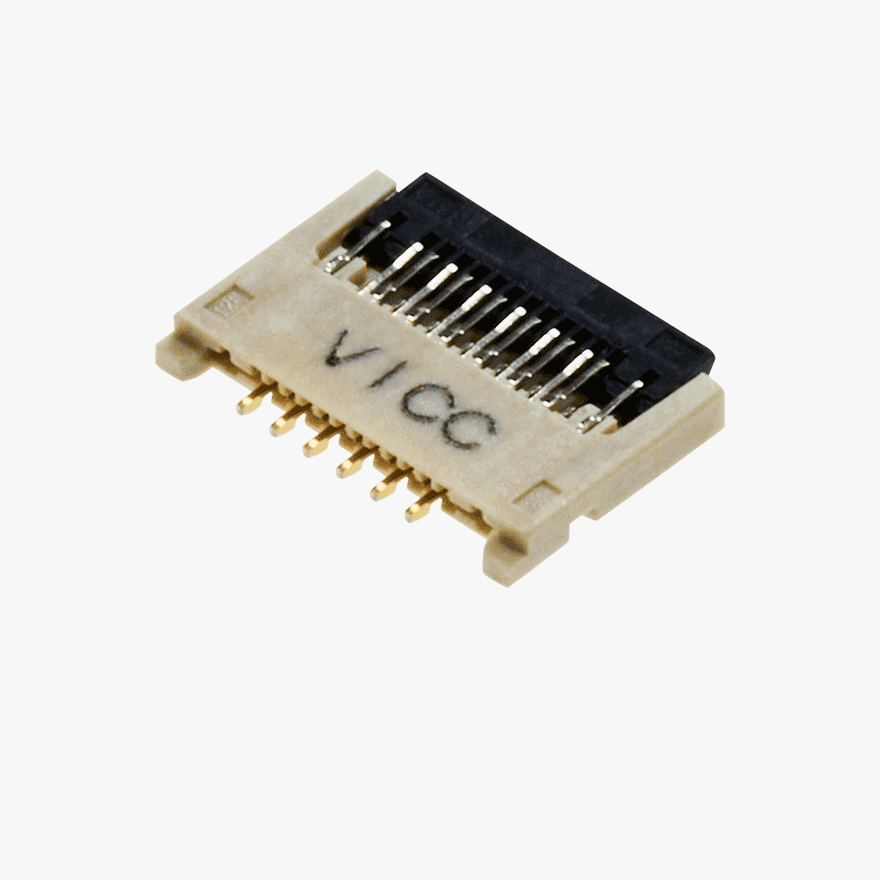

NAMU Series – 0.25Pitch 12Pin 0.7Height Connector

PRODUCT DESCRIPTION

  • 0.25mm Pitch, 0.66mm Height, Ultra narrow and compact design
  • Easy to Insert FPC and operate Actuator Back–lock system
  • High FPC Retention force with both Locking Terminal
  • Applicable for FPC thickness is 0.12±0.015mm

Technical Details

  • Pitch(mm) 0.25
  • Gender Back Flip Connectors
  • Connector Style
  • Number of Positions
  • Current Rating(A) Signal 0.2A[Max]
  • Contact Resistance
    (MΩ (Max.))
    80mΩ [Max.]
  • Insulation Resistance
    (MΩ (Min.))
    50MΩ [Min.]
  • Dielectric Strength
    (AC V)
    AC 200V
  • Temperature Range
    (°C)
    -35℃ ~ 85℃
  • Housing Material LCP
  • Housing Colour Natural
  • Terminal Material
  • Housing Material UL
    Rating
    UL94V-0
  • Connector Size height
    (mm)
    0.66
  • Connector Size width
    (mm)
    3.80
  • Connector Size length
    (mm)
    4.25
  • Mated Size height
    (mm)
    0.66
  • Mated Size width
    (mm)
    3.80
  • Mated Size length
    (mm)
    4.25
