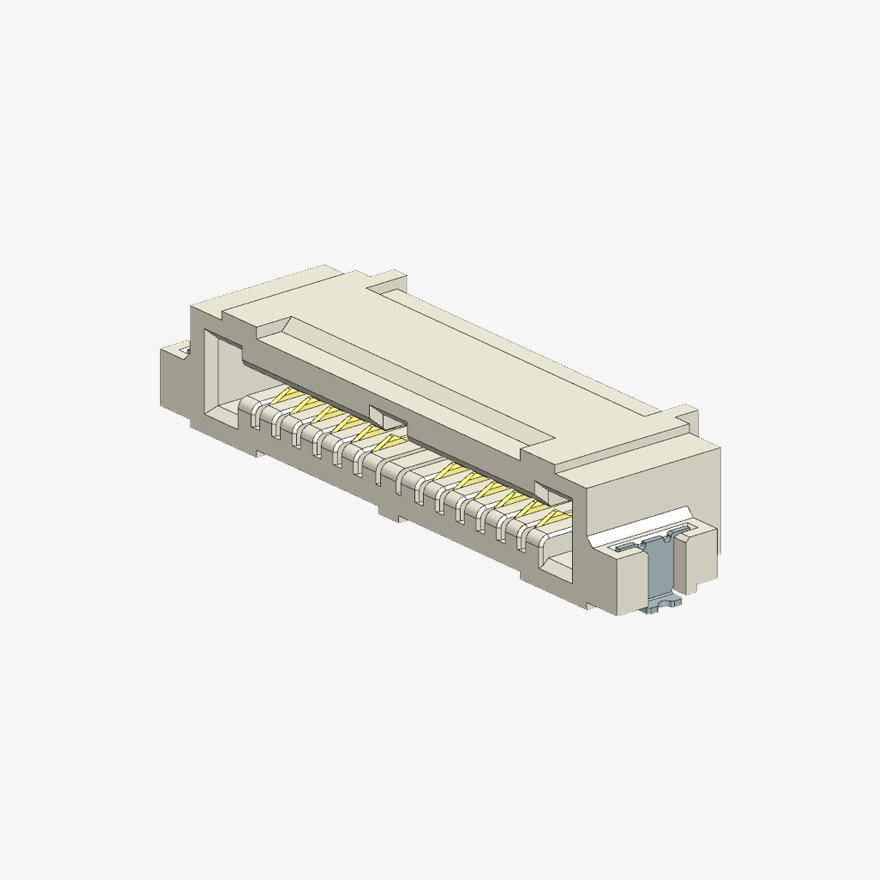

IS100-L14T-C46-C

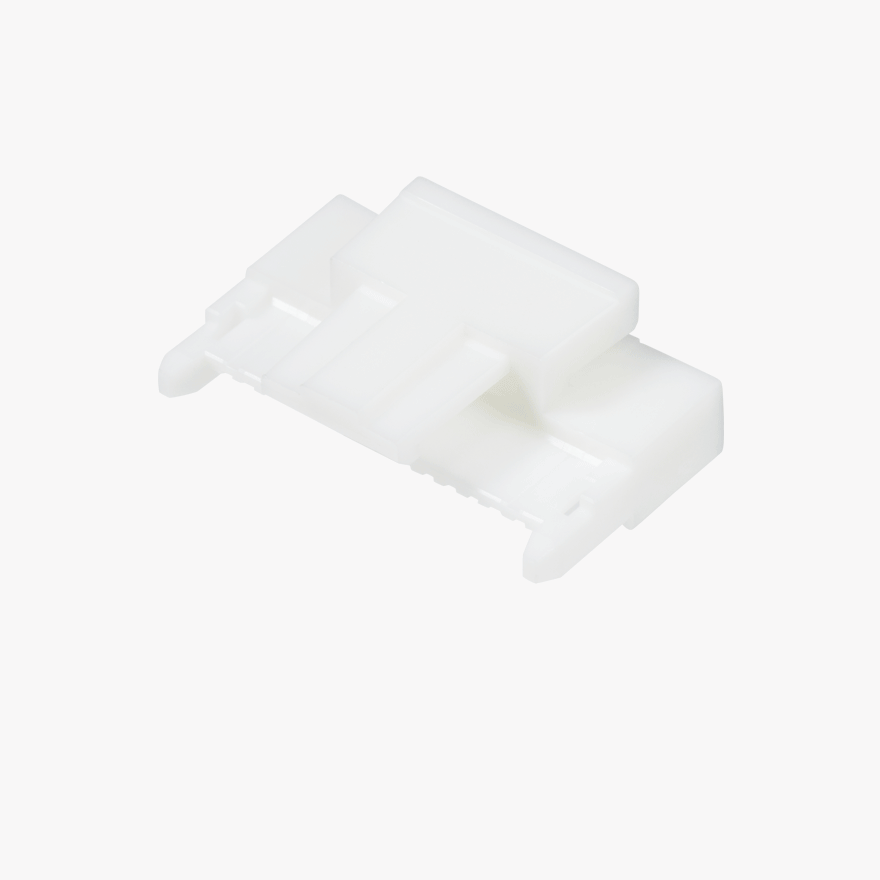

FFC1.0 Pitch 14Pin 4.6H Series(LED Power) – 1.0Pitch 14Pin 4.6Height Receptacle White SMD

PRODUCT DESCRIPTION

  • 1.0mm Pitch, 6.2mm Height, Horizontal type connector
  • Applicable for FFC thickness is 0.40±0.03mm

Technical Details

  • Pitch(mm) 1.00
  • Gender Female Connectors
  • Connector Style Horizontal
  • Number of Positions 14
  • Current Rating(A) AC, DC 1.0Amp
  • Contact Resistance
    (MΩ (Max.))
    50mΩ Max.
  • Insulation Resistance
    (MΩ (Min.))
    500MΩ Min.
  • Dielectric Strength
    (AC V)
    AC , DC 150V
  • Temperature Range
    (°C)
    '­40℃ to +85 ℃
  • Housing Material LCP
  • Housing Colour Natural
  • Terminal Material
  • Housing Material UL
    Rating
    UL94V-0
  • Connector Size height
    (mm)
    4.35
  • Connector Size width
    (mm)
    6.30
  • Connector Size length
    (mm)
    22.35
  • Mated Size height
    (mm)
    4.35
  • Mated Size width
    (mm)
    6.30
  • Mated Size length
    (mm)
    22.35
