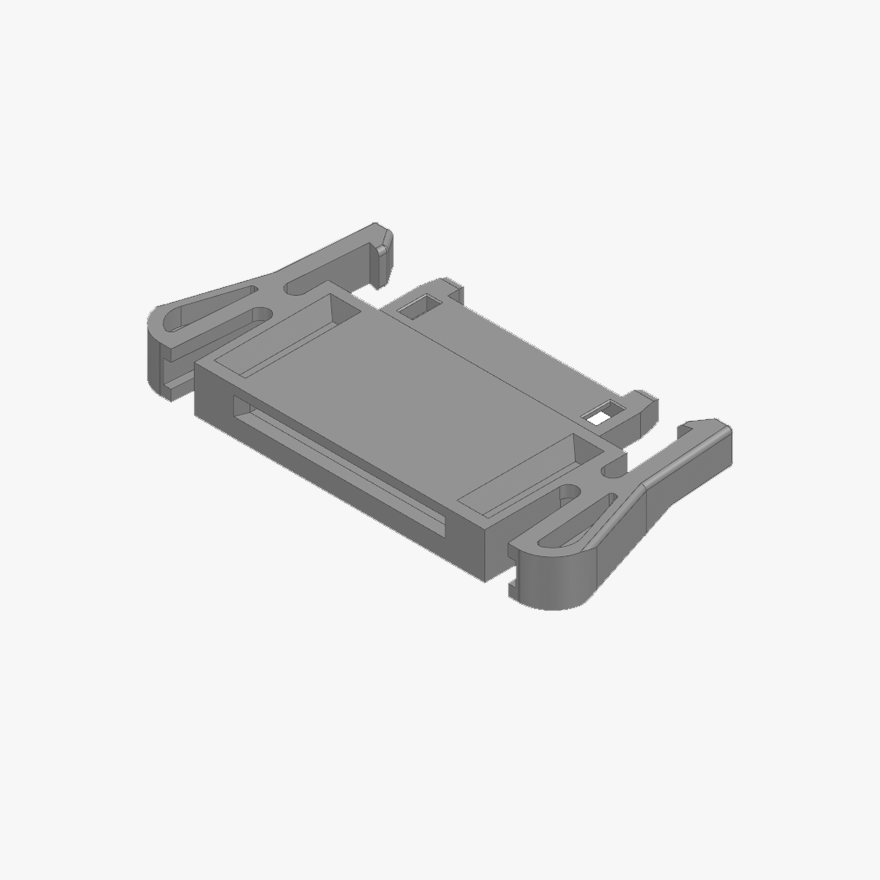

HS100-L06N-N20
FFC 1.0Pitch 2.0H Series – 1.0Pitch 6Pin 2.0Height Plug
PRODUCT DESCRIPTION
- 1.0mm Pitch, 2.0mm Height, Horizontal type connector
- Applicable for FFC thickness is 0.40±0.03mm
Technical Details
-
Pitch
(mm) 1.00 - Gender Male Connectors
- Connector Style Horizontal
- Number of Positions 6
-
Current Rating
(A) 1.0A AC/DC -
Contact Resistance
(MΩ (Max.)) 100mΩ Max. -
Insulation Resistance
(MΩ (Min.)) 50MΩ Min. -
Dielectric Strength
(AC V) 50MΩ Min. -
Temperature Range
(°C) '40℃ to +85 ℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 1.95 -
Connector Size width
(mm) 4.00 -
Connector Size length
(mm) 14.25 -
Mated Size height
(mm) 1.95 -
Mated Size width
(mm) 4.00 -
Mated Size length
(mm) 14.25
- FILE NAME EXTENSION UPDATED DATE
- FILE NAME EXTENSION UPDATED DATE
- FILE NAME EXTENSION UPDATED DATE
Display Connector / LED POWER

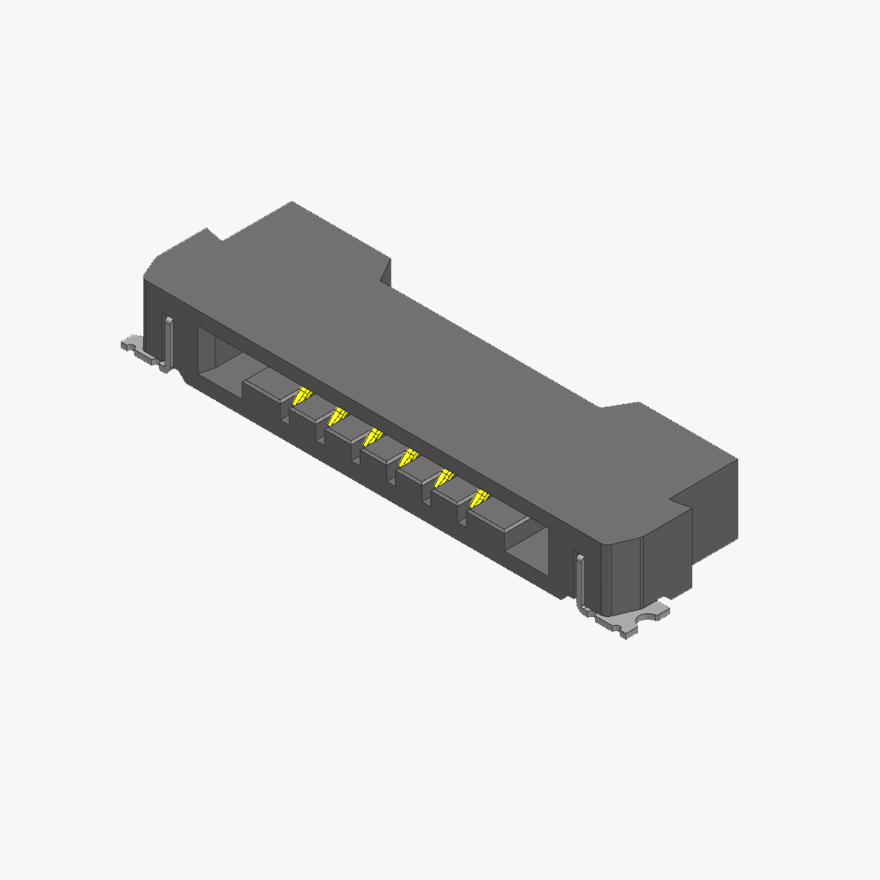

FFC 1.0Pitch 2.0H Series – 1.0Pitch 6Pin 2.0Height Header
