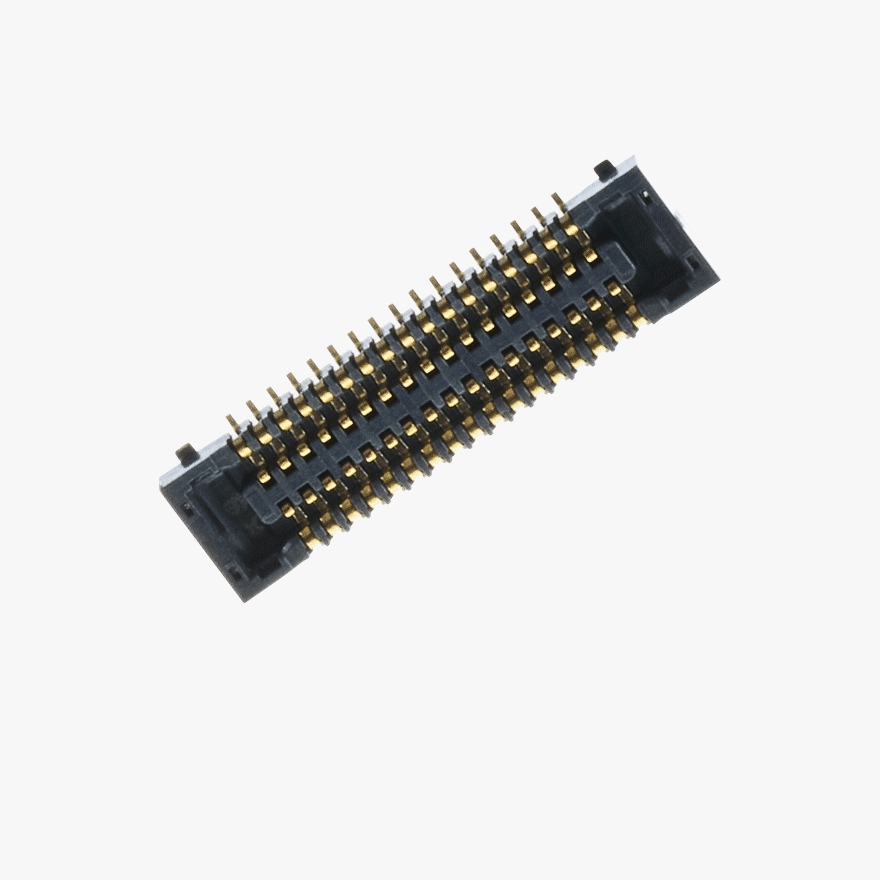

BF035-V34B-C08

BR1 Series 0.35Pitch 34Pin 0.8Height Female

PRODUCT DESCRIPTION

  • Bellows Type Contact Structure
  • 0.35mm pitch, 0.8mm slim stacking design for saving space
  • Double Contact, Mating length 0.15mm for Contact stability
  • Ni-Barrier on the Contact terminal for Solder wicking prevention

Technical Details

  • Pitch(mm) 0.35
  • Gender Female Connectors
  • Connector Style
  • Number of Positions 34
  • Current Rating(A) 0.3A
  • Contact Resistance
    (MΩ (Max.))
    50mΩ [Max.]
  • Insulation Resistance
    (MΩ (Min.))
    1,000MΩ [Min.]
  • Dielectric Strength
    (AC V)
    250V AC(RMS)
  • Temperature Range
    (°C)
    -55℃ ~ 85℃
  • Housing Material LCP
  • Housing Colour BLACK
  • Terminal Material
  • Housing Material UL
    Rating
    UL94V-0
  • Connector Size height
    (mm)
    0.80
  • Connector Size width
    (mm)
    2.40
  • Connector Size length
    (mm)
    8.20
  • Mated Size height
    (mm)
    0.80
  • Mated Size width
    (mm)
    2.40
  • Mated Size length
    (mm)
    8.20
