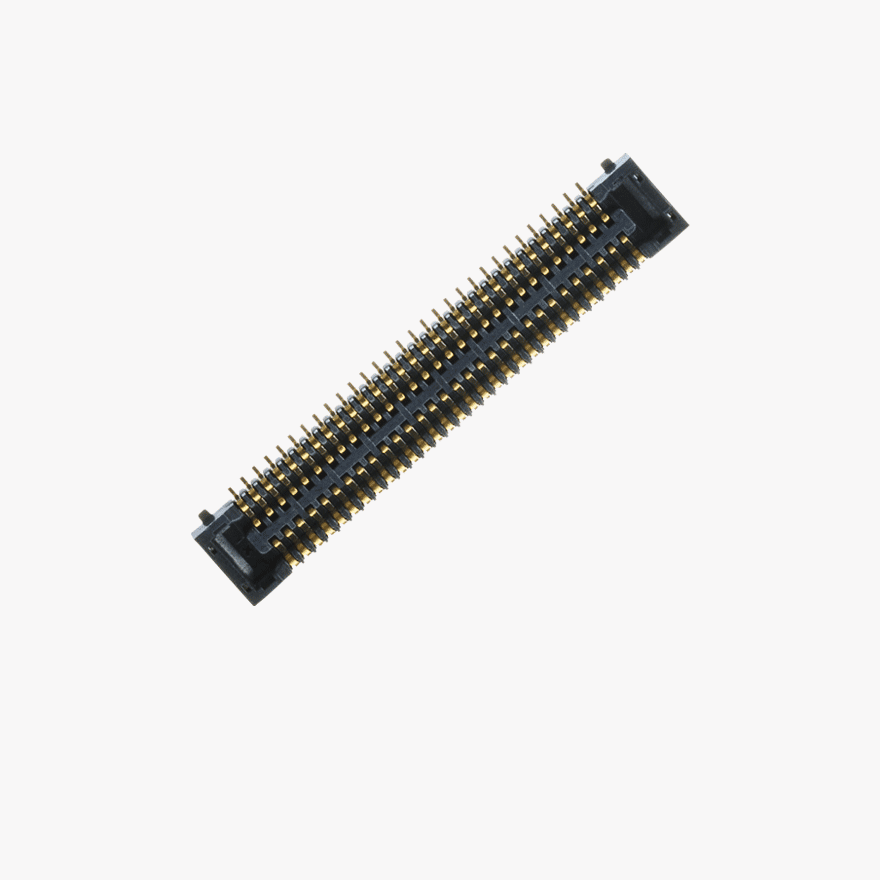

BF035-V60B-C08
BR1 Series 0.35Pitch 60Pin 0.8Height Female
PRODUCT DESCRIPTION
- Bellows Type Contact Structure
- 0.35mm pitch, 0.8mm slim stacking design for saving space
- Double Contact, Mating length 0.15mm for Contact stability
- Ni-Barrier on the Contact terminal for Solder wicking prevention
Technical Details
-
Pitch
(mm) 0.35 - Gender Female Connectors
- Connector Style
- Number of Positions 60
-
Current Rating
(A) 0.3A -
Contact Resistance
(MΩ (Max.)) 50mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 1,000MΩ [Min.] -
Dielectric Strength
(AC V) 250V AC(RMS) -
Temperature Range
(°C) -55℃ ~ 85℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 0.80 -
Connector Size width
(mm) 2.40 -
Connector Size length
(mm) 12.75 -
Mated Size height
(mm) 0.80 -
Mated Size width
(mm) 2.40 -
Mated Size length
(mm) 12.75
