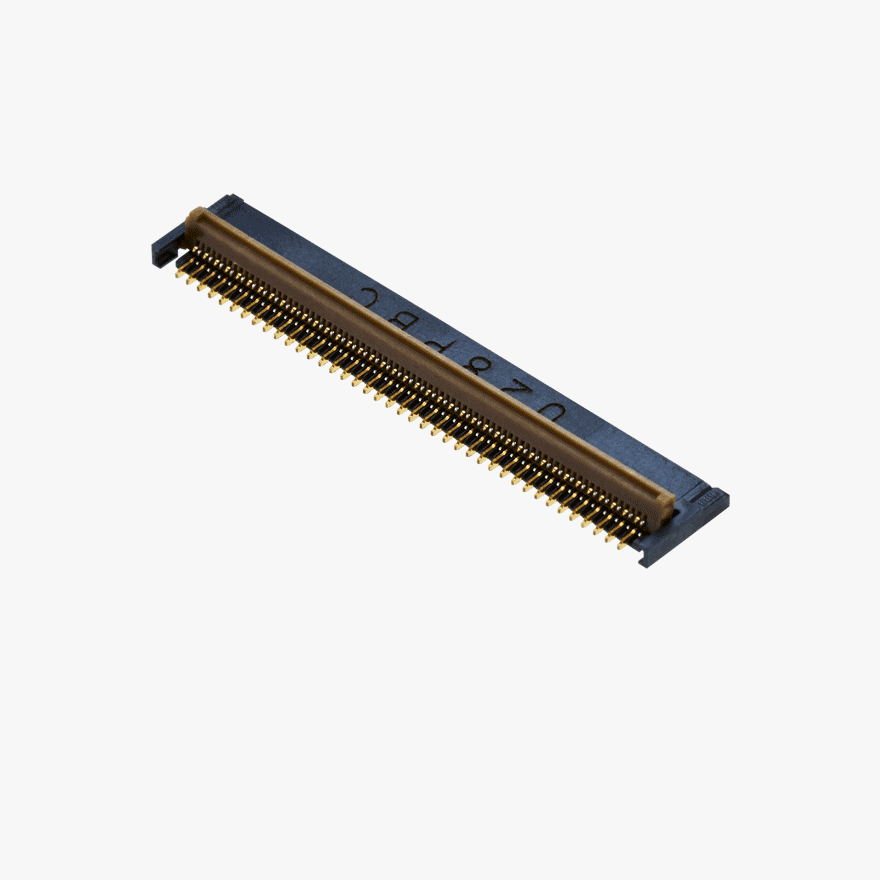

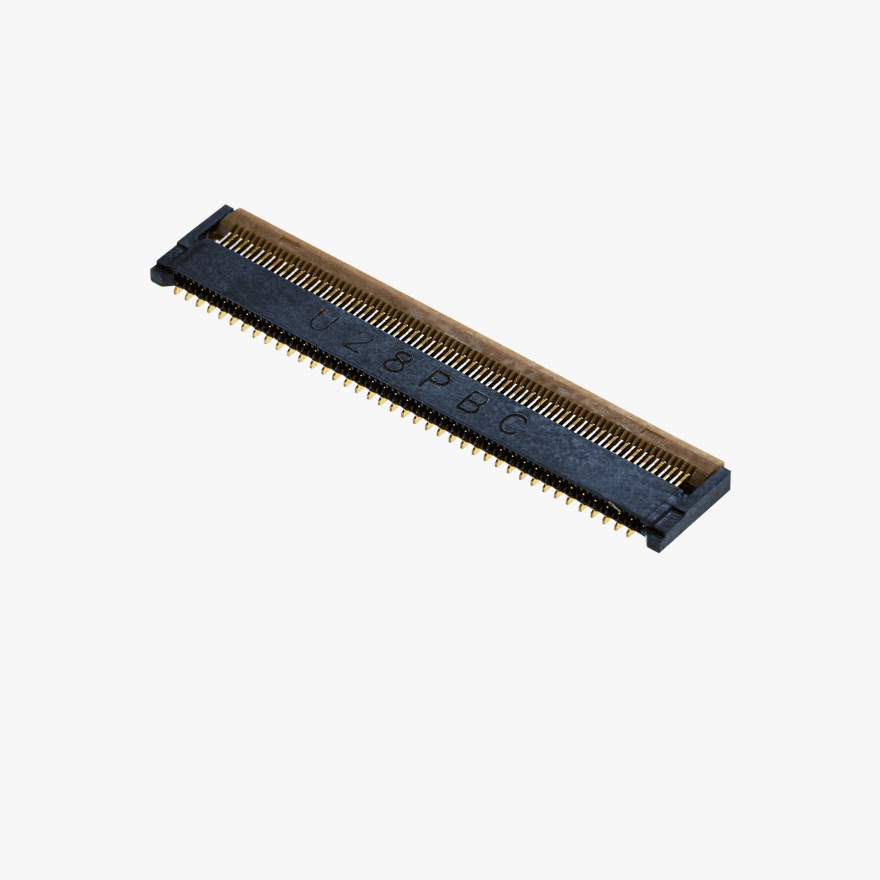

PF025-B80B-C11
2580S – 0.25Pitch 80Pin 1.1Height
PRODUCT DESCRIPTION
- 0.25mm Pitch, 1.06mm Height, Low and upper both contact
- Easy to Insert FPC and operate Actuator Back–lock system
- Both upper and lower contacts design accepts any FPC insertion directions
- Improved robustness by attaching a metal shell
Technical Details
-
Pitch
(mm) 0.25 - Gender Back Flip Connectors
- Connector Style
- Number of Positions
-
Current Rating
(A) 0.2A Max -
Contact Resistance
(MΩ (Max.)) 50mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 50MΩ [Min.] -
Dielectric Strength
(AC V) AC 200V -
Temperature Range
(°C) -55℃ ~ 85℃
- Housing Material
- Housing Colour
- Terminal Material
-
Housing Material UL
Rating
-
Connector Size height
(mm) 1.06 -
Connector Size width
(mm) 4.25 -
Connector Size length
(mm) 22.15 -
Mated Size height
(mm) 1.06 -
Mated Size width
(mm) 4.25 -
Mated Size length
(mm) 22.15
