KH1700070-10

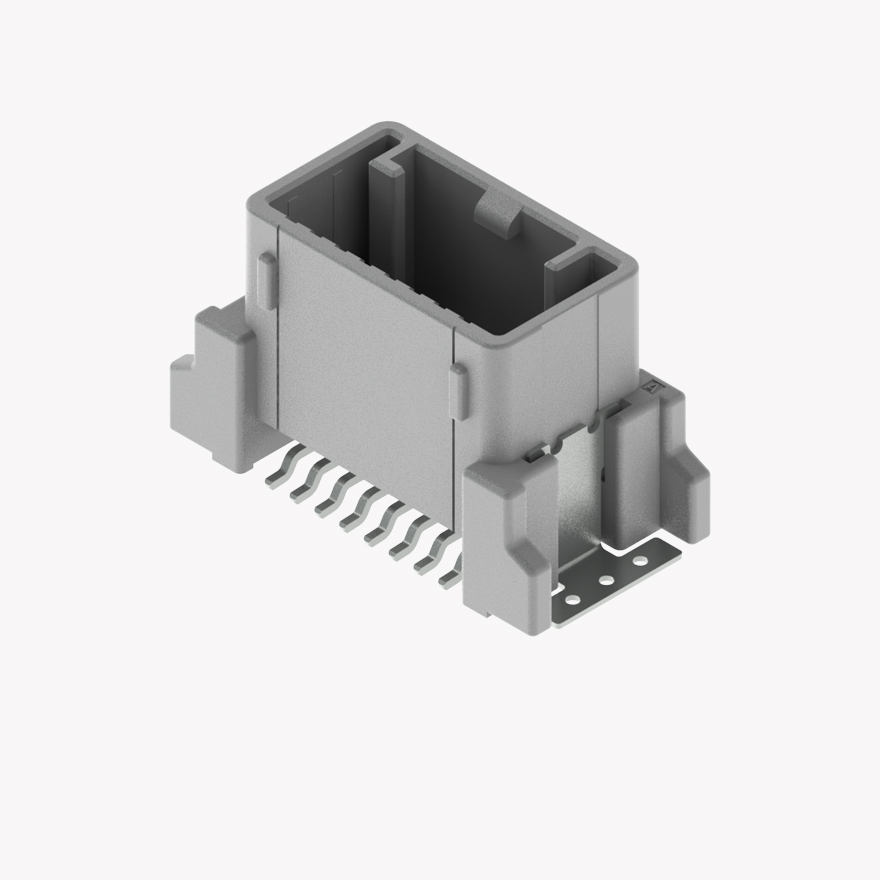

025 Two Row 16Pin Male Connector Vertical Natural SMT type
PRODUCT DESCRIPTION
- The blade width of male Terminal for this Connector is 0.025 inch (0.64mm)
- The terminal pitch of this connector is 2.2mm
- It has applied the TPA of side type for the assemble workability
- Pre-assembled TPA for secondary lock
- Reliability Test Specifications : ES91500-00, ES91500-03
Technical Details
-
Pitch
(mm) 2.2 - Gender Male Connectors
- Connector Style Vertical
- Number of Positions 16
-
Current Rating
(A) 5 -
Contact Resistance
(MΩ (Max.)) 10 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-00, ES91500-03
- Housing Material PA9T-GF33
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 16.20 -
Connector Size width
(mm) 32.60 -
Connector Size length
(mm) 19.70 -
Mated Size height
(mm) 16.20 -
Mated Size width
(mm) 32.60 -
Mated Size length
(mm) 24.40
- FILE NAME EXTENSION UPDATED DATE
Automotive Connector / Board to Wire Connectors

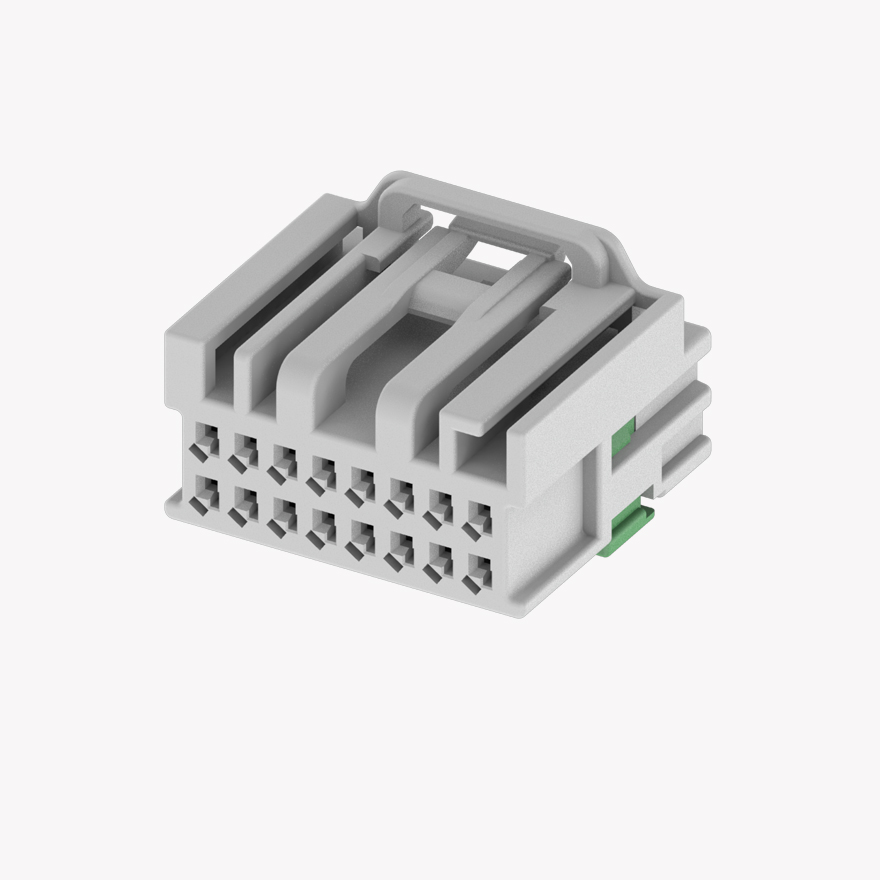

025 Two Row 16Pin Female Connector Natural
