KH2000085-20

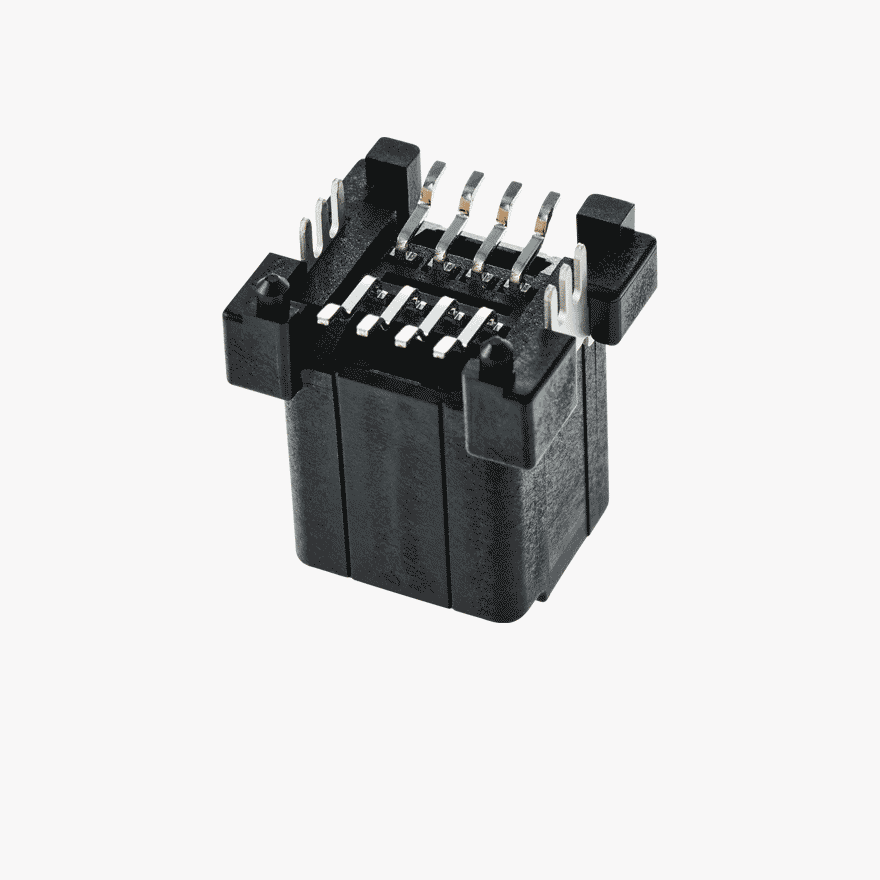

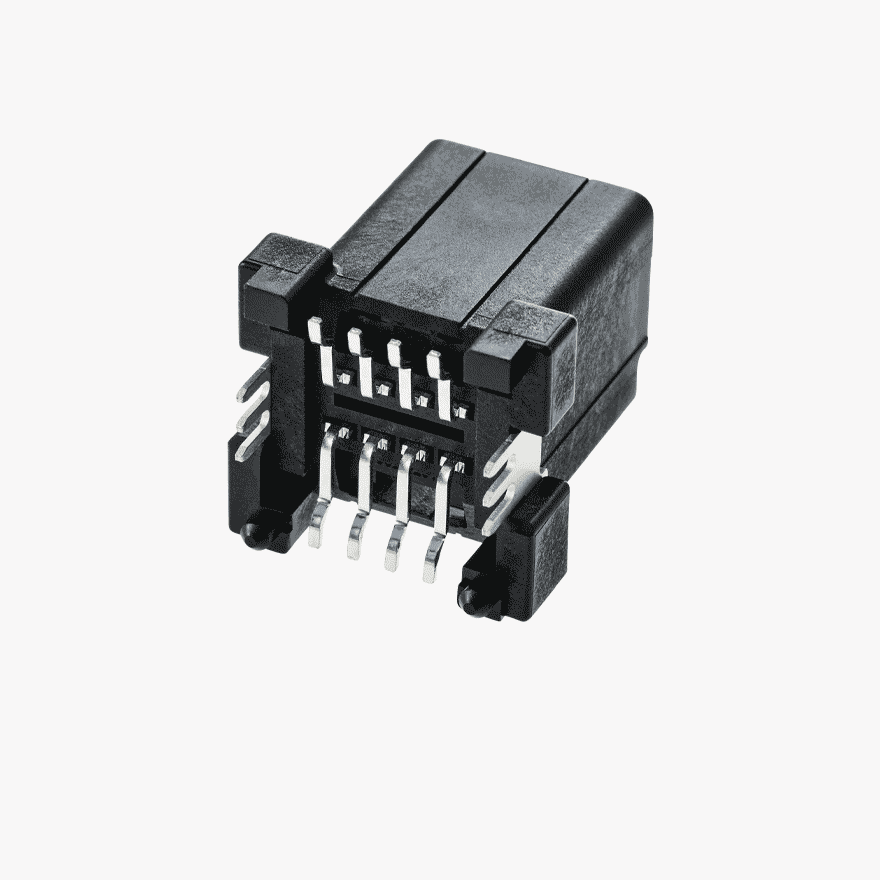

025 II 8Pin Male Connector Vertical Black SMT type

PRODUCT DESCRIPTION

  • The blade width of male terminal for this connector is 0.025 inch (0.64mm)
  • The terminal pitch of this connector is 2.2mm

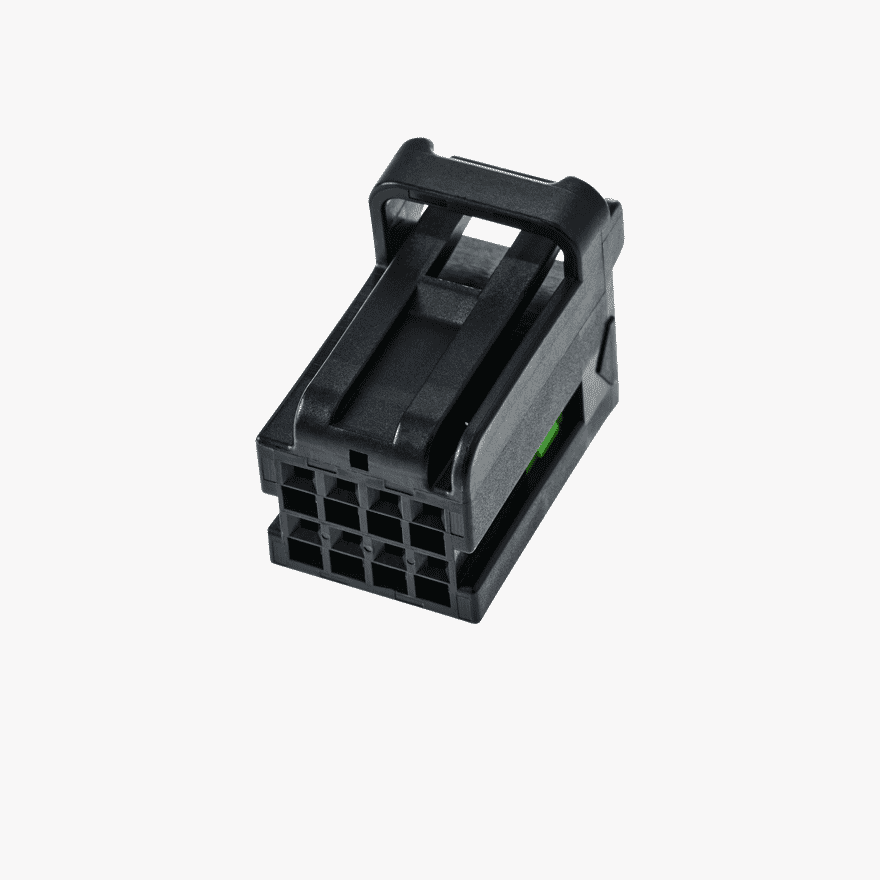

  • Applied TPA type of male/female connector : Pre-assembled TPA
  • This is the standard product about the small connector for 0.025 inch (0.64mm)
  • Reliability Test Specification : ES91500-00, GMW3191

Technical Details

  • Pitch(mm) 2.2
  • Gender Male Connectors
  • Connector Style Vertical
  • Number of Positions 8
  • Current Rating(A) 5
  • Contact Resistance
    (MΩ (Max.))
    10
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    ES91500-00, GMW3191
  • Housing Material PA9T-GF30
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    16.20
  • Connector Size width
    (mm)
    15.80
  • Connector Size length
    (mm)
    20.30
  • Mated Size height
    (mm)
    16.60
  • Mated Size width
    (mm)
    17.50
  • Mated Size length
    (mm)
    23.60
  • FILE NAME EXTENSION UPDATED DATE
  • kh2000071_2D DATA PDF 01/2023 Download
  • kh2000071-20_3D DATA STP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-00_PVT PDF 02/2023 Download
  • GMW3191_PVT PDF 02/2023 Download
