KH1800045-21

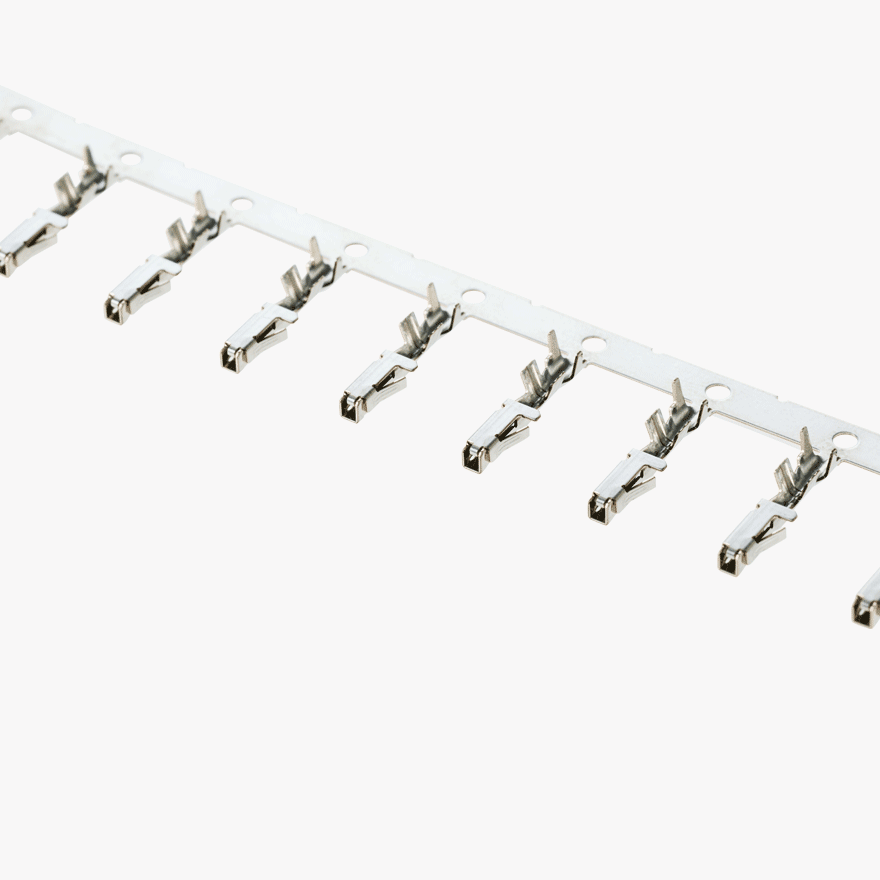

025 Double Lock Female Tin Terminal
PRODUCT DESCRIPTION
- The blade width of male terminal for this connector is 0.025 inch (0.64mm)
- The terminal pitch of this connector is 2.2mm
- This is the standard product about the small connector for 0.025 inch (0.64mm)
- Reliability Test Specification : ES91500-00
Technical Details
-
Pitch
(mm) - Gender Terminal
- Connector Style
- Number of Positions
-
Current Rating
(A) 5 -
Contact Resistance
(MΩ (Max.)) 10 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-00
- Housing Material
- Housing Colour
- Terminal Material Copper Alloy
-
Housing Material UL
Rating
-
Connector Size height
(mm) 1.70 -
Connector Size width
(mm) 1.65 -
Connector Size length
(mm) 11.00 -
Mated Size height
(mm) -
Mated Size width
(mm) -
Mated Size length
(mm)
- FILE NAME EXTENSION UPDATED DATE
- kh1800045-21_2D DATA PDF 01/2023 Download
- FILE NAME EXTENSION UPDATED DATE
- ES91500-00_PVT PDF 02/2023 Download
