KH1400035-10

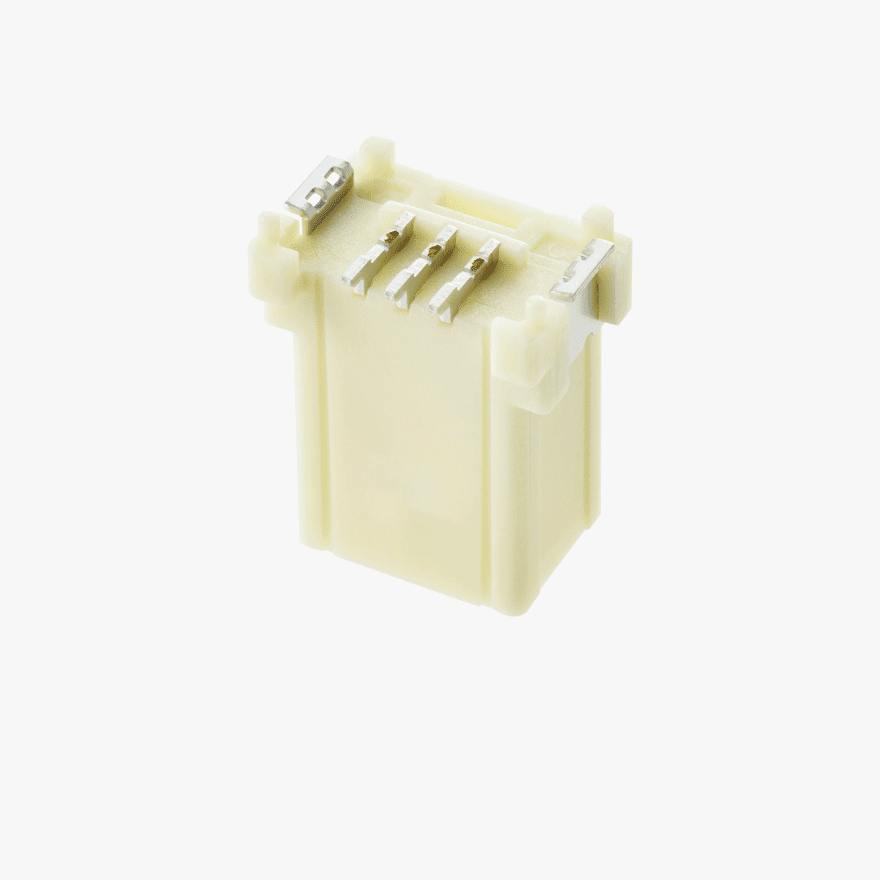

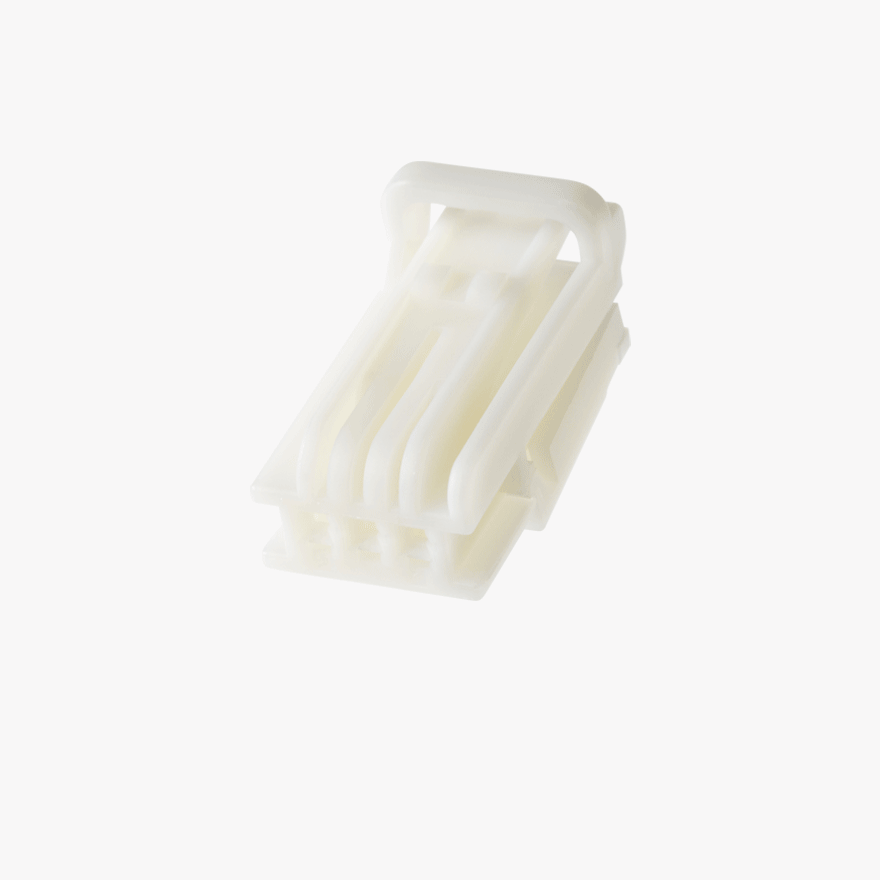

025 Double Lock 3Pin Male Connector Vertical Natural SMT type

PRODUCT DESCRIPTION

  • The blade width of male terminal for this connector is 0.025 inch (0.64mm)
  • The terminal pitch of this connector is 2.2mm
  • This is the standard product about the small connector for 0.025 inch (0.64mm)
  • Reliability Test Specification : ES91500-00

Technical Details

  • Pitch(mm) 2.2
  • Gender Male Connectors
  • Connector Style Vertical
  • Number of Positions 3
  • Current Rating(A) 5
  • Contact Resistance
    (MΩ (Max.))
    10
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    ES91500-00
  • Housing Material PPA-GF15
  • Housing Colour Natural
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    10.40
  • Connector Size width
    (mm)
    14.80
  • Connector Size length
    (mm)
    18.25
  • Mated Size height
    (mm)
    11.00
  • Mated Size width
    (mm)
    14.80
  • Mated Size length
    (mm)
    20.20
  • FILE NAME EXTENSION UPDATED DATE
  • kh1400035_2D DATA PDF 01/2023 Download
  • kh1400035-10_3D DATA STP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-00_PVT PDF 02/2023 Download
