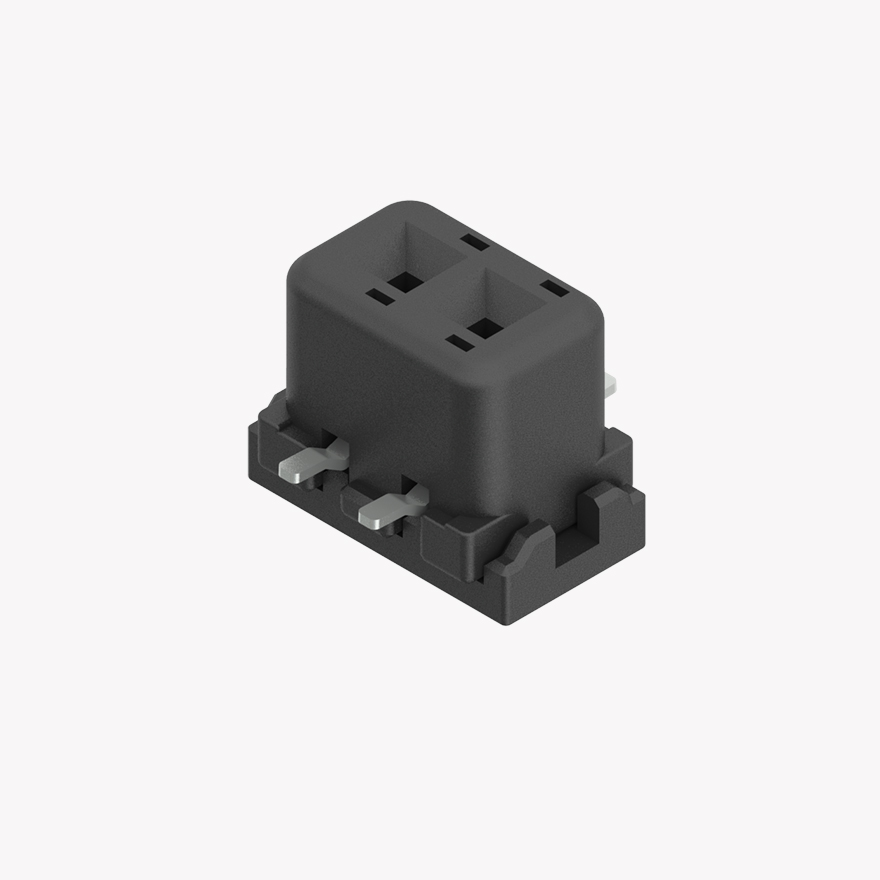

KH2000044-20
025 2Pin Female Connector Vertical Black Board to Pin
PRODUCT DESCRIPTION
- The blade width of male Terminal for this Connector is 0.025 inch(0.64mm)
- The terminal pitch of this connector is 2.9mm
- Reliability Test Specification : ES91500-03
Technical Details
-
Pitch
(mm) 2.9 - Gender Female Connectors
- Connector Style Vertical
- Number of Positions 2
-
Current Rating
(A) 3 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 500 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-03
- Housing Material LCP-GF30
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 5.20 -
Connector Size width
(mm) 10.70 -
Connector Size length
(mm) 7.40 -
Mated Size height
(mm) -
Mated Size width
(mm) -
Mated Size length
(mm)
- FILE NAME EXTENSION UPDATED DATE
- ES91500-03_PVT PDF 02/2023 Download
