KH1400039-21

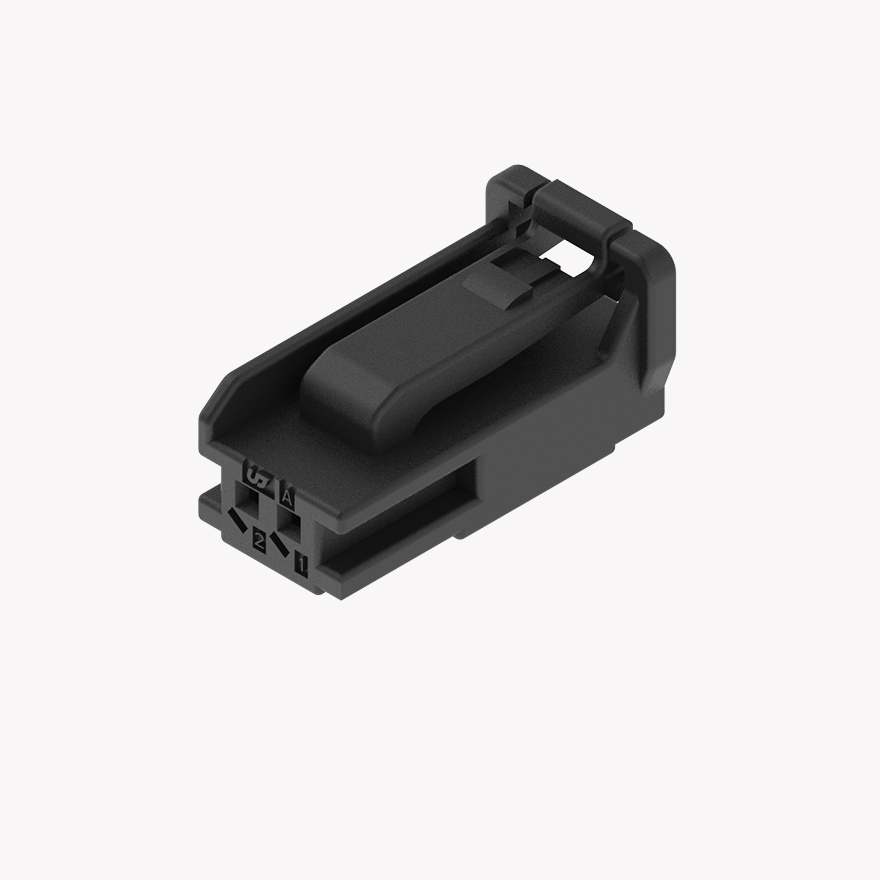

025 2Pin Female Connector Black

PRODUCT DESCRIPTION

  • The blade width of male terminal for this connector is 0.025 inch (0.64mm)
  • The terminal pitch of this connector is 2.2mm
  • This is the standard product about the small connector for 0.025 inch (0.64mm)
  • Reliability Test Specification : ES91500-00

Technical Details

  • Pitch(mm) 2.2
  • Gender Female Connectors
  • Connector Style
  • Number of Positions 2
  • Current Rating(A) 5
  • Contact Resistance
    (MΩ (Max.))
    10
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    ES91500-00
  • Housing Material PBT
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    9.60
  • Connector Size width
    (mm)
    8.90
  • Connector Size length
    (mm)
    17.20
  • Mated Size height
    (mm)
    9.60
  • Mated Size width
    (mm)
    8.90
  • Mated Size length
    (mm)
    17.20
  • FILE NAME EXTENSION UPDATED DATE
  • kh1400039_2D DATA PDF 01/2023 Download
  • kh1400039-21_3D DATA STP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-00_PVT PDF 02/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
