KH1700018-10

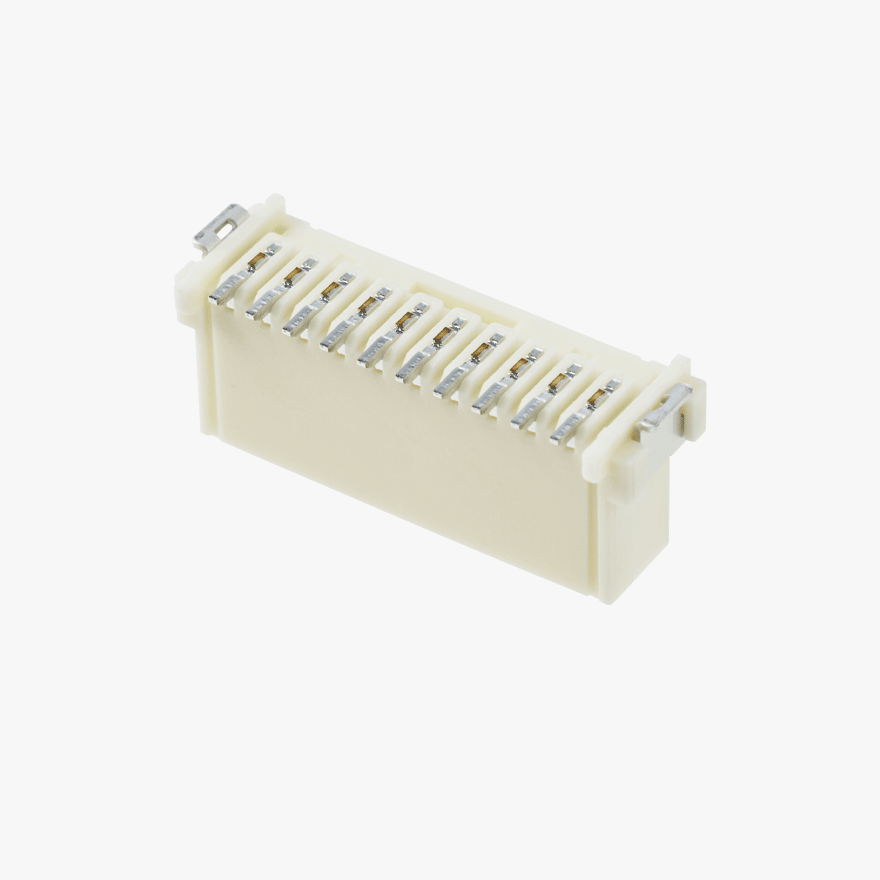

020 Small Blistering Less 10Pin Male Connector Vertical Natural SMT type
PRODUCT DESCRIPTION
- The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
- The terminal pitch of this connector is 2.0mm
- This product is smaller than 020 Series and excellent space utilization
- Reliability Test Specifications : ES91500-03, GMW3191
Technical Details
-
Pitch
(mm) 2.0 - Gender Male Connectors
- Connector Style Vertical
- Number of Positions 10
-
Current Rating
(A) 3 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-03, GMW3191
- Housing Material PA9T-GF30
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 9.70 -
Connector Size width
(mm) 24.40 -
Connector Size length
(mm) 7.90 -
Mated Size height
(mm) 11.40 -
Mated Size width
(mm) 24.40 -
Mated Size length
(mm) 8.10
