KH1800007-21

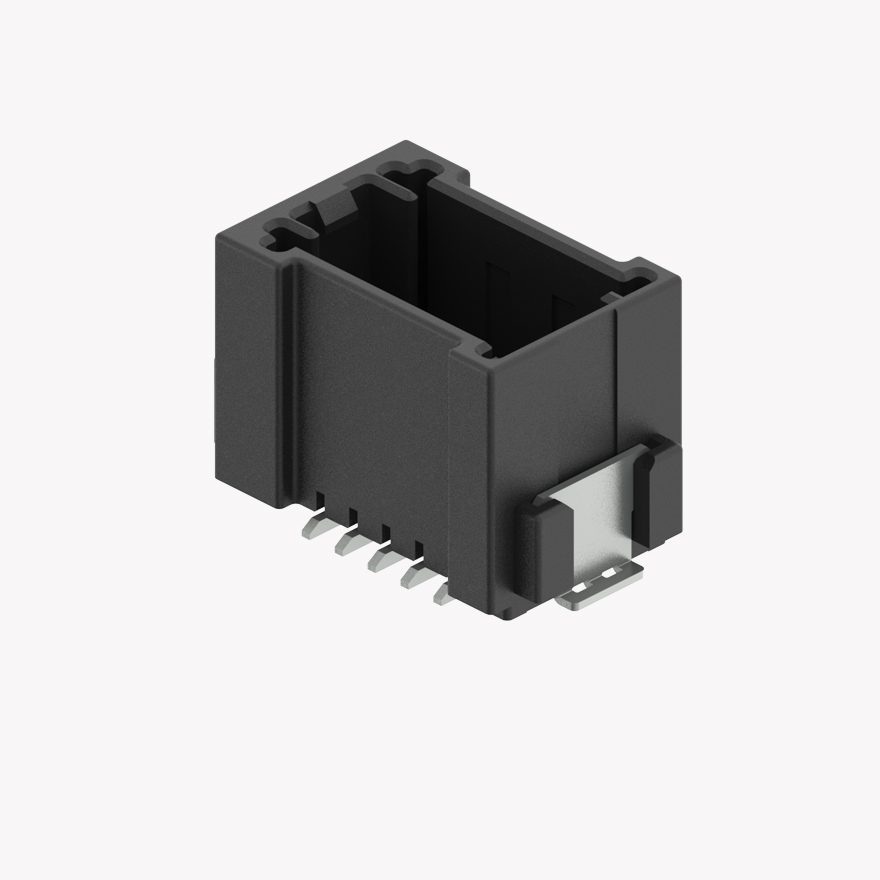

020 Double Lock Two Row 10Pin Male Connector Vertical Black SMT type
PRODUCT DESCRIPTION
The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
The terminal pitch of this connector is 2.0mm
It has applied the TPA of side type for the assemble workability
Pre-assembled TPA for secondary lock
Reliability Test Specification : ES91500-00, ES91500-03
Technical Details
-
Pitch
(mm) 2.0 - Gender Male Connectors
- Connector Style Vertical
- Number of Positions 10
-
Current Rating
(A) 5 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-00, ES91500-03
- Housing Material PBT-GF10
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 11.8 -
Connector Size width
(mm) 19.55 -
Connector Size length
(mm) 12.10 -
Mated Size height
(mm) 15.5 -
Mated Size width
(mm) 19.85 -
Mated Size length
(mm) 11.8
- FILE NAME EXTENSION UPDATED DATE
Automotive Connector / Board to Wire Connectors

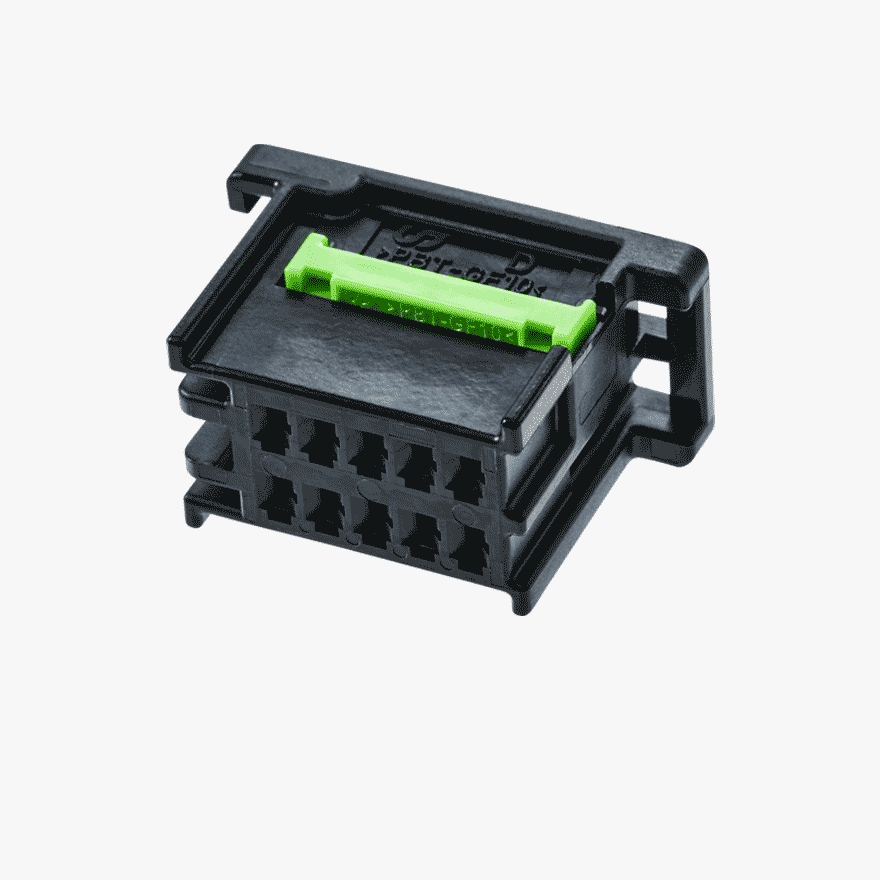

020 Double Lock 10Pin Female Connector Black
