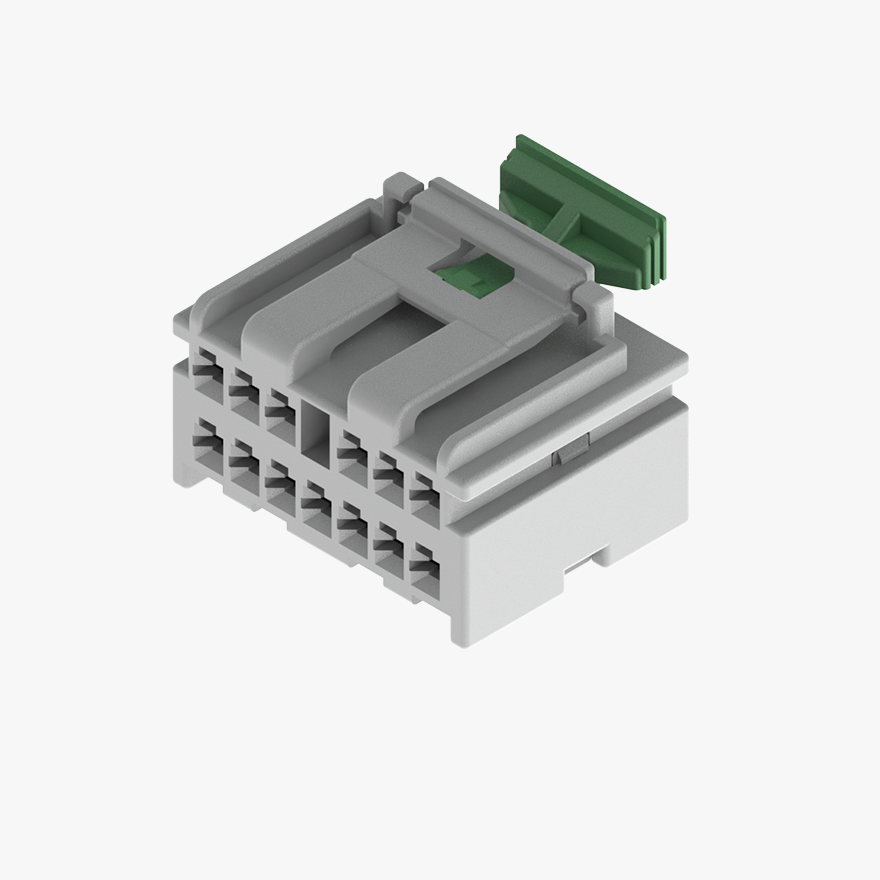

KH2200036-10

020 Double Lock & CPA Two Row 13Pin Female Connector Natural

PRODUCT DESCRIPTION

  • The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
  • The terminal pitch of this connector is 2.0mm
  • It has applied the TPA of side type for the assemble workability
  • This product is similar size with 020 Series even included the mounted TPA
  • Pre-assembled TPA & CPA
  • Reliability Test Specification : ES91500-00, ES91500-03, LV214, USCAR-2

Technical Details

  • Pitch(mm) 2.0
  • Gender Female Connectors
  • Connector Style
  • Number of Positions 13
  • Current Rating(A) 5
  • Contact Resistance
    (MΩ (Max.))
    10
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    ES91500-00, ES91500-03, LV214, USCAR-2
  • Housing Material PBT-GF15
  • Housing Colour Natural
  • Terminal Material
  • Housing Material UL
    Rating
    V0
  • Connector Size height
    (mm)
    11.32
  • Connector Size width
    (mm)
    16.4
  • Connector Size length
    (mm)
    15.4
  • Mated Size height
    (mm)
  • Mated Size width
    (mm)
  • Mated Size length
    (mm)
  • FILE NAME EXTENSION UPDATED DATE
  • KH2200036-10_2D PDF 01/2023 Download
  • KH2200036-10_3D STEP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-00_PVT PDF 02/2023 Download
  • ES91500-03_PVT PDF 02/2023 Download
  • LV214_PVT PDF 02/2023 Download
  • USCAR2_PVT PDF 02/2023 Download
