KH1900060-42

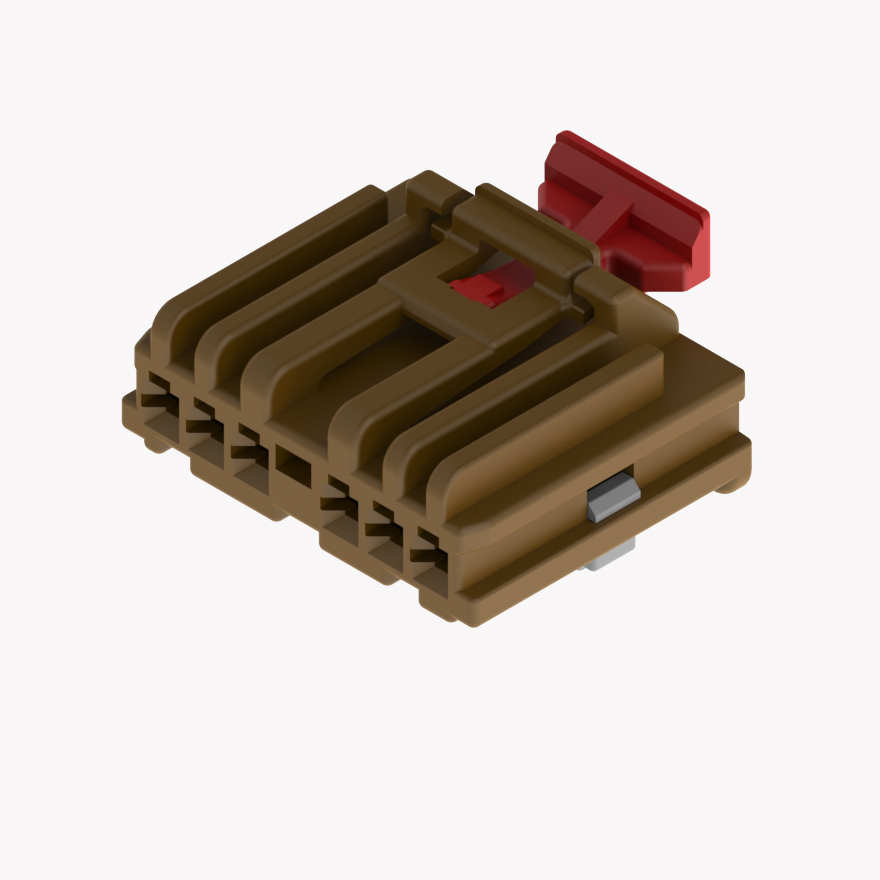

020 Double Lock & CPA 6Pin Male Connector Vertical Brown SMT type

PRODUCT DESCRIPTION

  • The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
  • The terminal pitch of this connector is 2.0mm
  • It has applied the TPA of side type for the assemble workability
  • This product is similar size with 020 Series even included the mounted TPA
  • Pre-assembled TPA & CPA
  • Reliability Test Specification : ES91500-00, ES91500-03, LV214, USCAR-2

Technical Details

  • Pitch(mm) 2.0
  • Gender Male Connectors
  • Connector Style Vertical
  • Number of Positions 6
  • Current Rating(A) 5
  • Contact Resistance
    (MΩ (Max.))
    30
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    ES91500-00, ES91500-03
  • Housing Material PA9T-GF30
  • Housing Colour Brown
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    8.50
  • Connector Size width
    (mm)
    18.60
  • Connector Size length
    (mm)
    12.20
  • Mated Size height
    (mm)
    15.40
  • Mated Size width
    (mm)
    18.60
  • Mated Size length
    (mm)
    9.27
  • FILE NAME EXTENSION UPDATED DATE
  • KH1900060-42_2D PDF 01/2023 Download
  • KH1900060-42_3D STEP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-00_PVT PDF 02/2023 Download
  • ES91500-03_PVT PDF 02/2023 Download
