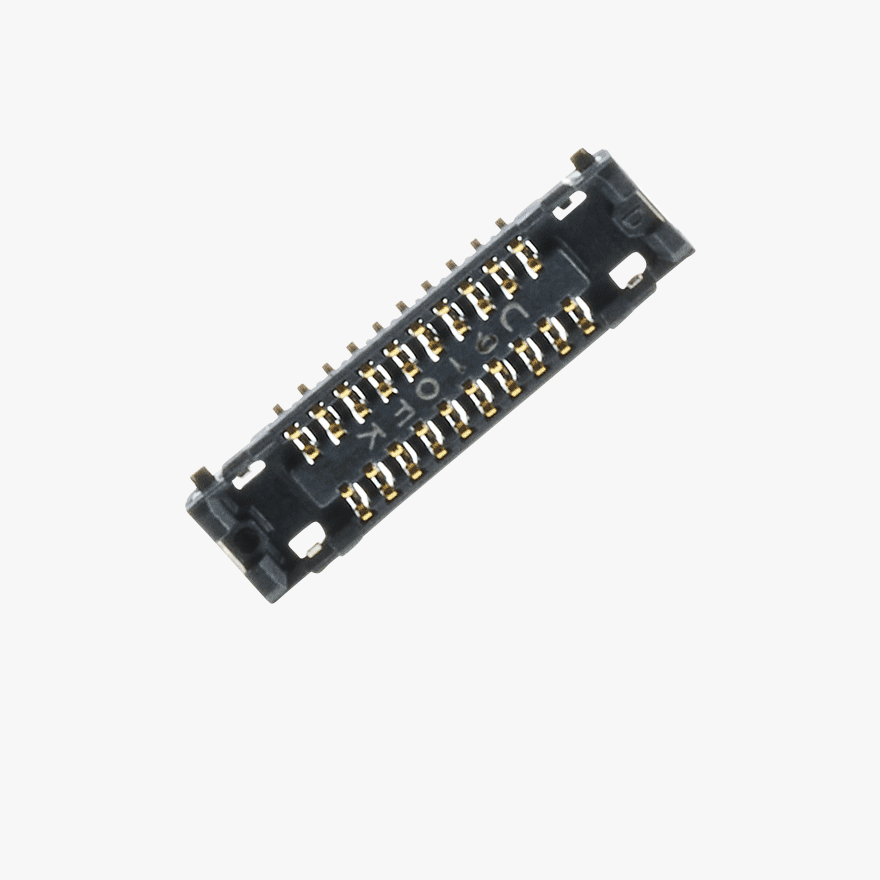

BF035-I20B-C06-B
BR5 Series 0.35Pitch 20Pin 0.6Height Female
PRODUCT DESCRIPTION
- For contact stability, Double Contact and Bellows Type Contact Structure.
- 0.35mm pitch, 0.6mm slim stacking design for saving space.
- Male Terminal / Female Fitting Nail Insert Structure.
Technical Details
-
Pitch
(mm) 0.35 - Gender Female Connectors
- Connector Style
- Number of Positions 20
-
Current Rating
(A) 0.3A -
Contact Resistance
(MΩ (Max.)) 90mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 1,000MΩ [Min.] -
Dielectric Strength
(AC V) 150V AC(RMS) -
Temperature Range
(°C) -55℃ ~ 85℃
- Housing Material LCP
- Housing Colour BLACK
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 0.60 -
Connector Size width
(mm) 1.70 -
Connector Size length
(mm) 6.00 -
Mated Size height
(mm) 0.60 -
Mated Size width
(mm) 1.70 -
Mated Size length
(mm) 5
