KH2110122-21

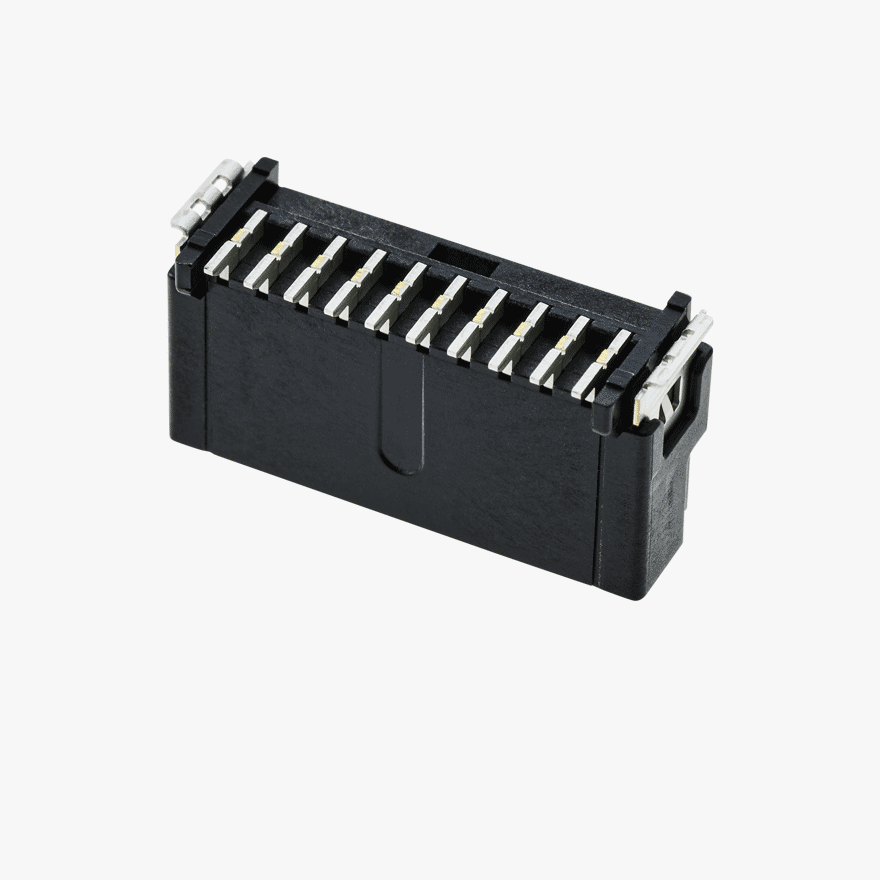

020 Double Lock 10Pin Male Connector Vertical Black SMT type AU Terminal Global ver.

PRODUCT DESCRIPTION

  • The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
  • The terminal pitch of this connector is 2.0mm
  • It has applied the TPA of side type for the assemble workability
  • This product is similar size with 020 Series even included the mounted TPA
  • Pre-assembled TPA for secondary lock
  • Reliability Test Specification : LV214, USCAR-2

Technical Details

  • Pitch(mm) 2.0
  • Gender Male Connectors
  • Connector Style Vertical
  • Number of Positions 10
  • Current Rating(A) 5
  • Contact Resistance
    (MΩ (Max.))
    30
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    LV214, USCAR-2
  • Housing Material PA9T-GF30
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    12.20
  • Connector Size width
    (mm)
    24.60
  • Connector Size length
    (mm)
    8.50
  • Mated Size height
    (mm)
    15.40
  • Mated Size width
    (mm)
    24.60
  • Mated Size length
    (mm)
    9.22
  • FILE NAME EXTENSION UPDATED DATE
  • KH2110122-21_2D_pdf PDF 01/2023 Download
  • KH2110122-21_3D_stp STP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • LV214_PVT PDF 02/2023 Download
  • USCAR2_PVT PDF 02/2023 Download
