KH1300004-20

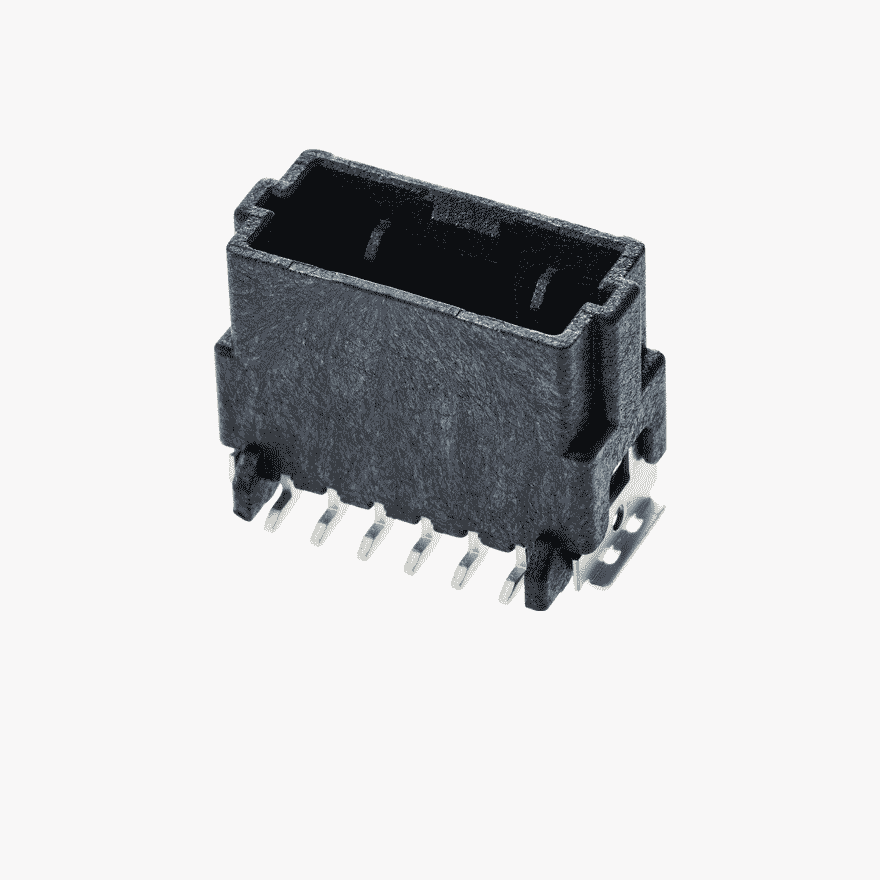

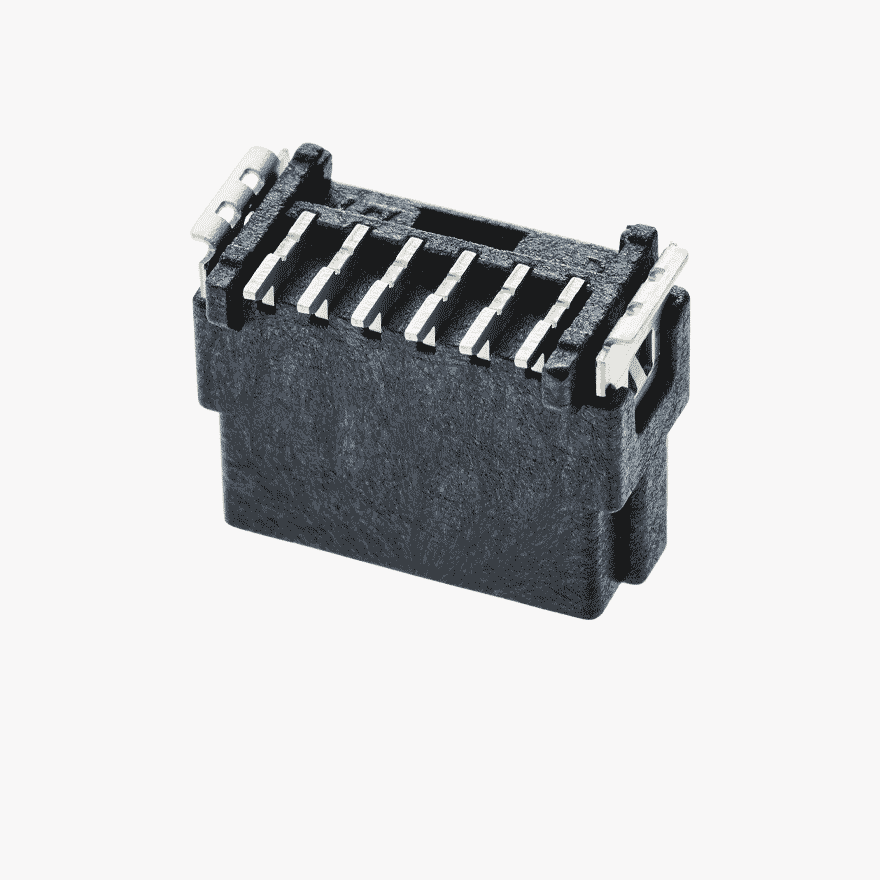

020 4Pin Male Connector Vertical Black SMT type
PRODUCT DESCRIPTION
- The blade width of male Terminal for this Connector is 0.020 inch (0.5mm)
- The terminal pitch of this connector is 2.0mm
- Reliability Test Specifications : ES91500-03, GMW3191
Technical Details
-
Pitch
(mm) 2.0 - Gender Male Connectors
- Connector Style Vertical
- Number of Positions 4
-
Current Rating
(A) 3 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-03, GMW3191
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating V0
-
Connector Size height
(mm) 12.20 -
Connector Size width
(mm) 12.00 -
Connector Size length
(mm) 8.50 -
Mated Size height
(mm) 15.20 -
Mated Size width
(mm) 12.00 -
Mated Size length
(mm) 8.95
