KH1600053-10

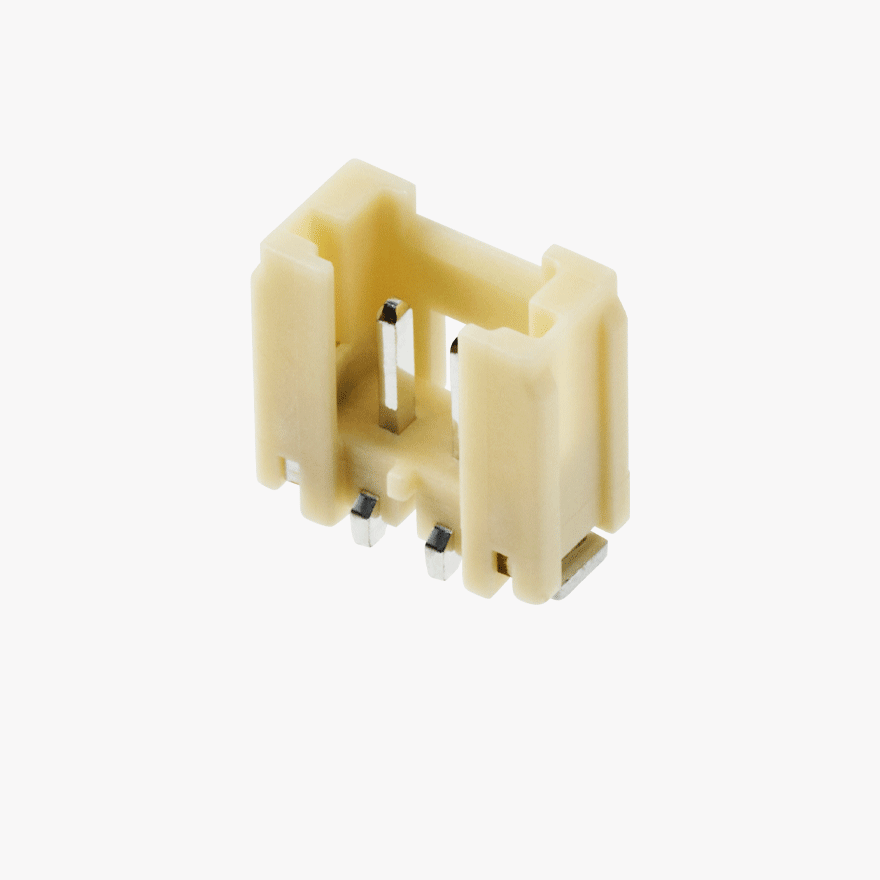

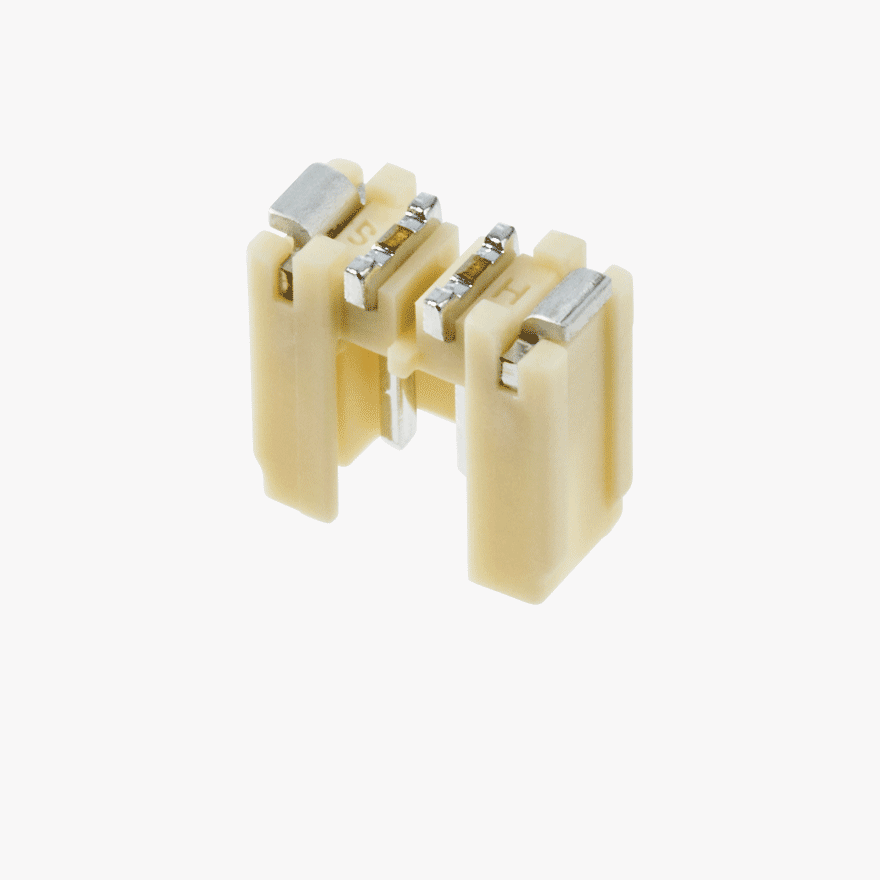

015 2pin Male Connector Vertical Natural SMT type
PRODUCT DESCRIPTION
- The blade width of male Terminal for this connector is 0.015 inch (0.4mm)
- The terminal pitch of this connector is 1.5mm
- This is small SMT connector that meets the requirement of the vehicle environment
- This is a unique connector for 0.015 inch (0.4mm) in the Korea that meets the Automotive Specifications
- Reliability Test Specification : ES91500-03
Technical Details
-
Pitch
(mm) 1.5 - Gender Male Connectors
- Connector Style Vertical
- Number of Positions 2
-
Current Rating
(A) 3 -
Contact Resistance
(MΩ (Max.)) 30 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 500 -
Temperature Range
(°C) -40 ~ +85 -
Reliability Test
Specifications ES91500-03
- Housing Material PA9T-GF33
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 2.85 -
Connector Size width
(mm) 5.92 -
Connector Size length
(mm) 5.80 -
Mated Size height
(mm) 7.36 -
Mated Size width
(mm) 5.92 -
Mated Size length
(mm) 2.85
- FILE NAME EXTENSION UPDATED DATE
- ES91500-03_PVT PDF 02/2023 Download
- FILE NAME EXTENSION UPDATED DATE
