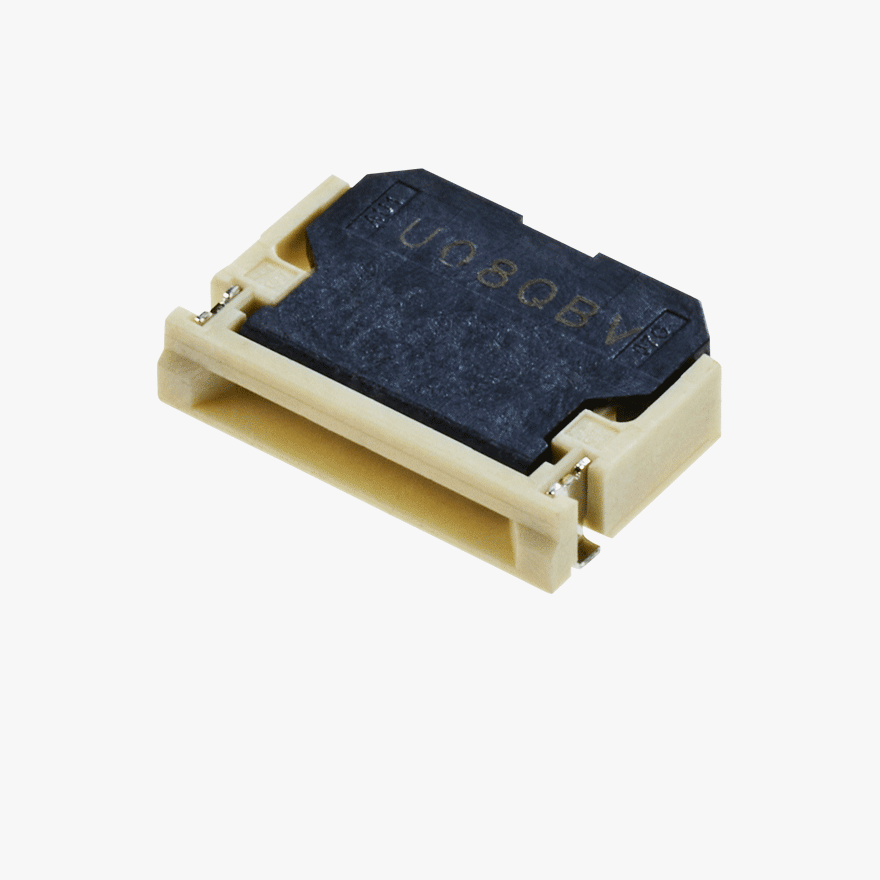

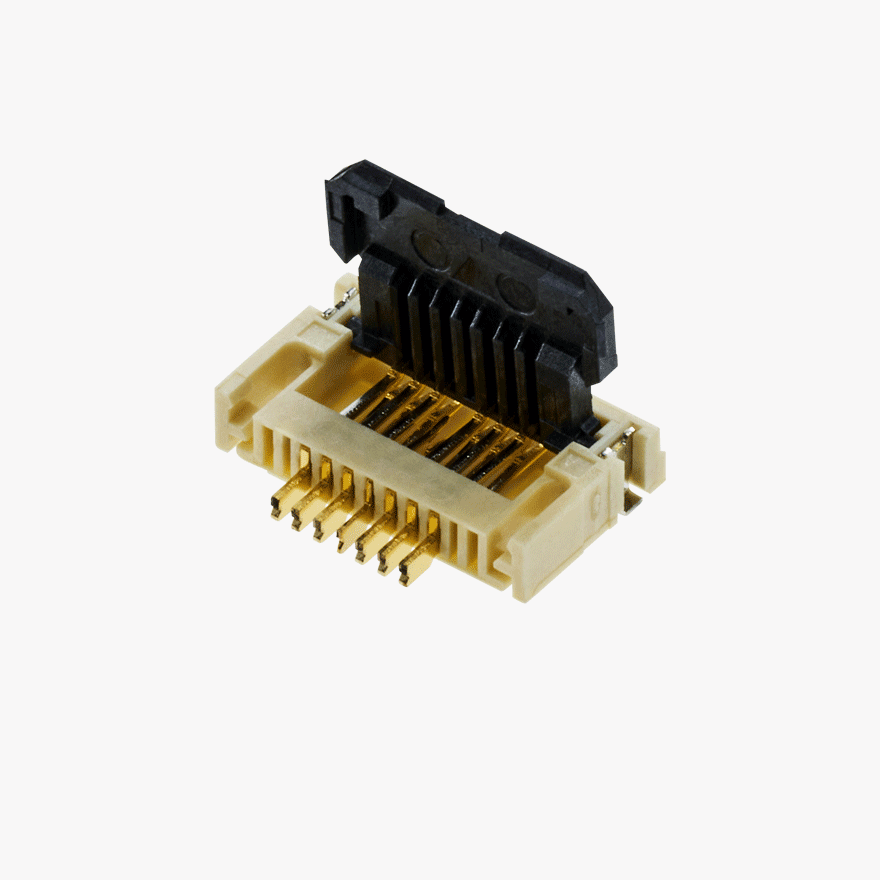

PF050-B07B-C15-B
007A – 0.5Pitch 7Pin 1.5Height Back Flip
PRODUCT DESCRIPTION
- 0.50mm Pitch, 1.50mm Height, compact design
- Easy to Insert FPC and operate Actuator Back–lock system
- High FPC Retention force with Actuator locking boss
- Capable of High Current up to 1A with Contact Terminal
- Applicable for FPC thickness is 0.3±0.03mm
Technical Details
-
Pitch
(mm) 0.50 - Gender Back Flip Connectors
- Connector Style
- Number of Positions
-
Current Rating
(A) 1.0A [Max.] -
Contact Resistance
(MΩ (Max.)) 50mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 1,000MΩ [Min.] -
Dielectric Strength
(AC V) 200V AC -
Temperature Range
(°C) -55℃ ~ 85℃
- Housing Material LCP
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 1.50 -
Connector Size width
(mm) 5.30 -
Connector Size length
(mm) 7.30 -
Mated Size height
(mm) 1.50 -
Mated Size width
(mm) 5.30 -
Mated Size length
(mm) 7.30
