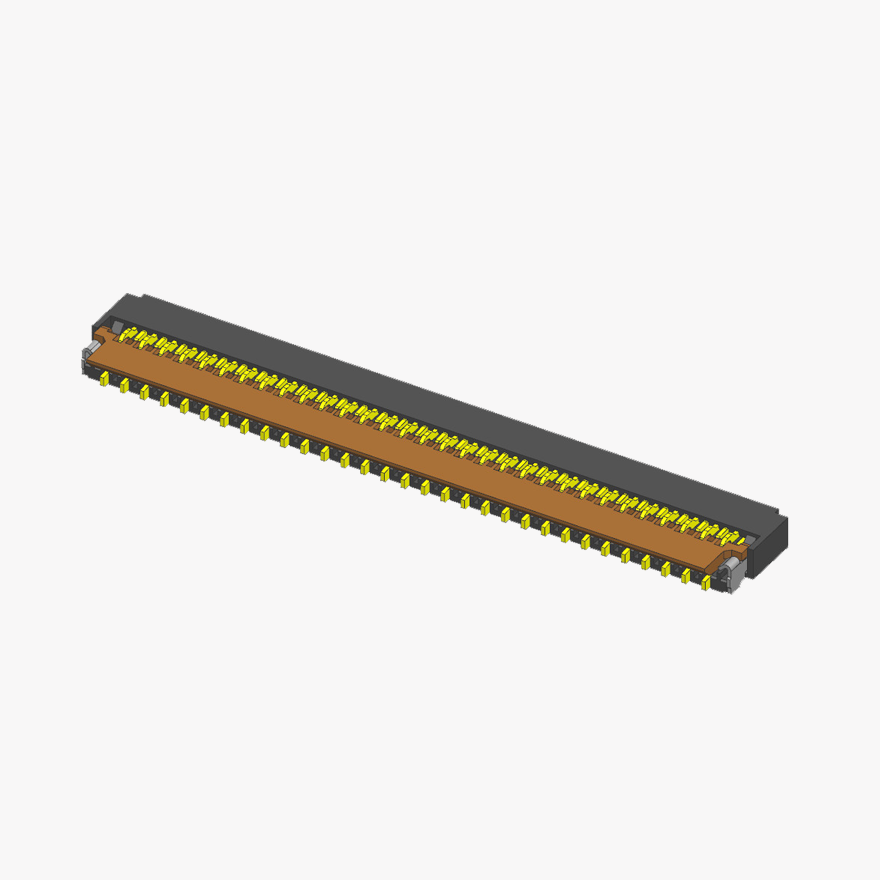

PF030-O61B-C10-H

0.3 F/F Short Series – 0.3Pitch 61Pin 1.0Height Connector

PRODUCT DESCRIPTION

  • 0.3mm Pitch, 1.0mm Height, Low-contact, Right Angle Type
  • Easy FPC Insertion (ZIF)
  • Applicable for FPC thickness is 0.20±0.03mm

Technical Details

  • Pitch(mm) 0.3
  • Gender Front Flip Connectors
  • Connector Style
  • Number of Positions
  • Current Rating(A) 0.2A [Max]
  • Contact Resistance
    (MΩ (Max.))
    50mΩ [Max.]
  • Insulation Resistance
    (MΩ (Min.))
    50mΩ [Max.]
  • Dielectric Strength
    (AC V)
    AC 200V
  • Temperature Range
    (°C)
    -35℃ ~ 85℃
  • Housing Material LCP
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    UL94V-0
  • Connector Size height
    (mm)
    1.00
  • Connector Size width
    (mm)
    3.20
  • Connector Size length
    (mm)
    19.80
  • Mated Size height
    (mm)
    1.00
  • Mated Size width
    (mm)
    3.20
  • Mated Size length
    (mm)
    19.80
