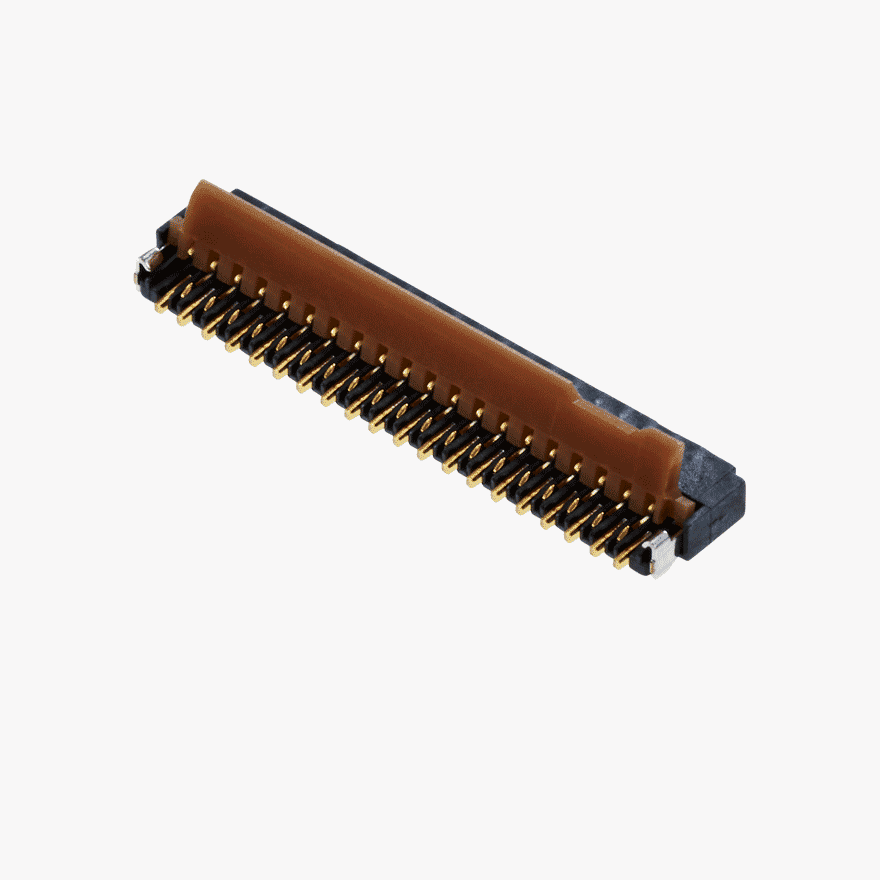

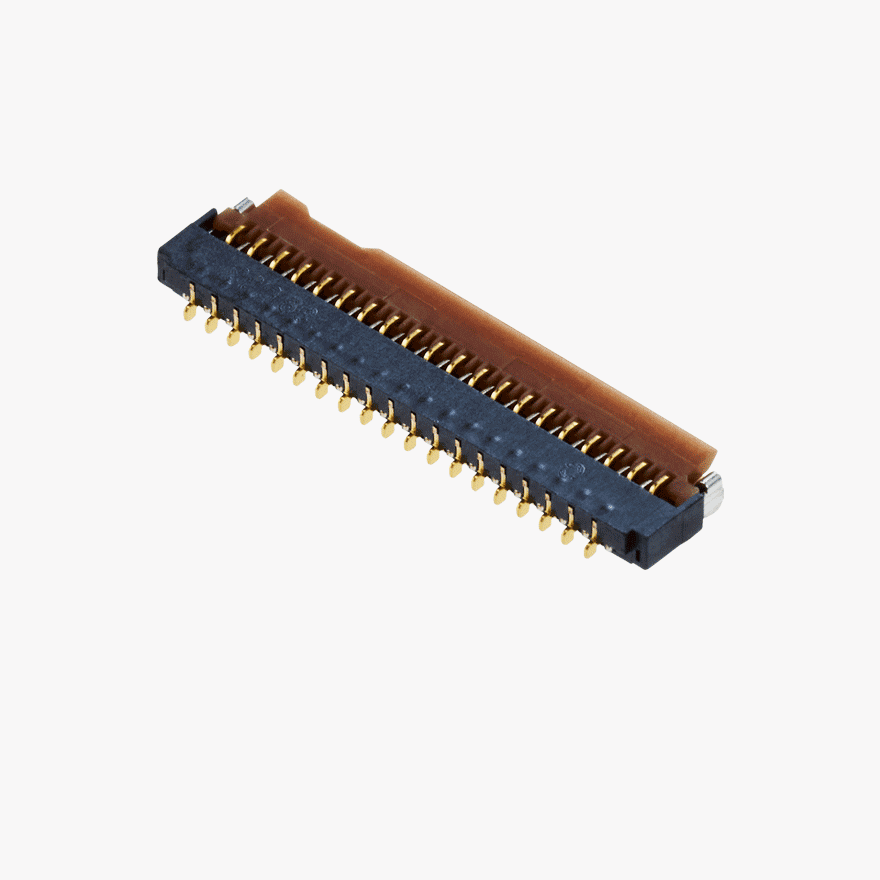

PF030-O39B-C10
0.3 F/F Short Series – 0.3Pitch 39Pin 1.0Height Connector
PRODUCT DESCRIPTION
- 0.3mm Pitch, 1.0mm Height, Low-contact, Right Angle Type
- Easy FPC Insertion (ZIF)
- Applicable for FPC thickness is 0.20±0.03mm
Technical Details
-
Pitch
(mm) 0.3 - Gender Front Flip Connectors
- Connector Style
- Number of Positions
-
Current Rating
(A) 0.2A [Max] -
Contact Resistance
(MΩ (Max.)) 50mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 50MΩ [Min.] -
Dielectric Strength
(AC V) AC 200V -
Temperature Range
(°C) -35℃ ~ 85℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 1.00 -
Connector Size width
(mm) 3.20 -
Connector Size length
(mm) 13.20 -
Mated Size height
(mm) 1.00 -
Mated Size width
(mm) 3.20 -
Mated Size length
(mm) 13.20
