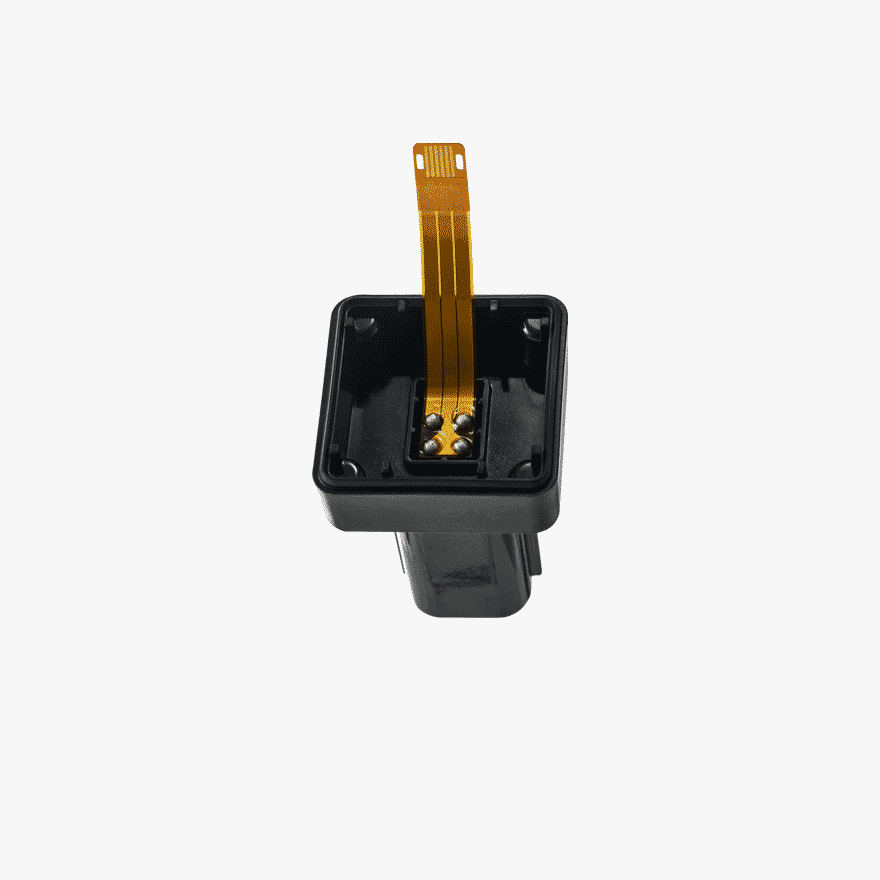

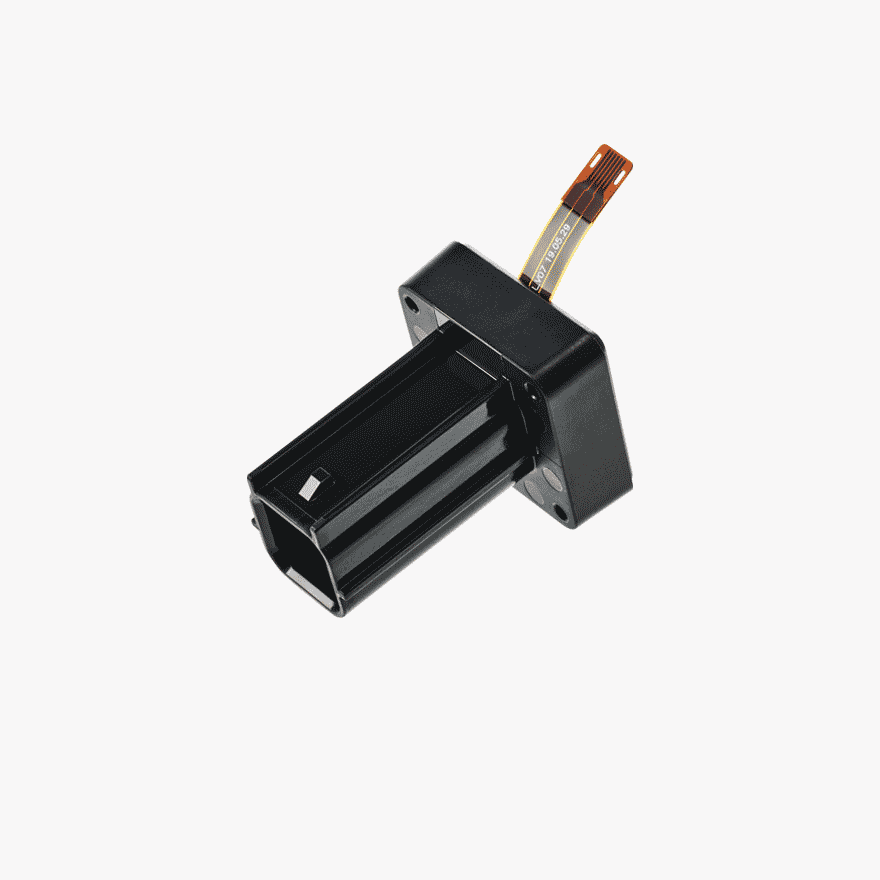

IM300-L04T-N339
VC1(Camera Module) 3.0Pitch 4Pin 33.9Height
PRODUCT DESCRIPTION
- 3.0mm Pitch, 33.9mm Height
- Performance for automotive connector systems
Technical Details
-
Pitch
(mm) 3.0 - Gender ETC
- Connector Style
- Number of Positions 4
-
Current Rating
(A) 2.5A -
Contact Resistance
(MΩ (Max.)) -
Insulation Resistance
(MΩ (Min.)) 100MΩ [Min.] -
Dielectric Strength
(AC V) AC/DC 12V -
Temperature Range
(°C) -30℃ ~ 85℃
- Housing Material
- Housing Colour
- Terminal Material
-
Housing Material UL
Rating
-
Connector Size height
(mm) 33.90 -
Connector Size width
(mm) 23.40 -
Connector Size length
(mm) 23.40 -
Mated Size height
(mm) -
Mated Size width
(mm) -
Mated Size length
(mm)
