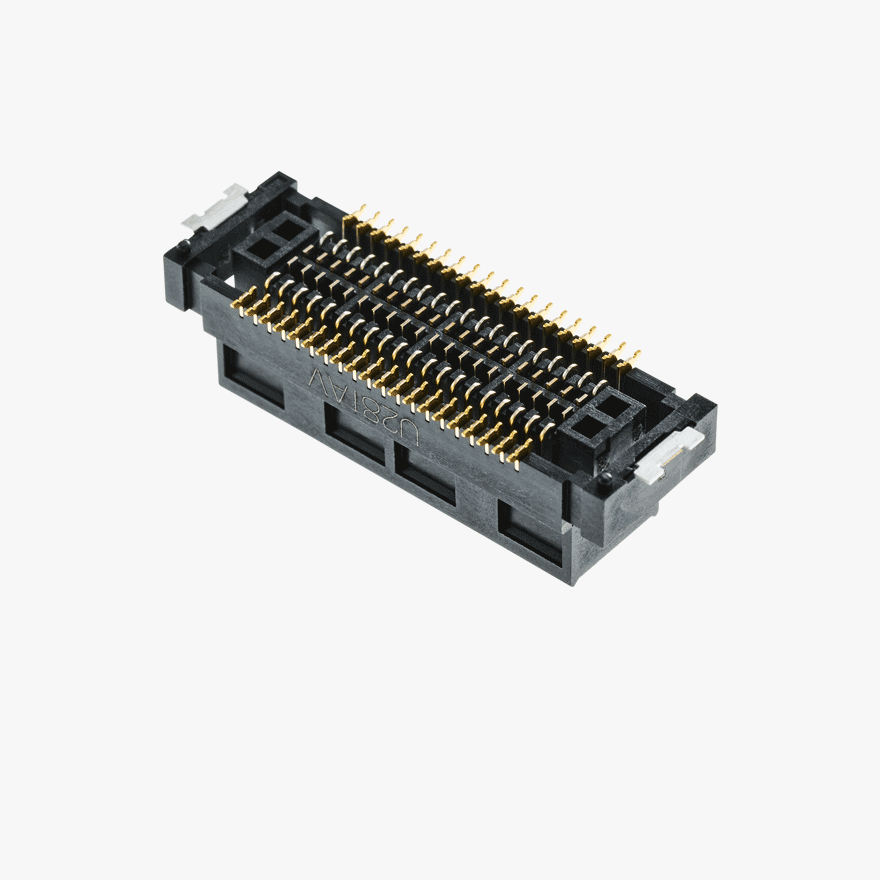

BF100-V40T-C159

VB1 Series(Automotive) 100Pitch 40Pin 159Height Female

PRODUCT DESCRIPTION

  • Floating structure for absorbing Vibration in the X, Y, Z direction
  • Floating range ±0.5mm in X, Y direction
  • Large guide chamfer for mating misalignment prevention
  • Double Contact, Mating length 1.5mm for Contact stability
  • 1.0mm Pitch, 15.9mm mating height

Technical Details

  • Pitch(mm) 1.00
  • Gender Female Connectors
  • Connector Style
  • Number of Positions 40
  • Current Rating(A) 0.5A (Max. 1.5A)
  • Contact Resistance
    (MΩ (Max.))
    50mΩ [Max.]
  • Insulation Resistance
    (MΩ (Min.))
    100MΩ [Min.]
  • Dielectric Strength
    (AC V)
    500V AC(RMS)
  • Temperature Range
    (°C)
    -40℃ ~ 105℃
  • Housing Material LCP
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    UL94V-0
  • Connector Size height
    (mm)
    15.95
  • Connector Size width
    (mm)
    15.80
  • Connector Size length
    (mm)
    32.50
  • Mated Size height
    (mm)
    15.95
  • Mated Size width
    (mm)
    15.80
  • Mated Size length
    (mm)
    32.50
