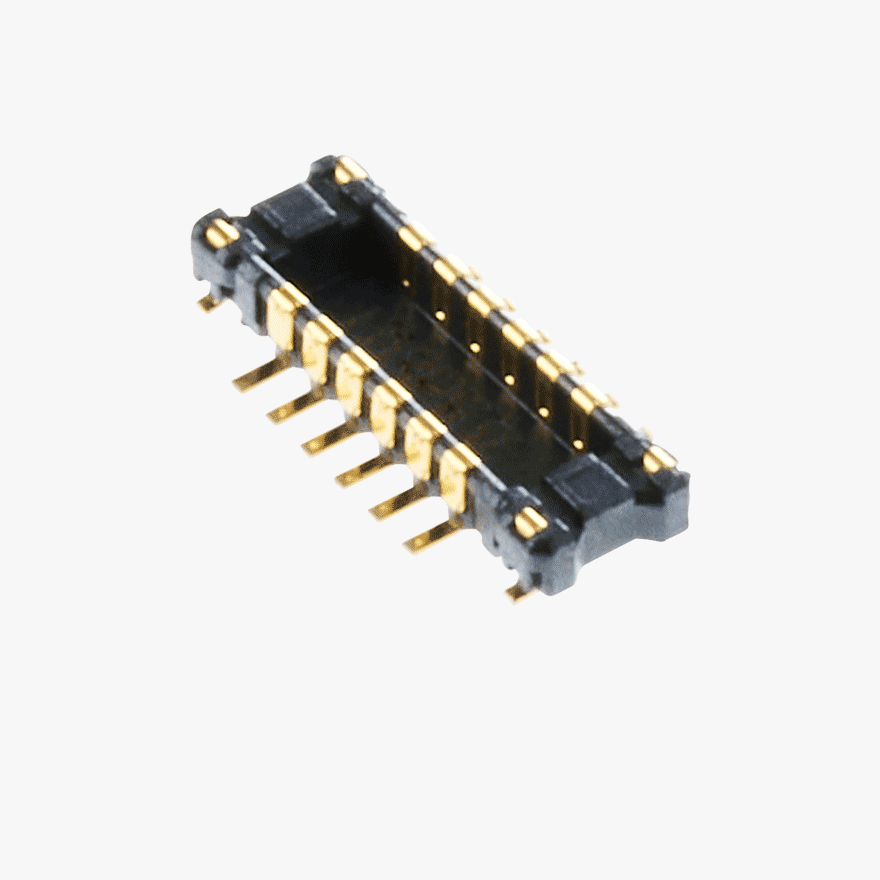

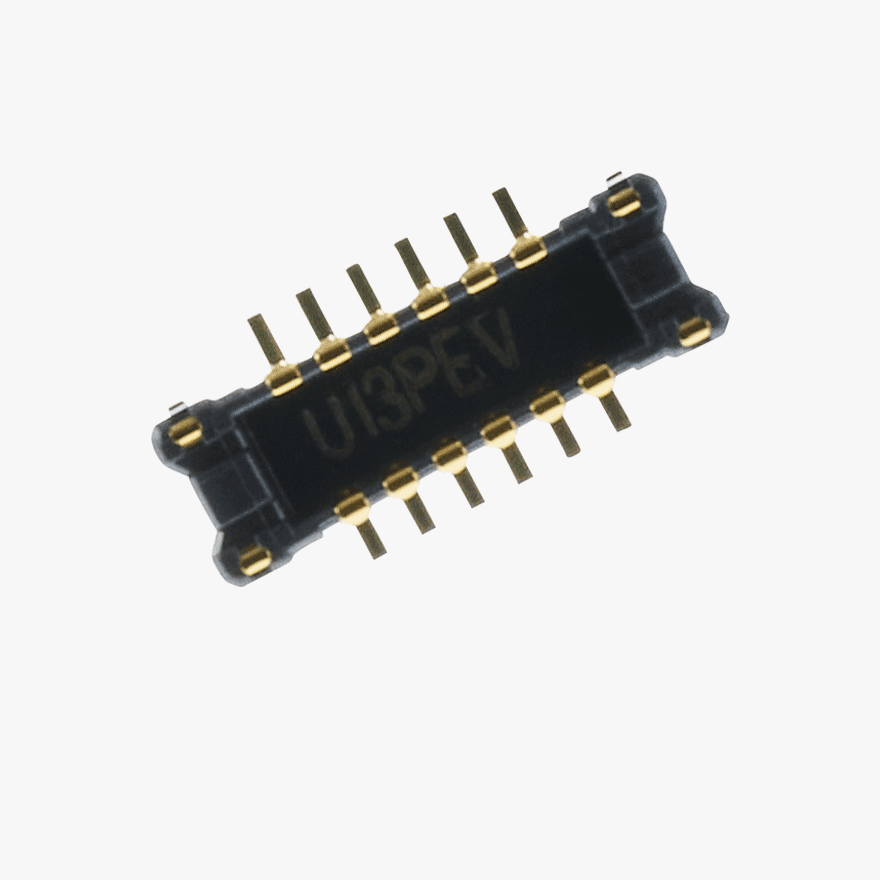

BM040-I12B-C08-A

SW Series 0.40Pitch 12Pin 0.8Height Male

PRODUCT DESCRIPTION


Technical Details

  • Pitch(mm) 0.40
  • Gender Male Connectors
  • Connector Style
  • Number of Positions 12
  • Current Rating(A) 0.3A
  • Contact Resistance
    (MΩ (Max.))
    60mΩ [Max.]
  • Insulation Resistance
    (MΩ (Min.))
    1,000MΩ [Min.]
  • Dielectric Strength
    (AC V)
    250V AC(RMS)
  • Temperature Range
    (°C)
    -55℃ ~ 85℃
  • Housing Material LCP
  • Housing Colour BLACK
  • Terminal Material
  • Housing Material UL
    Rating
    UL94V-0
  • Connector Size height
    (mm)
    0.80
  • Connector Size width
    (mm)
    2.50
  • Connector Size length
    (mm)
    4.90
  • Mated Size height
    (mm)
    0.80
  • Mated Size width
    (mm)
    2.50
  • Mated Size length
    (mm)
    4.90
