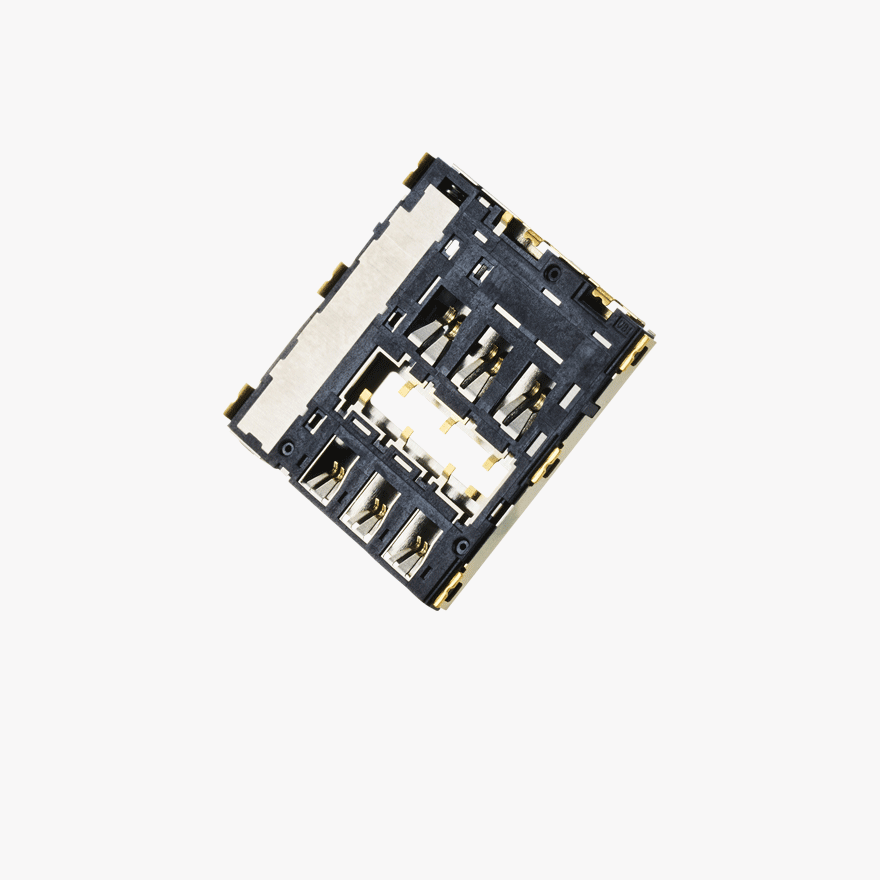

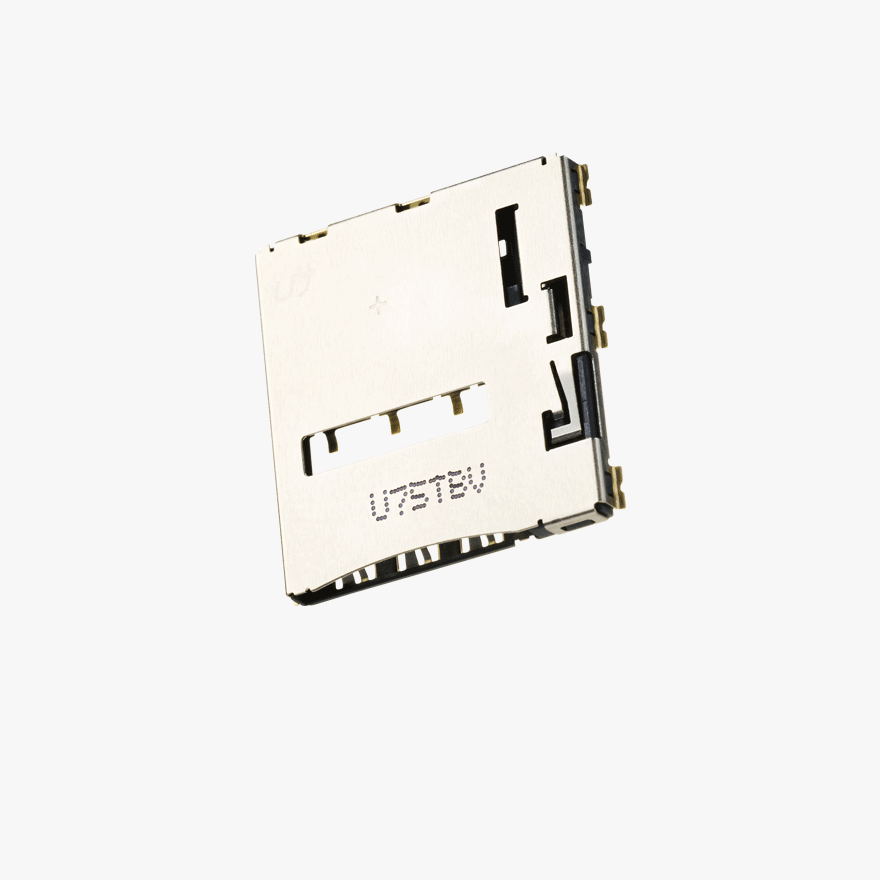

NS254-C07B-C12
SM NANO SIM 1.23Height
PRODUCT DESCRIPTION
- NANO SIM Card Socket
- Push In – Push Out (Simple Installation)
- Application structure Card Detect Switch
Technical Details
-
Pitch
(mm) 2.54 - Gender ETC
- Connector Style
- Number of Positions 6
-
Current Rating
(A) 0.5A/Pin -
Contact Resistance
(MΩ (Max.)) CONTACT 150mΩ [Max.] & DETECT 200mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 1,000MΩ [Min.] -
Dielectric Strength
(AC V) AC 500V -
Temperature Range
(°C) '-30℃ ~ 85℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 1.23 -
Connector Size width
(mm) 13.65 -
Connector Size length
(mm) 13.25 -
Mated Size height
(mm) 1.23 -
Mated Size width
(mm) 13.65 -
Mated Size length
(mm) 14.25
