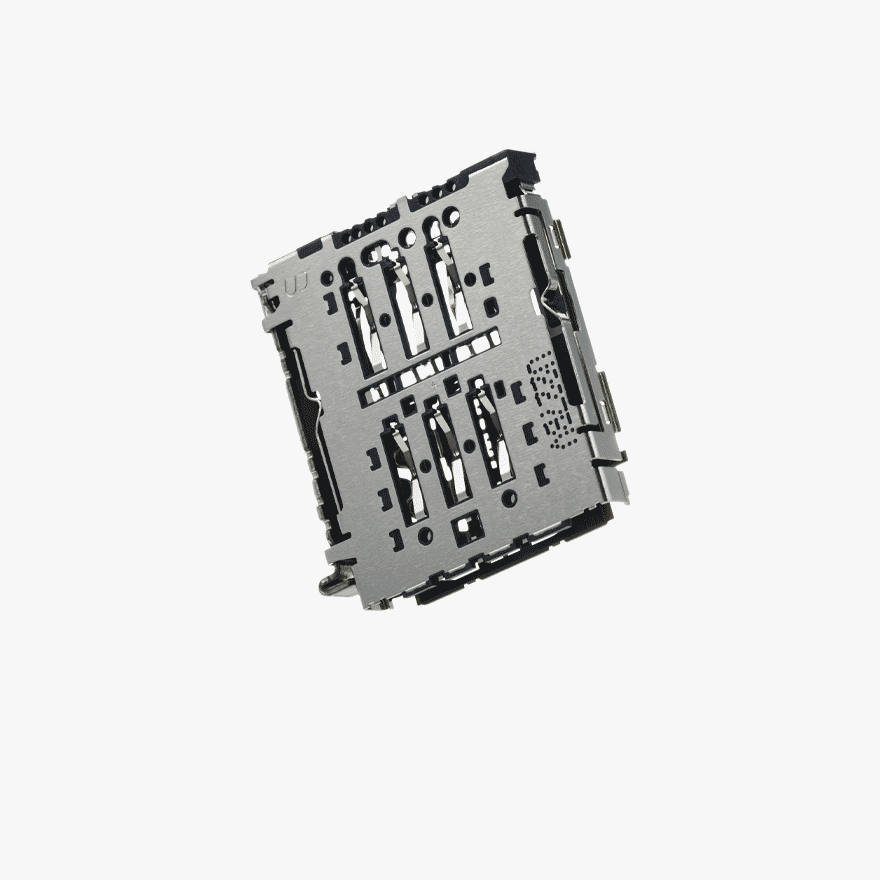

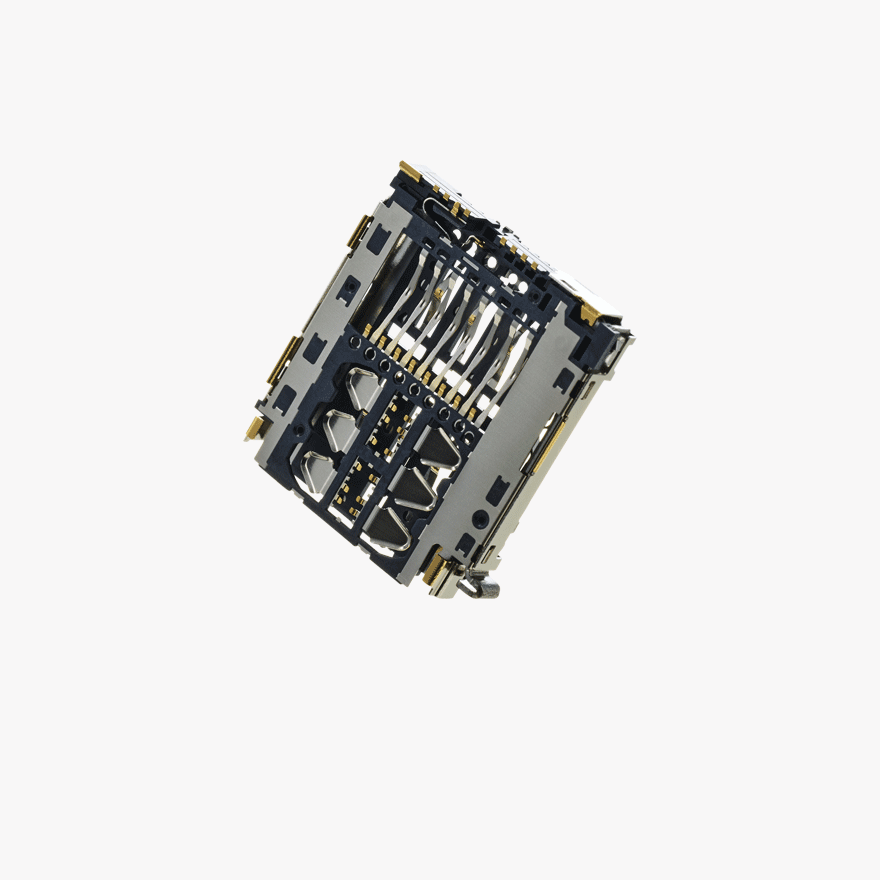

TS254-C21B-C26-A

S05 3in2 Tray 2.58Height

PRODUCT DESCRIPTION

  • 3in2 Stack Mold Tray Socket
  • SD & SIM Terminal deformation prevention structure
  • TRAY reverse insertion prevention structure
  • Switch ON-OFF Structure
  • All-in-one Cover & Latch

Technical Details

  • Pitch(mm) 2.54
  • Gender ETC
  • Connector Style
  • Number of Positions 21
  • Current Rating(A) 0.5A/Pin
  • Contact Resistance
    (MΩ (Max.))
    100mΩ [Max.]
  • Insulation Resistance
    (MΩ (Min.))
    1,000MΩ [Min.]
  • Dielectric Strength
    (AC V)
    AC 500V
  • Temperature Range
    (°C)
    -40℃ ~ 85℃
  • Housing Material LCP
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    UL94V-0
  • Connector Size height
    (mm)
    2.58
  • Connector Size width
    (mm)
    16.18
  • Connector Size length
    (mm)
    17.73
  • Mated Size height
    (mm)
    2.58
  • Mated Size width
    (mm)
    16.18
  • Mated Size length
    (mm)
    17.73
