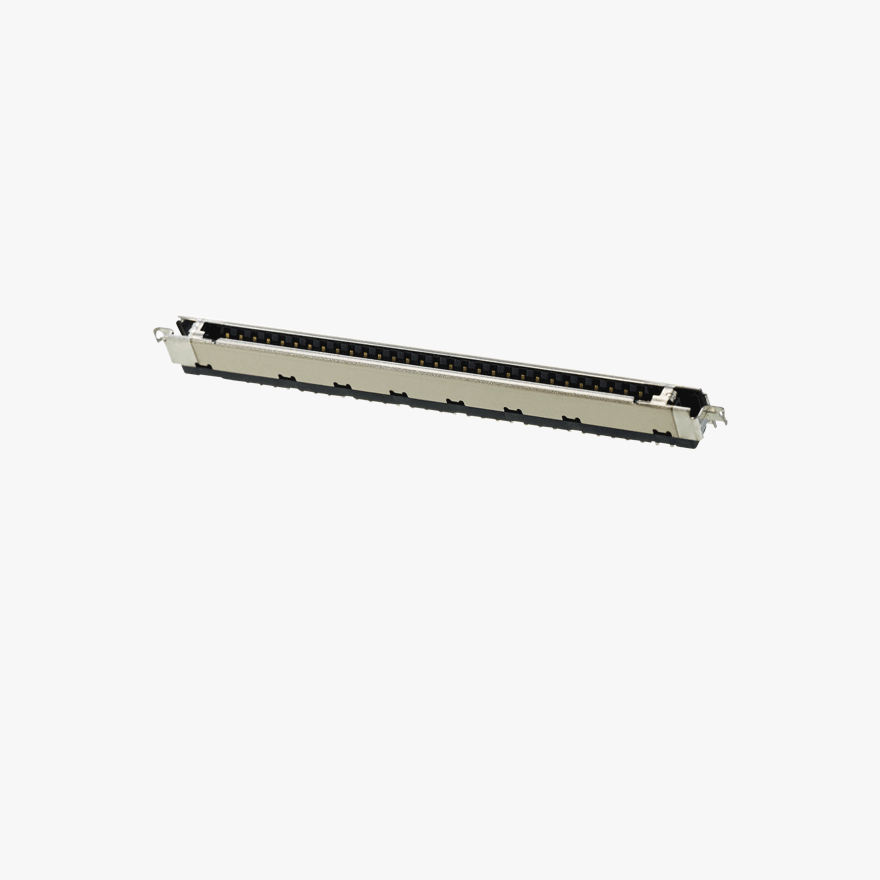

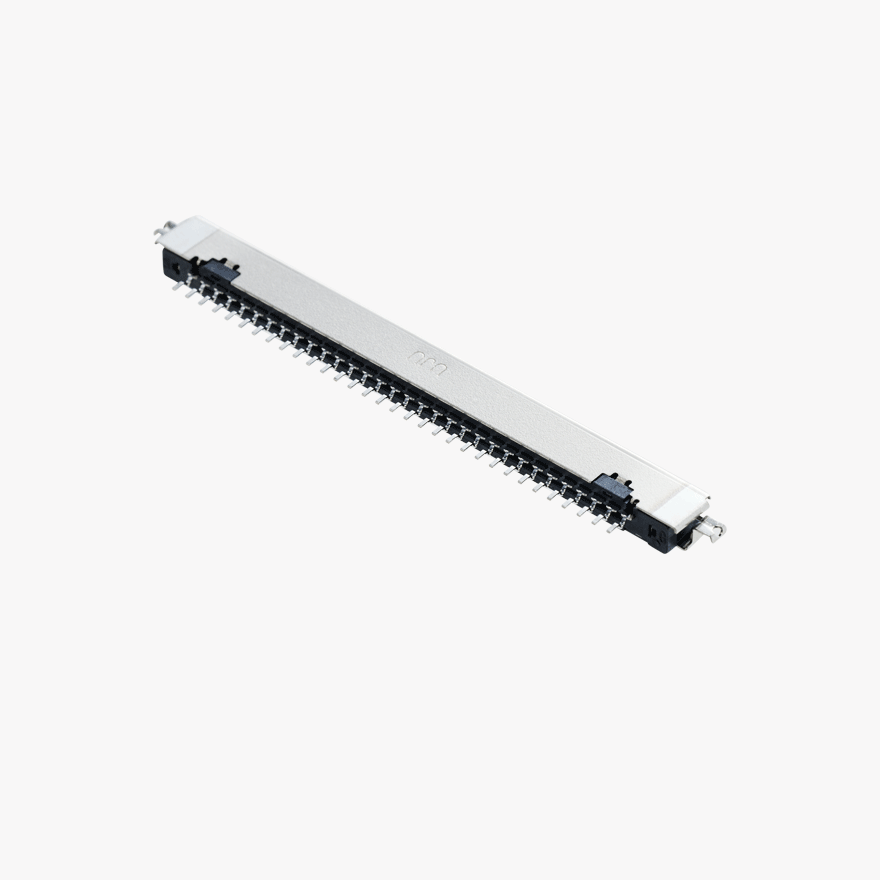

IS100-L30R-C23
POWER UP Series(Reverse) – 1.0Pitch 30Pin 2.25Height
PRODUCT DESCRIPTION
- 0.5mm pitch, 2.25mm height, Horizontal offset type connector
- Widely used in a variety of markets including PC, TV etc.
- Easy mating, 30 cycle durability
- High data rate transfer
- Anti-reverse mating design
Technical Details
-
Pitch
(mm) 1.00 - Gender Female Connectors
- Connector Style
- Number of Positions
-
Current Rating
(A) 1.0A/Pin (Applicable Wire : AWG #30) -
Contact Resistance
(MΩ (Max.)) 40mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 100MΩ [Min.] -
Dielectric Strength
(AC V) AC 500V -
Temperature Range
(°C) '-35℃ ~ 85℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 2.25 -
Connector Size width
(mm) 4.90 -
Connector Size length
(mm) 40.00 -
Mated Size height
(mm) 2.25 -
Mated Size width
(mm) 4.90 -
Mated Size length
(mm) 40.00
