KH1700029-70

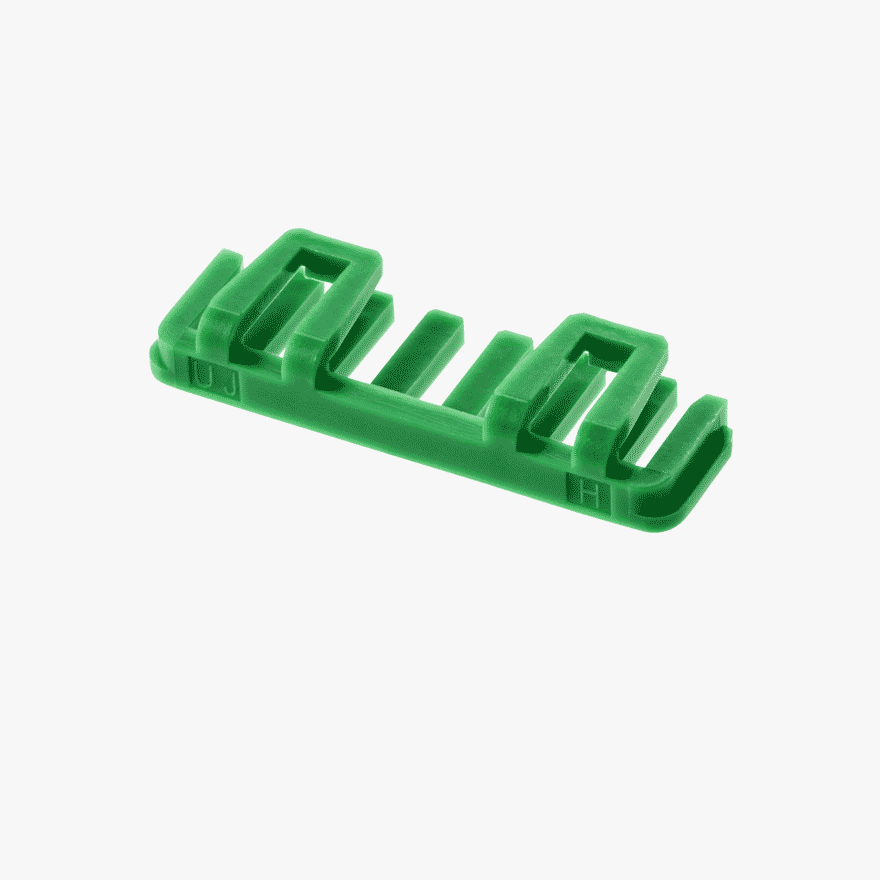

PCB Slot 6Pin Female Connector for TPA & CPA Green
PRODUCT DESCRIPTION
- This is used only female connector without male.
- It is connecting the wire to board. (Slot Type)
- The terminal pitch is 2.5mm.
- Applicable PCB thickness is 1.6mm for Slot area
- Optional Part for Horizontal : T/CPA
- Reliability Test Specifications : ES91500-03, GMW3191, LV214, USCAR-2
Technical Details
-
Pitch
(mm) 2.5 - Gender Female Connectors
- Connector Style
- Number of Positions 6
-
Current Rating
(A) 3 -
Contact Resistance
(MΩ (Max.)) 10 -
Insulation Resistance
(MΩ (Min.)) 100 -
Dielectric Strength
(AC V) 1000 -
Temperature Range
(°C) -40 ~ +125 -
Reliability Test
Specifications ES91500-03, GMW3191, LV214, USCAR-2
- Housing Material PBT
- Housing Colour Green
- Terminal Material
-
Housing Material UL
Rating HB
-
Connector Size height
(mm) 3.20 -
Connector Size width
(mm) 18.60 -
Connector Size length
(mm) 5.90 -
Mated Size height
(mm) -
Mated Size width
(mm) -
Mated Size length
(mm)
