KH1700027-70

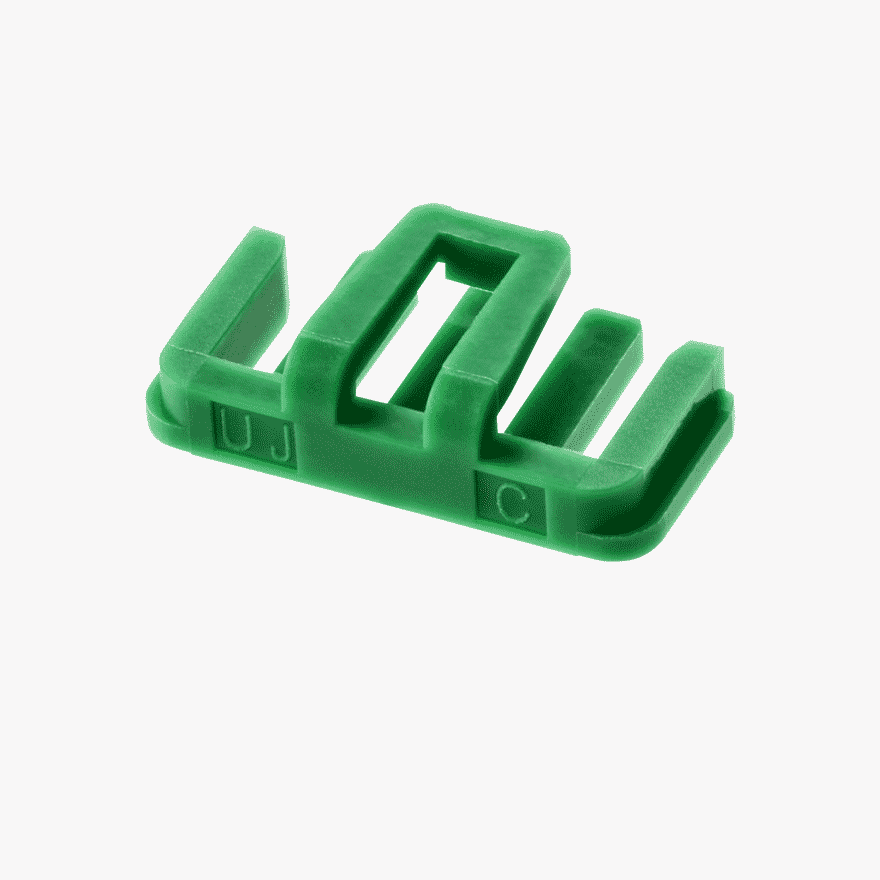

PCB Slot 3Pin Female Connector for TPA & CPA Green

PRODUCT DESCRIPTION

  • This is used only female connector without male.
  • It is connecting the wire to board. (Slot Type)
  • The terminal pitch is 2.5mm.
  • Applicable PCB thickness is 1.6mm for Slot area
  • Optional Part for Horizontal : T/CPA
  • Reliability Test Specifications : ES91500-03, GMW3191, LV214, USCAR-2

Technical Details

  • Pitch(mm) 2.5
  • Gender Female Connectors
  • Connector Style
  • Number of Positions 3
  • Current Rating(A) 3
  • Contact Resistance
    (MΩ (Max.))
    10
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1000
  • Temperature Range
    (°C)
    -40 ~ +125
  • Reliability Test
    Specifications
    ES91500-03, GMW3191, LV214, USCAR-2
  • Housing Material PBT
  • Housing Colour Green
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    3.20
  • Connector Size width
    (mm)
    11.10
  • Connector Size length
    (mm)
    5.90
  • Mated Size height
    (mm)
  • Mated Size width
    (mm)
  • Mated Size length
    (mm)
  • FILE NAME EXTENSION UPDATED DATE
  • KH1700027-70_2D_pdf PDF 01/2023 Download
  • KH1700027-70_3D STEP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-00_PVT PDF 02/2023 Download
  • ES91500-03_PVT PDF 02/2023 Download
  • LV214_PVT PDF 02/2023 Download
  • GMW3191_PVT PDF 02/2023 Download
