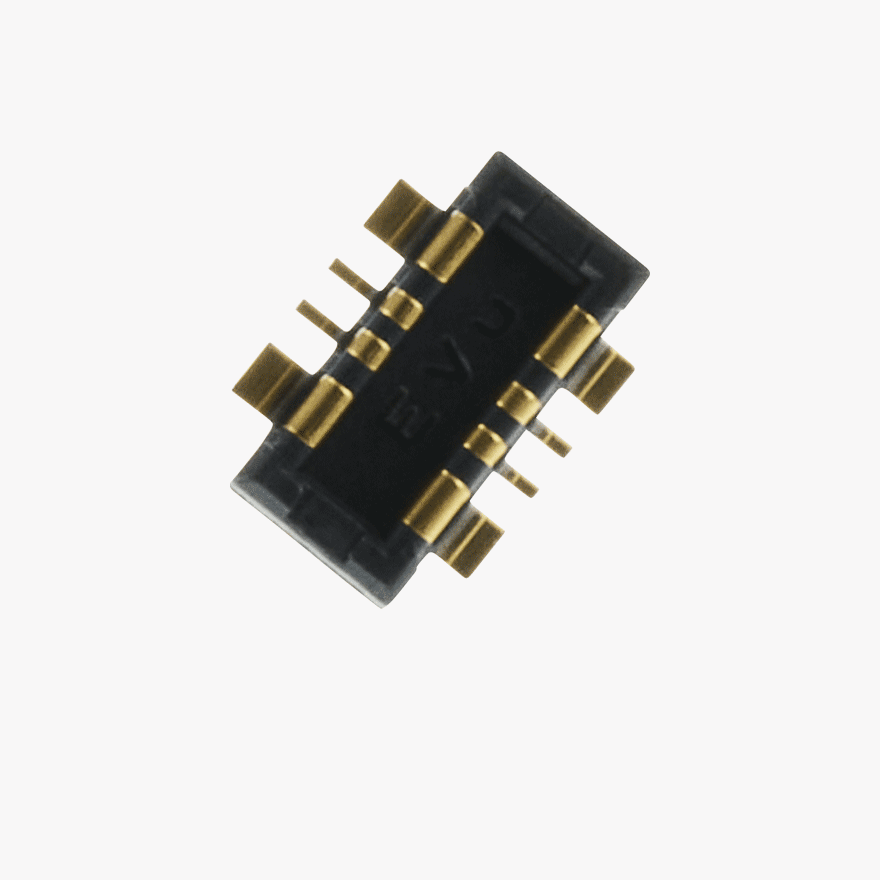

BM240-I08B-C08
PA Series 0.40Pitch 8Pin 0.8Height Male
PRODUCT DESCRIPTION
- For contact stability, Double Contact and Bellows Type Contact Structure
- High current(3A) for Power Contact
- 0.75mm slim stacking design for saving space
- APPLICATION : Battery section of miniature mobile devices
- Male Full-Insert Structure
Technical Details
-
Pitch
(mm) 0.40 - Gender Male Connectors
- Connector Style
- Number of Positions 8
-
Current Rating
(A) Signal 0.3A/Pin & Power 3.0A/Pin -
Contact Resistance
(MΩ (Max.)) Signal 50mΩ [Max.] & Power 10mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 100MΩ [Min.] -
Dielectric Strength
(AC V) 250V AC(RMS) -
Temperature Range
(°C) -35℃ ~ 85℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 0.75 -
Connector Size width
(mm) 2.50 -
Connector Size length
(mm) 4.20 -
Mated Size height
(mm) 0.75 -
Mated Size width
(mm) 2.50 -
Mated Size length
(mm) 4.20
