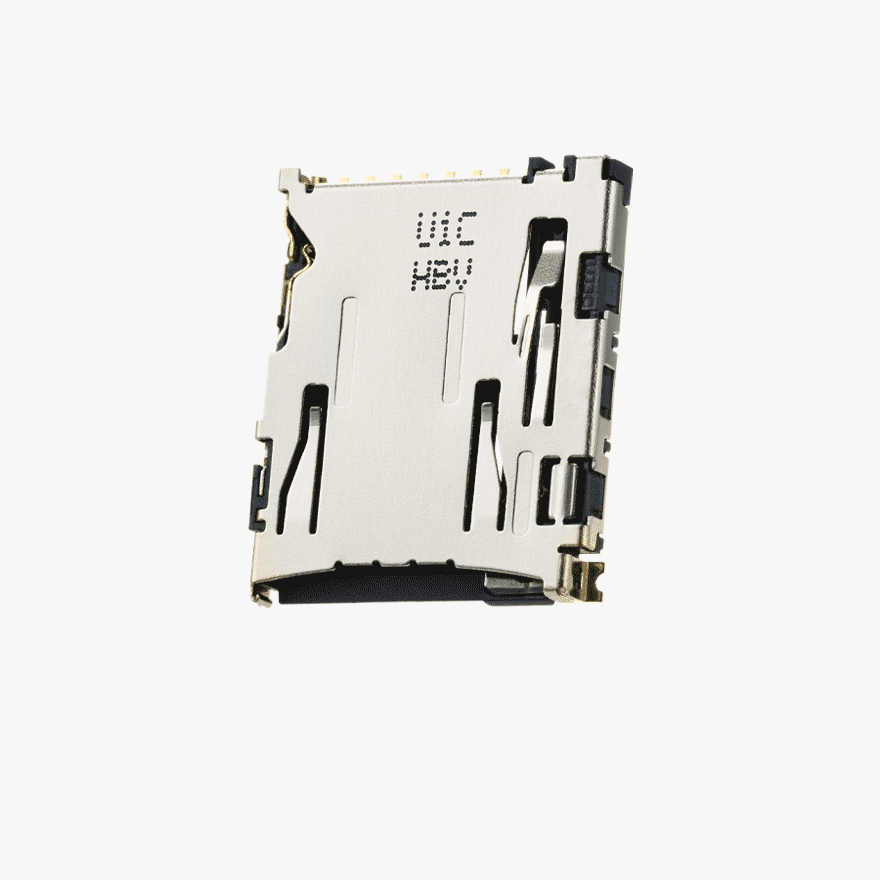

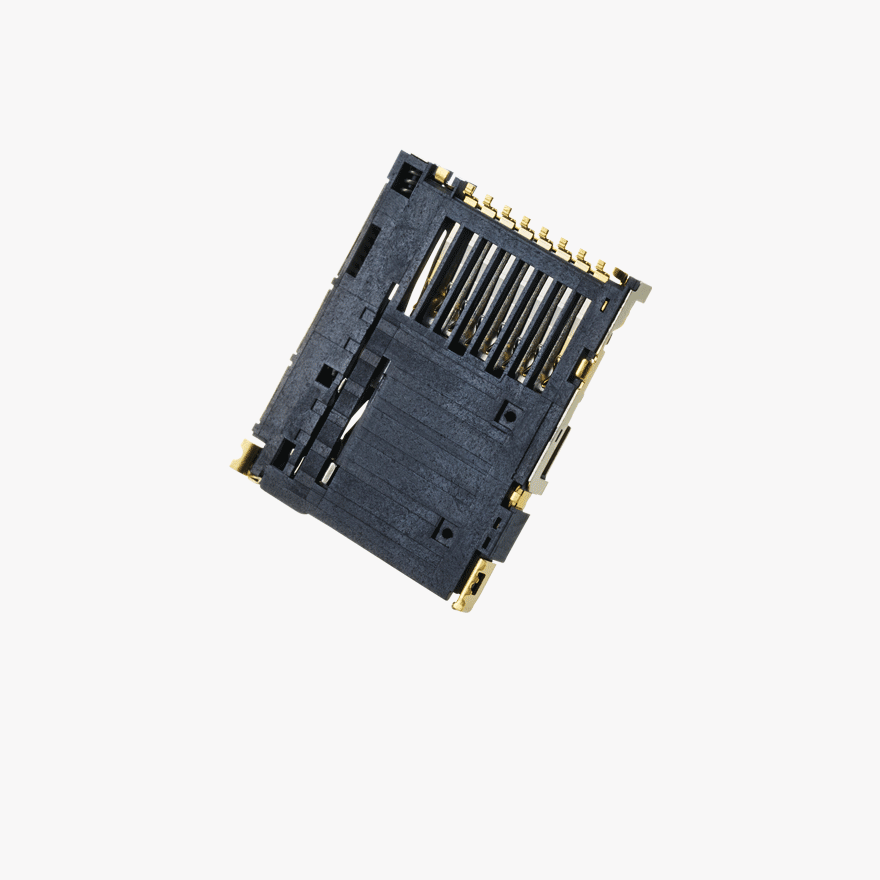

MS100-C10B-C16

MICRO SD CARD 1.68Height

PRODUCT DESCRIPTION

  • micro-SD Card Socket
  • Push In – Push Out (Simple Installation)
  • Application structure Card Detect Switch

Technical Details

  • Pitch(mm) 1.10
  • Gender ETC
  • Connector Style
  • Number of Positions 8
  • Current Rating(A) 0.5A/Pin
  • Contact Resistance
    (MΩ (Max.))
    60mΩ [Max.]
  • Insulation Resistance
    (MΩ (Min.))
    1,000MΩ [Min.]
  • Dielectric Strength
    (AC V)
    AC 500V
  • Temperature Range
    (°C)
    -25℃ ~ 85℃
  • Housing Material LCP
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    UL94V-0
  • Connector Size height
    (mm)
    1.68
  • Connector Size width
    (mm)
    15.95
  • Connector Size length
    (mm)
    13.85
  • Mated Size height
    (mm)
    1.68
  • Mated Size width
    (mm)
    15.95
  • Mated Size length
    (mm)
    13.85
