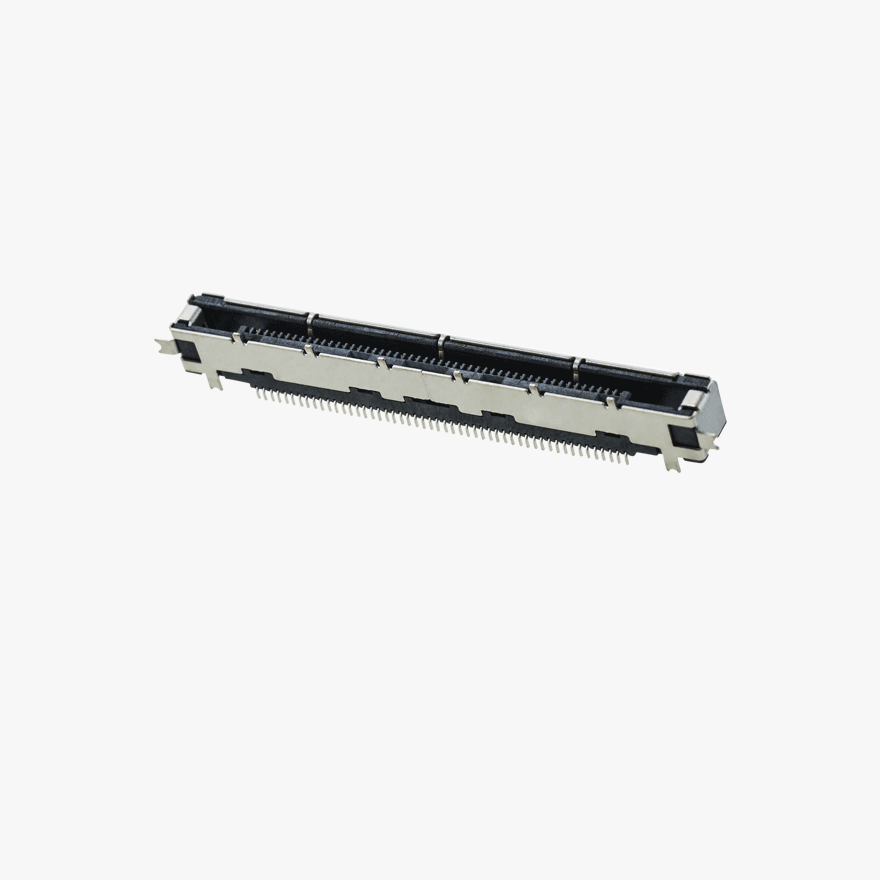

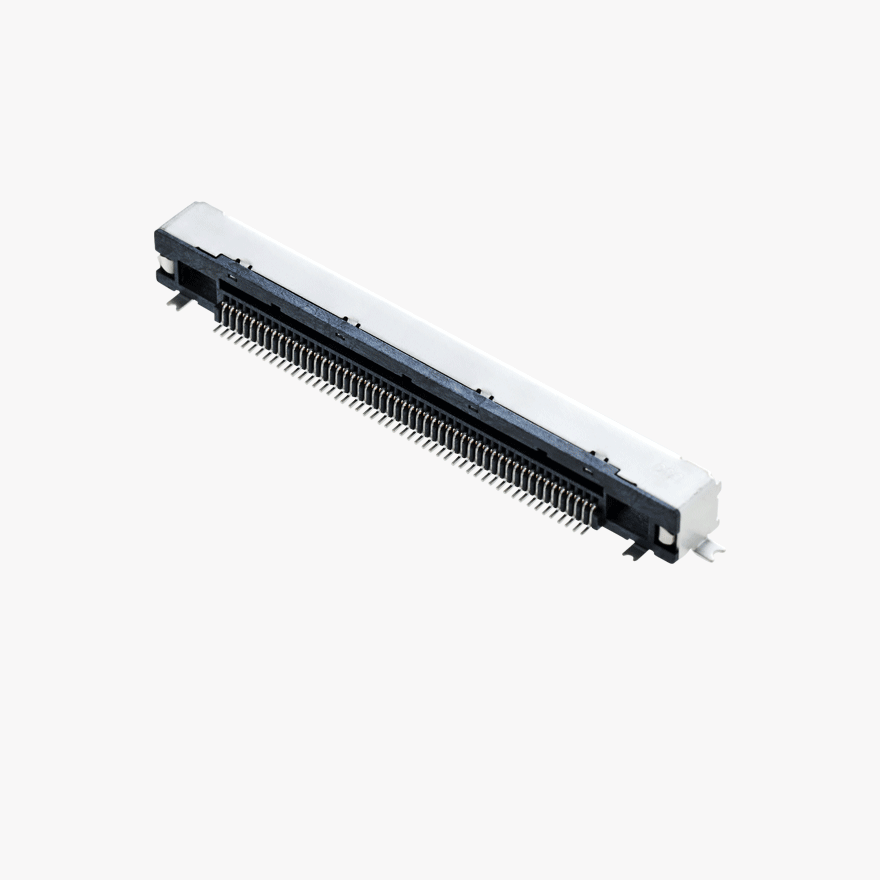

IS050-C51B-C39-S
LCD 0.5Pitch 3.85H Series – 0.5 Pitch 41/51Pin Header 3.85Height
PRODUCT DESCRIPTION
Technical Details
-
Pitch
(mm) 0.50 - Gender Female Connectors
- Connector Style
- Number of Positions 41
-
Current Rating
(A) AWG #30 , #32 , #36 0.8A/Pin -
Contact Resistance
(MΩ (Max.)) 80mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 100MΩ [Min.] -
Dielectric Strength
(AC V) AC 500V -
Temperature Range
(°C) '-25℃ ~ 85℃
- Housing Material LCP
- Housing Colour Black
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 3.85 -
Connector Size width
(mm) 3.75 -
Connector Size length
(mm) 37.85 -
Mated Size height
(mm) 3.85 -
Mated Size width
(mm) 3.75 -
Mated Size length
(mm) 37.85
