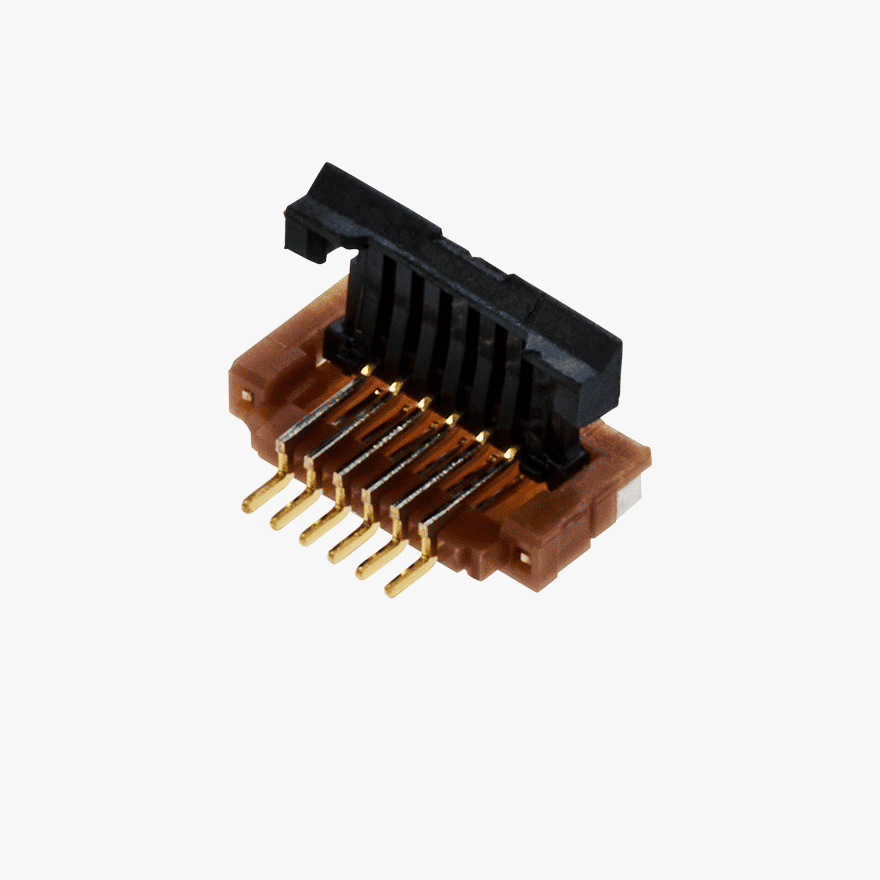

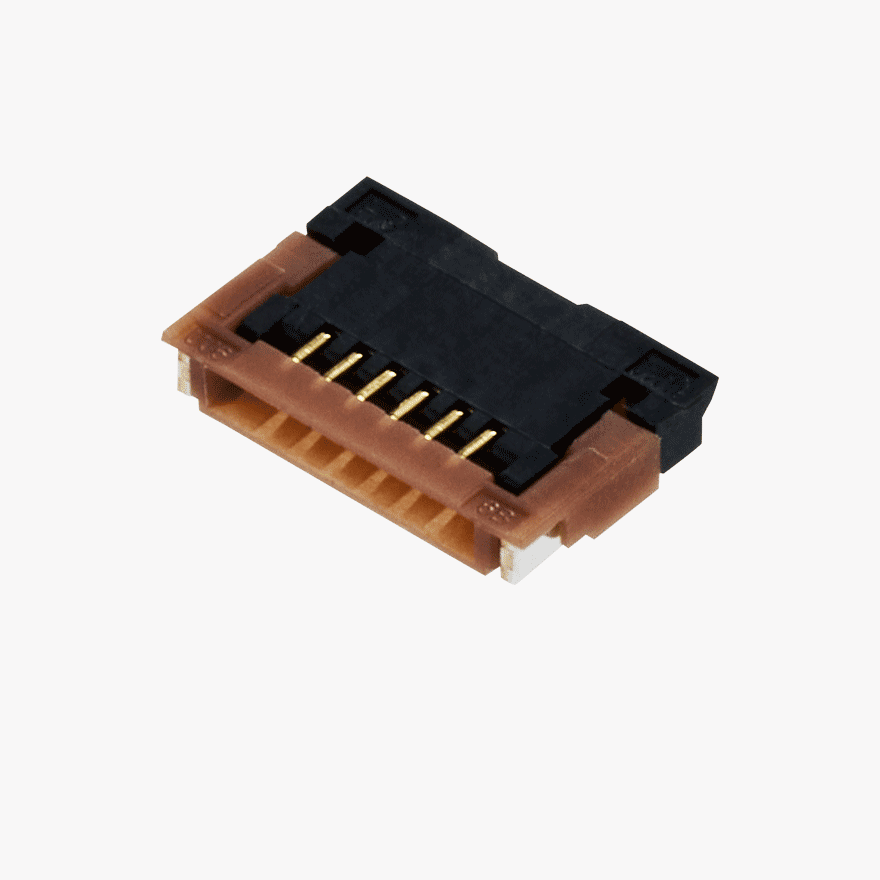

PF050-B**B-C09-A
0.5 B/F Series – 0.5Pitch 4/6Pin 0.9Height Back Flip
PRODUCT DESCRIPTION
- 0.5mm Pitch, 0.9mm Height, Low-contact, Right Angle Type, ZIF
- Easy to Insert FPC and operate Actuator Back–lock system
- High FPC Retention force with Cable Lock System
- Applicable for FPC thickness is 0.20±0.03mm
Technical Details
-
Pitch
(mm) 0.50 - Gender Back Flip Connectors
- Connector Style
- Number of Positions 4
-
Current Rating
(A) 0.4A [Max.] -
Contact Resistance
(MΩ (Max.)) 50mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 1,000MΩ [Min.] -
Dielectric Strength
(AC V) AC 200V -
Temperature Range
(°C) -40℃ ~ 85℃
- Housing Material
- Housing Colour
- Terminal Material
-
Housing Material UL
Rating
-
Connector Size height
(mm) 0.90 -
Connector Size width
(mm) 3.70 -
Connector Size length
(mm) 5.40 -
Mated Size height
(mm) 0.90 -
Mated Size width
(mm) 3.70 -
Mated Size length
(mm) 5.40
