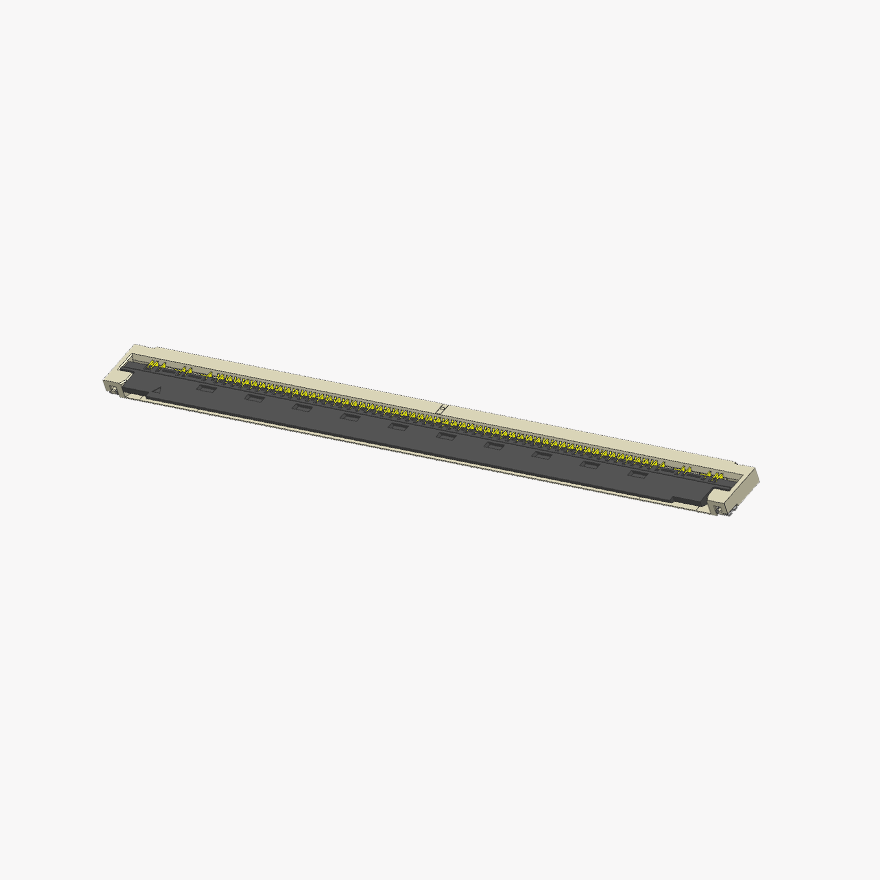

PF040-O110B-C15
FK – 0.4Pitch 110Pin 1.5Height
PRODUCT DESCRIPTION
- Suitable for high current and Space-saving design
- Power Terminal allowable up to 13A, 0.4mm Pitch Signal Contact
- Reliable 2-point Signal contact design
- Applicable for FPC/FFC thickness is 0.30±0.03mm
Technical Details
-
Pitch
(mm) 0.40 - Gender Front Flip Connectors
- Connector Style
- Number of Positions
-
Current Rating
(A) Signal 0.4A [Max.] & Power 13A [Max.] -
Contact Resistance
(MΩ (Max.)) 100mΩ [Max.] -
Insulation Resistance
(MΩ (Min.)) 500MΩ [Min.] -
Dielectric Strength
(AC V) AC 120V -
Temperature Range
(°C) -35℃ ~ 85℃
- Housing Material LCP
- Housing Colour Natural
- Terminal Material
-
Housing Material UL
Rating UL94V-0
-
Connector Size height
(mm) 1.50 -
Connector Size width
(mm) 5.50 -
Connector Size length
(mm) 59.62 -
Mated Size height
(mm) 1.50 -
Mated Size width
(mm) 5.50 -
Mated Size length
(mm) 59.62
