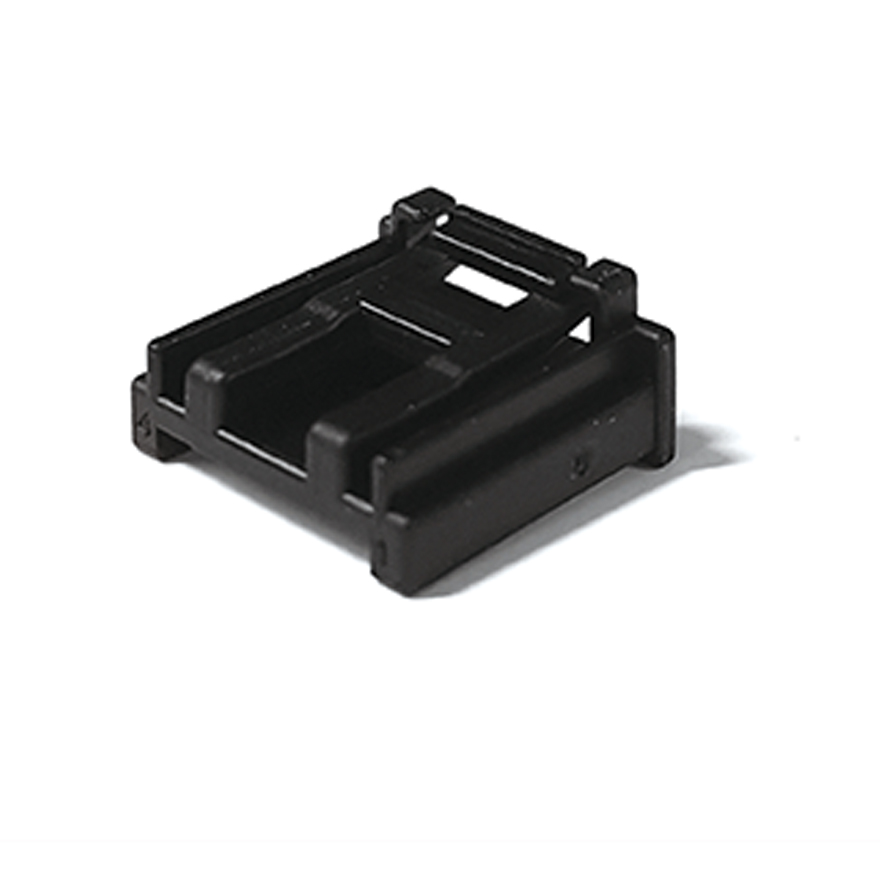

KH1600023-20

FFC 4Pin Female Connector Black

PRODUCT DESCRIPTION


Technical Details

  • Pitch(mm) 1.3
  • Gender Female Connectors
  • Connector Style
  • Number of Positions 4
  • Current Rating(A) 5
  • Contact Resistance
    (MΩ (Max.))
    10
  • Insulation Resistance
    (MΩ (Min.))
    100
  • Dielectric Strength
    (AC V)
    1,000
  • Temperature Range
    (°C)
    -40 ~ +85
  • Reliability Test
    Specifications
    ES91500-03, GMW3191
  • Housing Material PA66-GF15
  • Housing Colour Black
  • Terminal Material
  • Housing Material UL
    Rating
    HB
  • Connector Size height
    (mm)
    5.00
  • Connector Size width
    (mm)
    10.50
  • Connector Size length
    (mm)
    9.00
  • Mated Size height
    (mm)
  • Mated Size width
    (mm)
  • Mated Size length
    (mm)
  • FILE NAME EXTENSION UPDATED DATE
  • KH1600023-20_2D PDF 01/2023 Download
  • KH1600023-20_3D STEP 01/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
  • ES91500-03_PVT PDF 02/2023 Download
  • GMW3191_PVT PDF 02/2023 Download
  • FILE NAME EXTENSION UPDATED DATE
